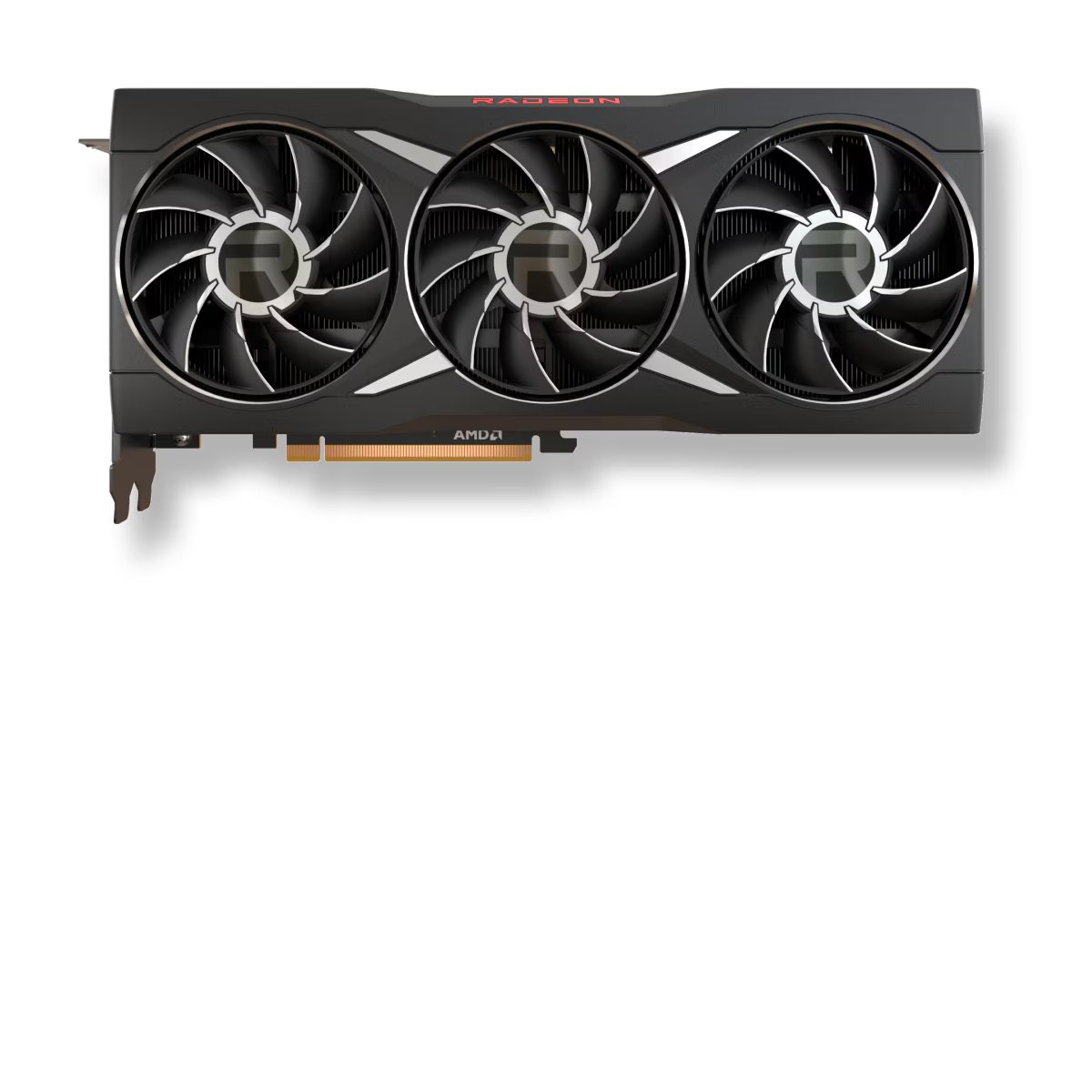

AMD Radeon RX 6950 XT
RX 6000 · Radeon RX 6950 XT · 2021
General
| Series | RX 6000 |
|---|---|
| Model | Radeon RX 6950 XT |
| Launch Year | 2021 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| VRAM | 16 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 256-bit |
Clocks and Power
| Base Clock | 1900 MHz |
|---|---|
| Boost Clock | 2310 MHz |
| TDP | 335 W |
| Power Connector | 8-pin |
| Connector Count | 2 |
Physical
| Length | 267 mm |
|---|---|
| Width | 50 mm |
| Height | 120 mm |
| Slot Width | 2.5 slot |
| Fan Count | 3 |
| Liquid Cooled | No |
Connectivity
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
| Display Outputs | hdmi: 1, displayport: 2 |
