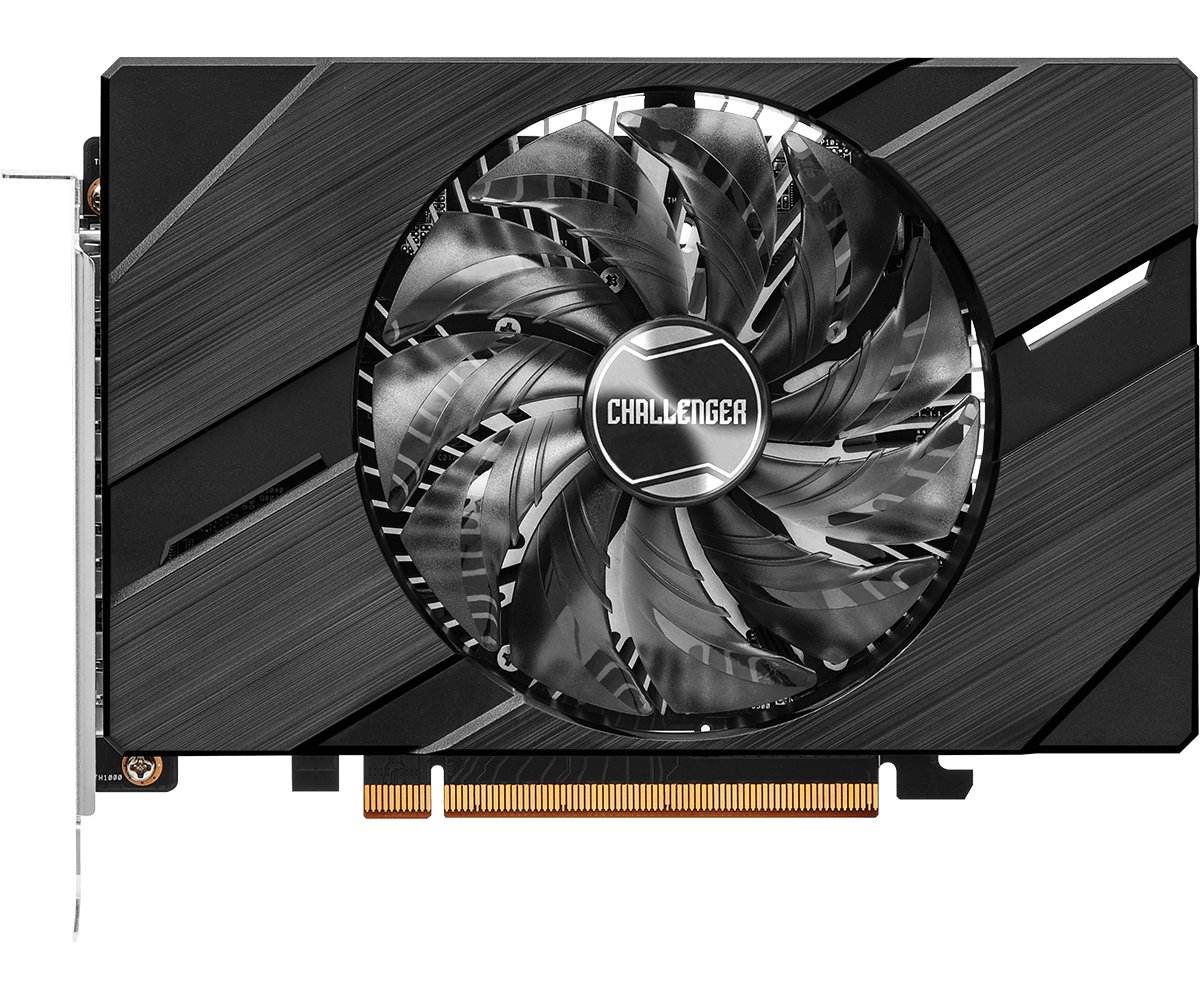

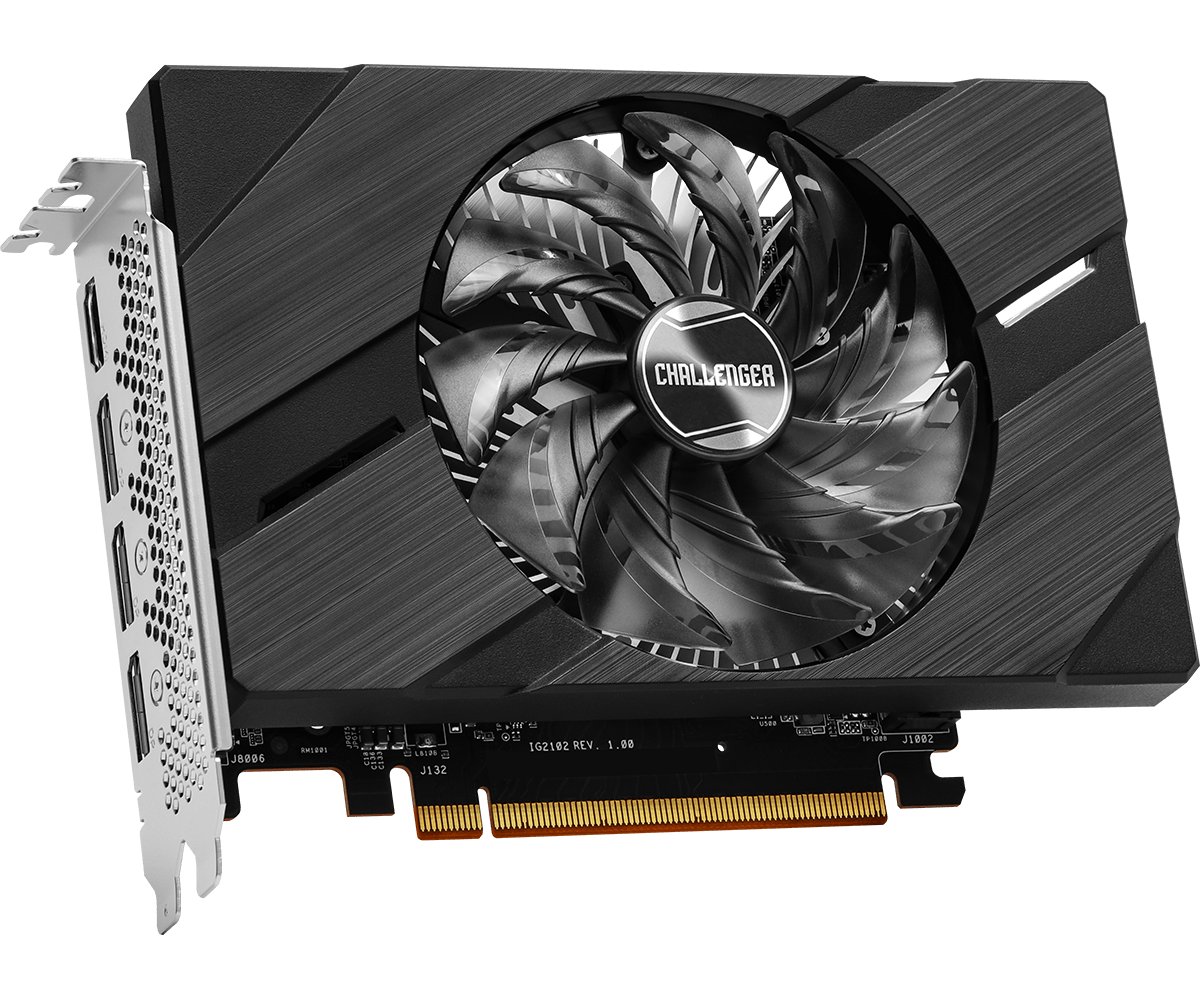

ASRock Arc A380 Challenger ITX OC
Arc A · Arc A380 Challenger ITX OC · Arc A380
General
| Series | Arc A |
|---|---|
| Model | Arc A380 Challenger ITX OC |
| Chip | Arc A380 |
| Launch Year | 2022 |
| Release Date | 6/14/2022 |
| Launch MSRP | $139 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Xe-HPG |
|---|---|
| GPU Die | DG2-128 (ACM-G11) |
| Foundry | TSMC · 6 nm |
| Transistors | 7.2 billion |
| Die Size | 157 mm² |
Cores
| Shading Units | 1024 |
|---|---|
| TMUs | 64 |
| ROPs | 32 |
| SM / CU | 128 |
| Tensor Cores | 128 |
| RT Cores | 8 |
| L2 Cache | 4 MB |
Memory
| VRAM | 6 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 96-bit |
| Memory Speed | 16 Gbps |
Clocks and Power
| Base Clock | 2250 MHz |
|---|---|
| Boost Clock | 2250 MHz |
| TDP | 75 W |
| Power Connector | 8-pin |
| Recommended PSU | 250 W |
Compute (TFLOPS)
| FP32 | 4.2 TFLOPS |
|---|---|
| FP16 | 8.4 TFLOPS |
| FP64 | 1.05 TFLOPS |

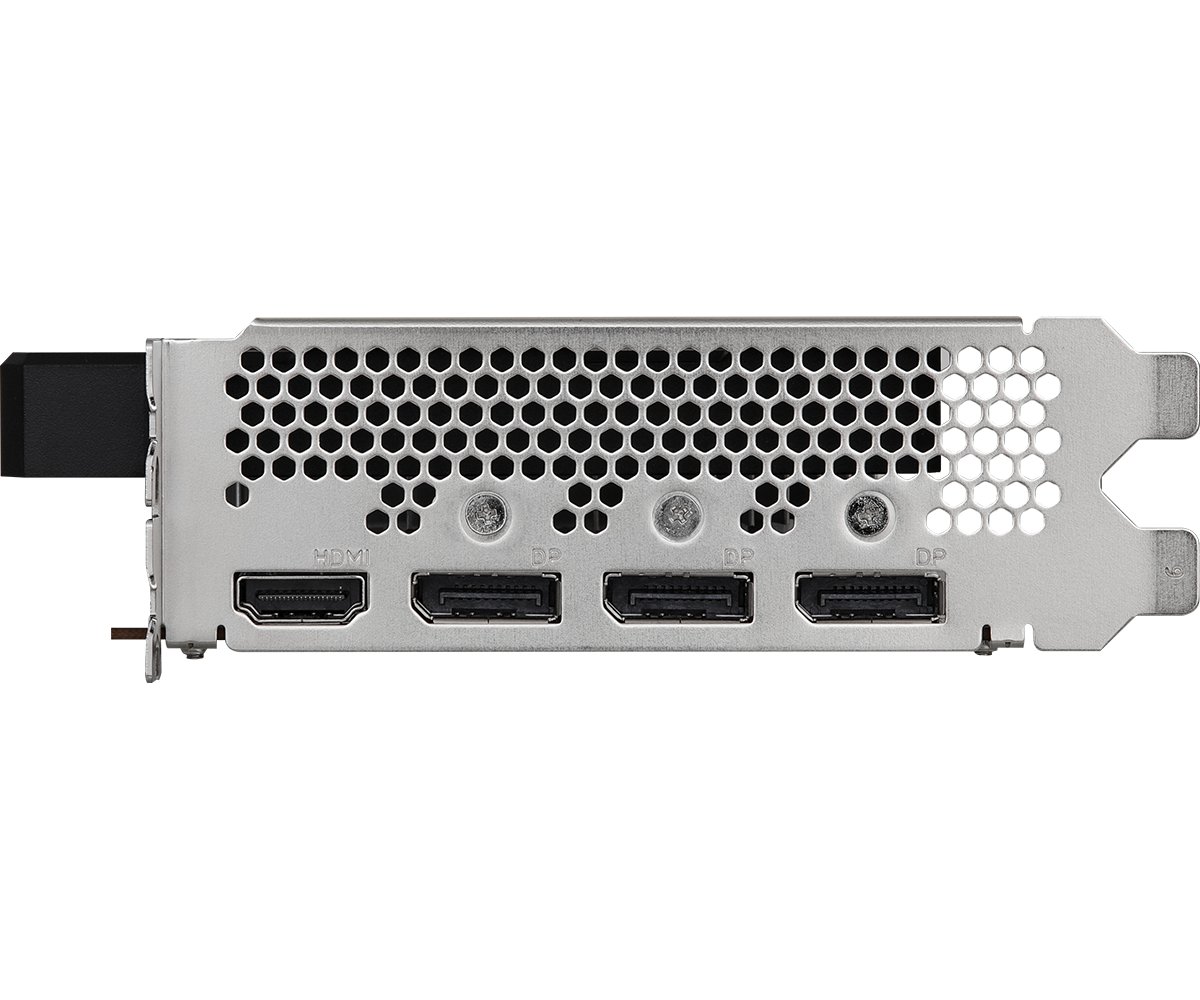

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 1 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 190 mm |
|---|---|
| Width | 39 mm |
| Height | 124 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x8 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.6 |
|---|
