ASRock Phantom D RX 5700 XT OC
RX 5000 · Phantom D RX 5700 XT OC · 2019
General
| Series | RX 5000 |
|---|---|
| Model | Phantom D RX 5700 XT OC |
| Launch Year | 2019 |
| Launch MSRP | $399 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 256-bit |
Clocks and Power
| Base Clock | 1690 MHz |
|---|---|
| Boost Clock | 1945 MHz |
| TDP | 225 W |
| Power Connector | 8-pin |
| Connector Count | 2 |
Physical
| Length | 287 mm |
|---|---|
| Width | 53 mm |
| Height | 127 mm |
| Slot Width | 3 slot |
| Fan Count | 3 |
| Liquid Cooled | No |
Connectivity
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |

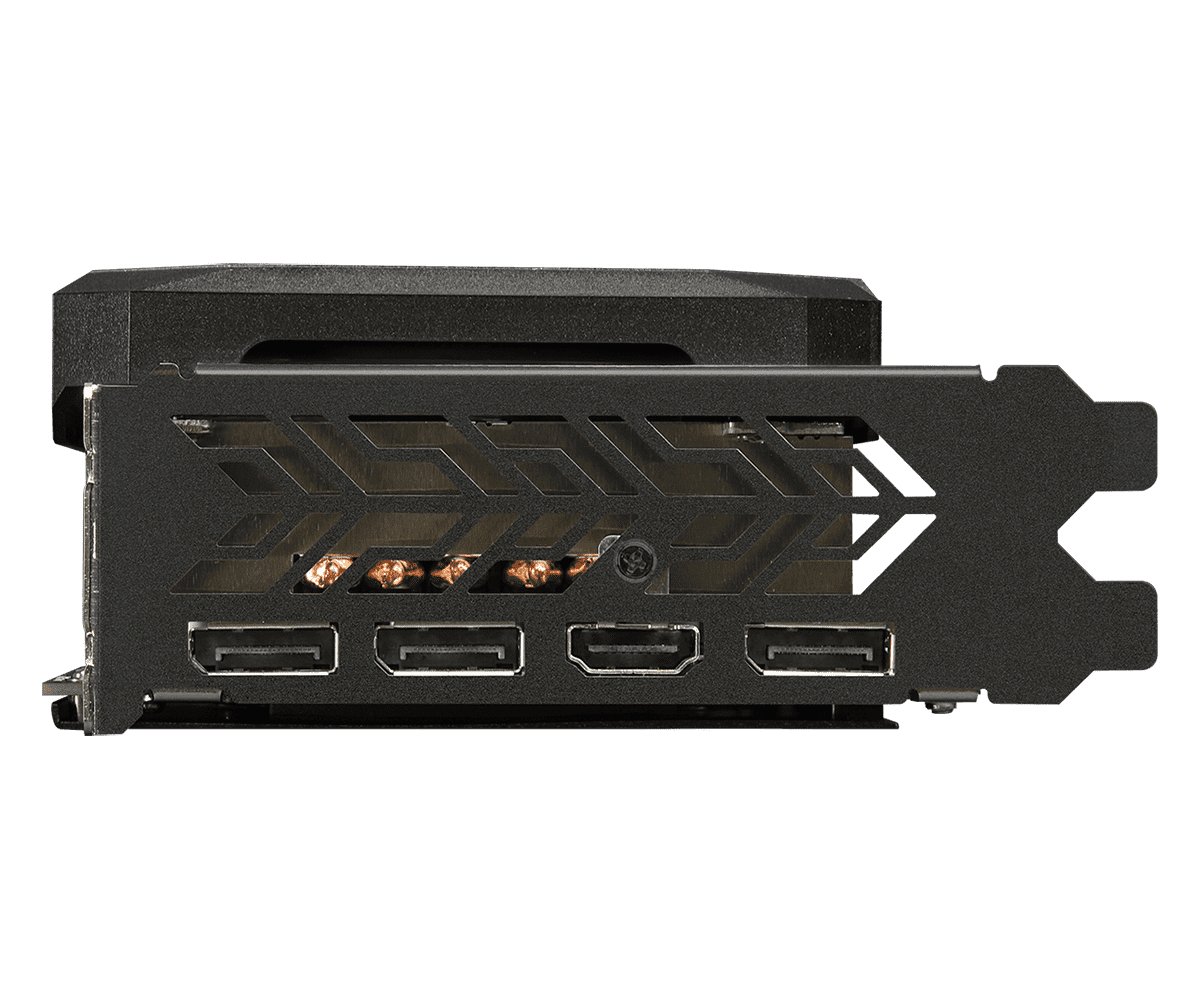

| Display Outputs | hdmi: 1, displayport: 3 |
