ASRock RX 6500 XT Challenger ITX
RX 6000 · RX 6500 XT Challenger ITX · RX 6500 XT
General
| Series | RX 6000 |
|---|---|
| Model | RX 6500 XT Challenger ITX |
| Chip | RX 6500 XT |
| Launch Year | 2021 |
| Release Date | 1/19/2022 |
| Launch MSRP | $199 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 2.0 |
|---|---|
| GPU Die | Navi 24 (Navi 24 XT) |
| Foundry | TSMC · 6 nm |
| Transistors | 5.4 billion |
| Die Size | 107 mm² |
Cores
| Shading Units | 1024 |
|---|---|
| TMUs | 64 |
| ROPs | 32 |
| SM / CU | 16 |
| RT Cores | 16 |
| L2 Cache | 1 MB |
Memory
| VRAM | 4 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 64-bit |
| Memory Speed | 18 Gbps |
Clocks and Power
| Base Clock | 2310 MHz |
|---|---|
| Boost Clock | 2815 MHz |
| TDP | 107 W |
| Power Connector | 8-pin |
| Recommended PSU | 300 W |
Compute (TFLOPS)
| FP32 | 5.77 TFLOPS |
|---|---|
| FP16 | 11.53 TFLOPS |
| FP64 | 0.36 TFLOPS |

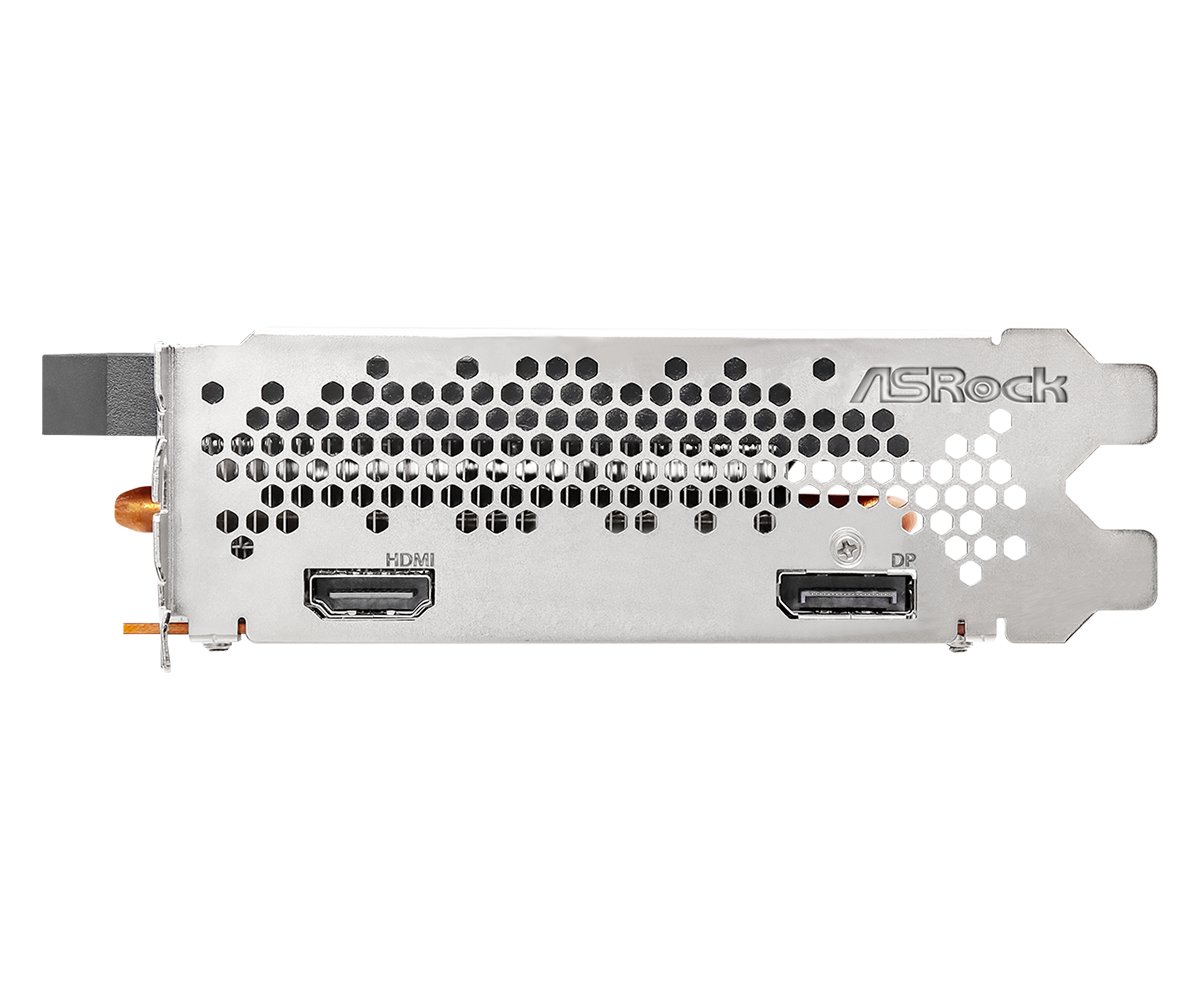

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
Cooling
| Fan Count | 1 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 179 mm |
|---|---|
| Width | 40 mm |
| Height | 124 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x4 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 2.2 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | VCN 3.0 |
| Decoding | H.265 H.264 VP9 |
