ASRock RX 7600 XT Challenger OC
RX 7000 · RX 7600 XT Challenger OC · RX 7600 XT
General
| Series | RX 7000 |
|---|---|
| Model | RX 7600 XT Challenger OC |
| Chip | RX 7600 XT |
| Launch Year | 2023 |
| Release Date | 1/8/2024 |
| Launch MSRP | $329 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 3.0 |
|---|---|
| GPU Die | Navi 33 (Navi 33 XL) |
| Foundry | TSMC · 6 nm |
| Transistors | 13.3 billion |
| Die Size | 204 mm² |
Cores
| Shading Units | 2048 |
|---|---|
| TMUs | 128 |
| ROPs | 64 |
| SM / CU | 32 |
| Tensor Cores | 64 |
| RT Cores | 32 |
| L2 Cache | 2 MB |
Memory
| VRAM | 16 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Memory Speed | 18 Gbps |
Clocks and Power
| Base Clock | 1720 MHz |
|---|---|
| Boost Clock | 2799 MHz |
| TDP | 190 W |
| Power Connector | 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 22.57 TFLOPS |
|---|---|
| FP16 | 45.14 TFLOPS |
| FP64 | 0.71 TFLOPS |

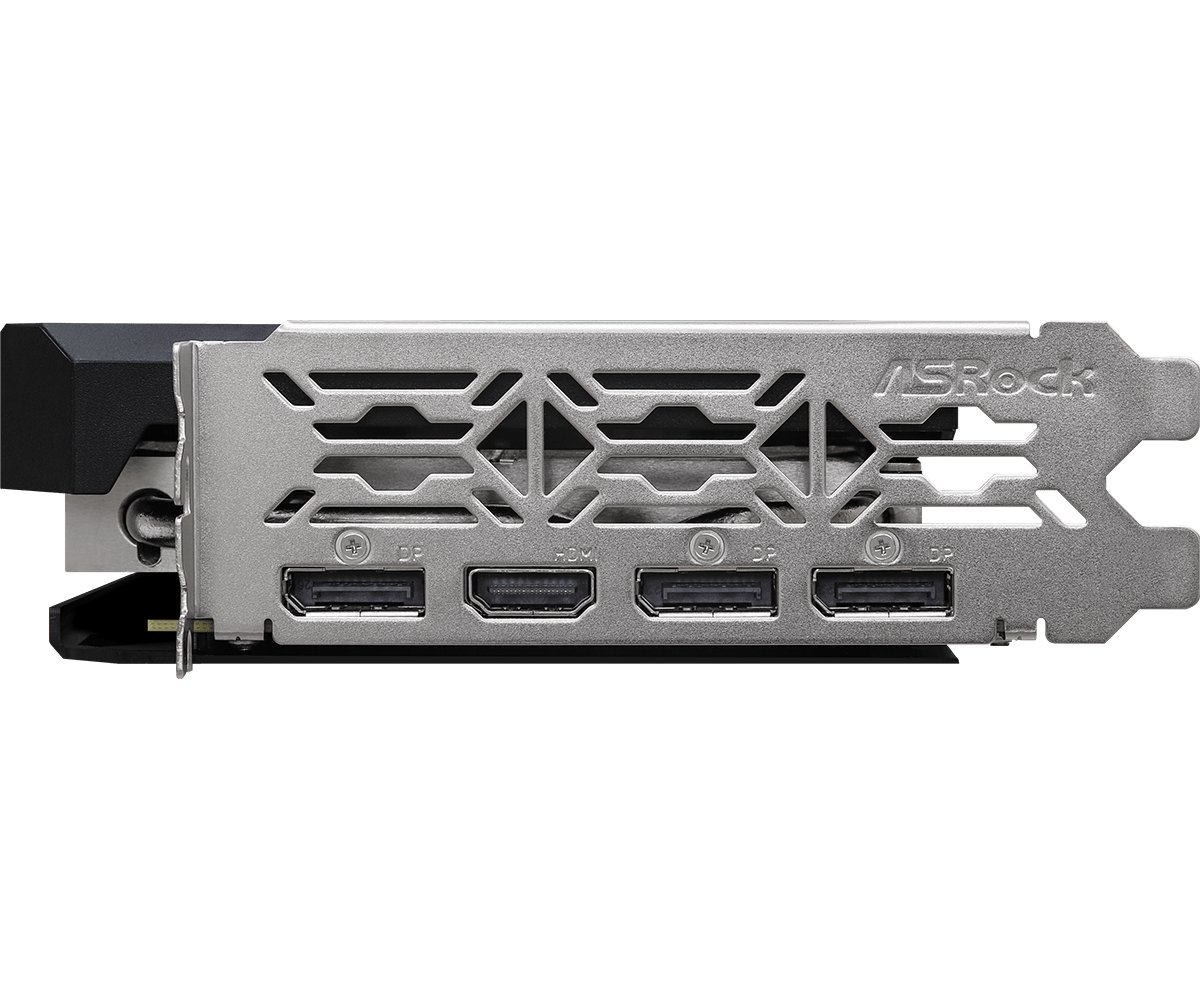

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 267 mm |
|---|---|
| Width | 41 mm |
| Height | 130 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x8 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 2.2 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | VCN 4.0 |
| Encoding | AV1 H.265 H.264 |
| Decoding | AV1 H.265 H.264 VP9 |
