ASUS DUAL RTX 2060 MINI OC

RTX 20 · DUAL RTX 2060 MINI OC · RTX 2060

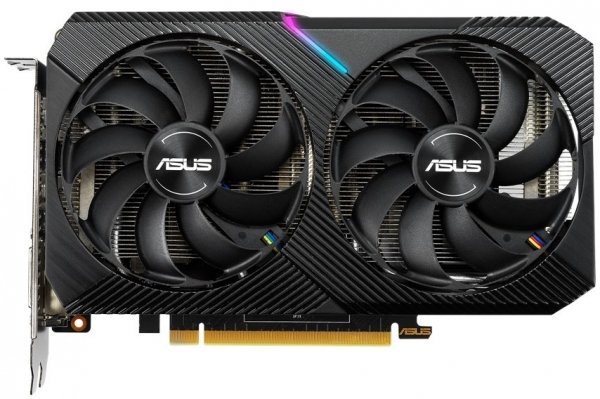

ASUS DUAL RTX 2060 MINI OC product image

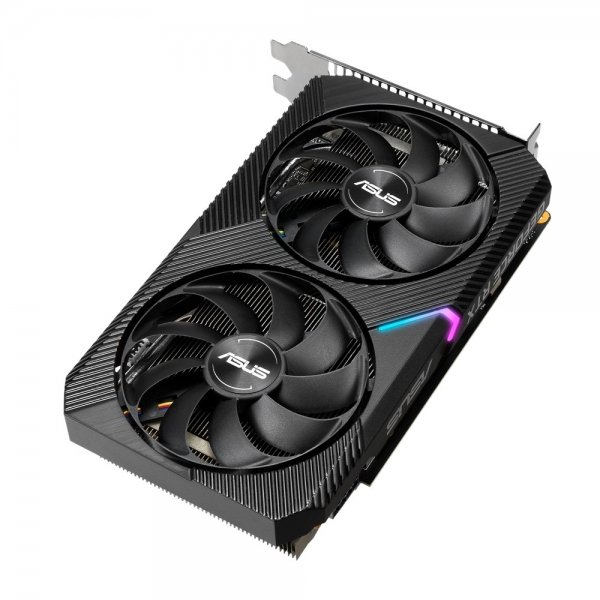

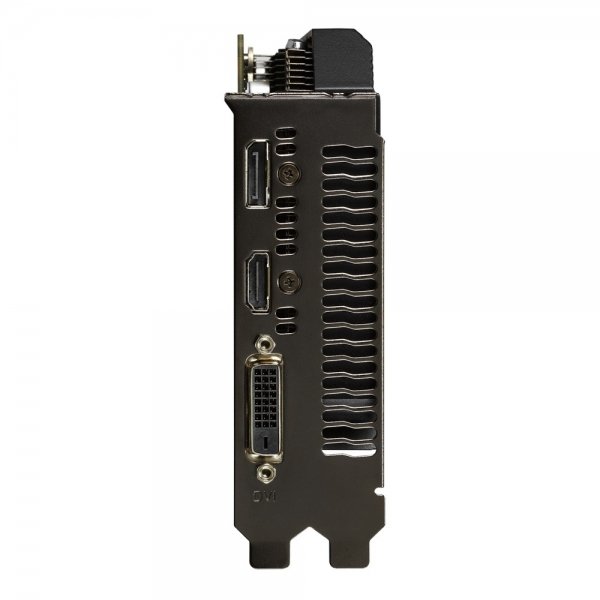

ASUS DUAL RTX 2060 MINI OC product image 1ASUS DUAL RTX 2060 MINI OC product image 2ASUS DUAL RTX 2060 MINI OC product image 3

General

SeriesRTX 20
ModelDUAL RTX 2060 MINI OC
ChipRTX 2060
Launch Year2019
Release Date1/7/2019
Launch MSRP$349
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU106 (TU106-200A-KA-A1)
FoundryTSMC · 12 nm
Transistors10.8 billion
Die Size445 mm²

Cores

Shading Units1920
TMUs120
ROPs48
SM / CU30
Tensor Cores240
RT Cores30
L2 Cache3 MB

Memory

VRAM6 GB
Memory TypeGDDR6
Memory Bus192-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1365 MHz
Boost Clock1725 MHz
TDP160 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP326.45 TFLOPS
FP1612.9 TFLOPS
FP640.2 TFLOPS

Display Outputs

HDMI1×
DisplayPort1×
DVI1×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length197 mm
Width39 mm
Height121 mm
Slot Width2 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 7.5
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (6th Gen)
1x NVDEC (4th Gen)
Encoding
H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K)
H.264 (YUV 4:2:0, YUV 4:4:4, Lossless)
Decoding
H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10bit)
VP8
VC-1
MPEG-2
MPEG-1
