ASUS DUAL RTX 2060 SUPER EVO OC

RTX 20 · DUAL RTX 2060 SUPER EVO OC · RTX 2060 SUPER

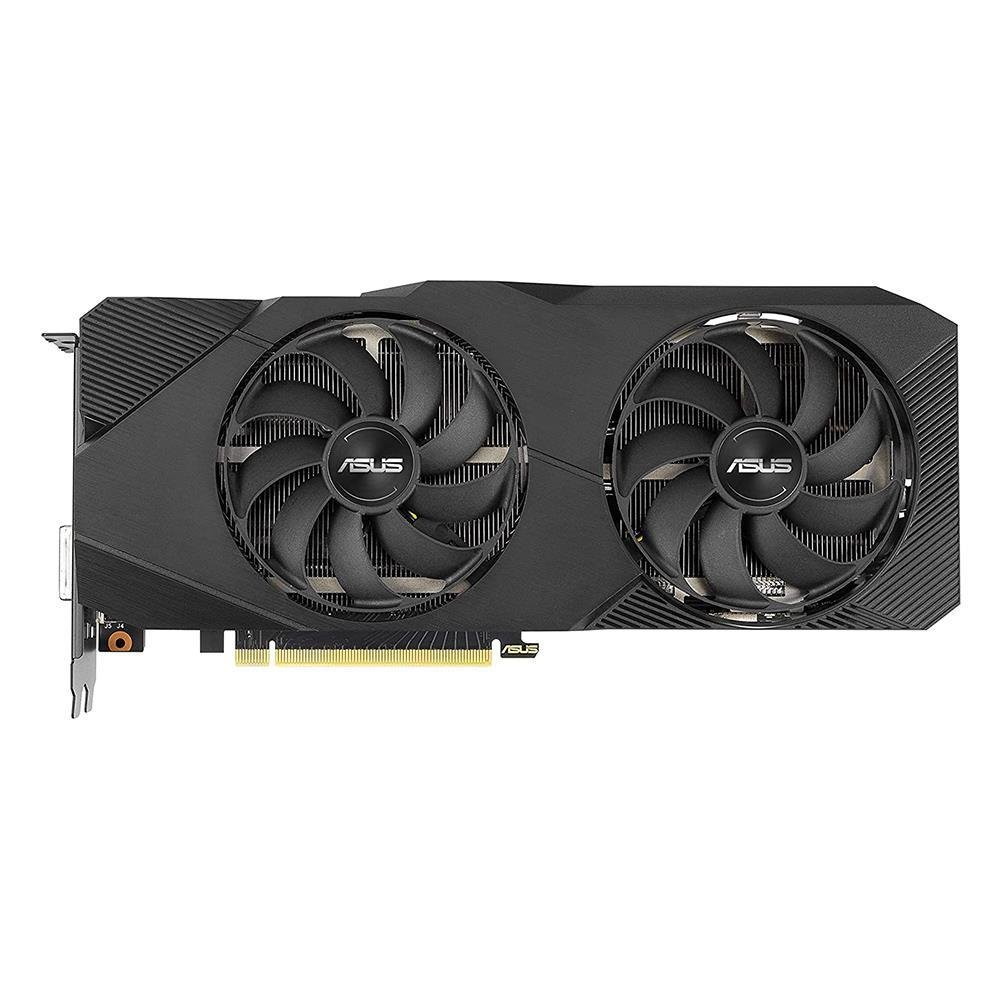

ASUS DUAL RTX 2060 SUPER EVO OC product image

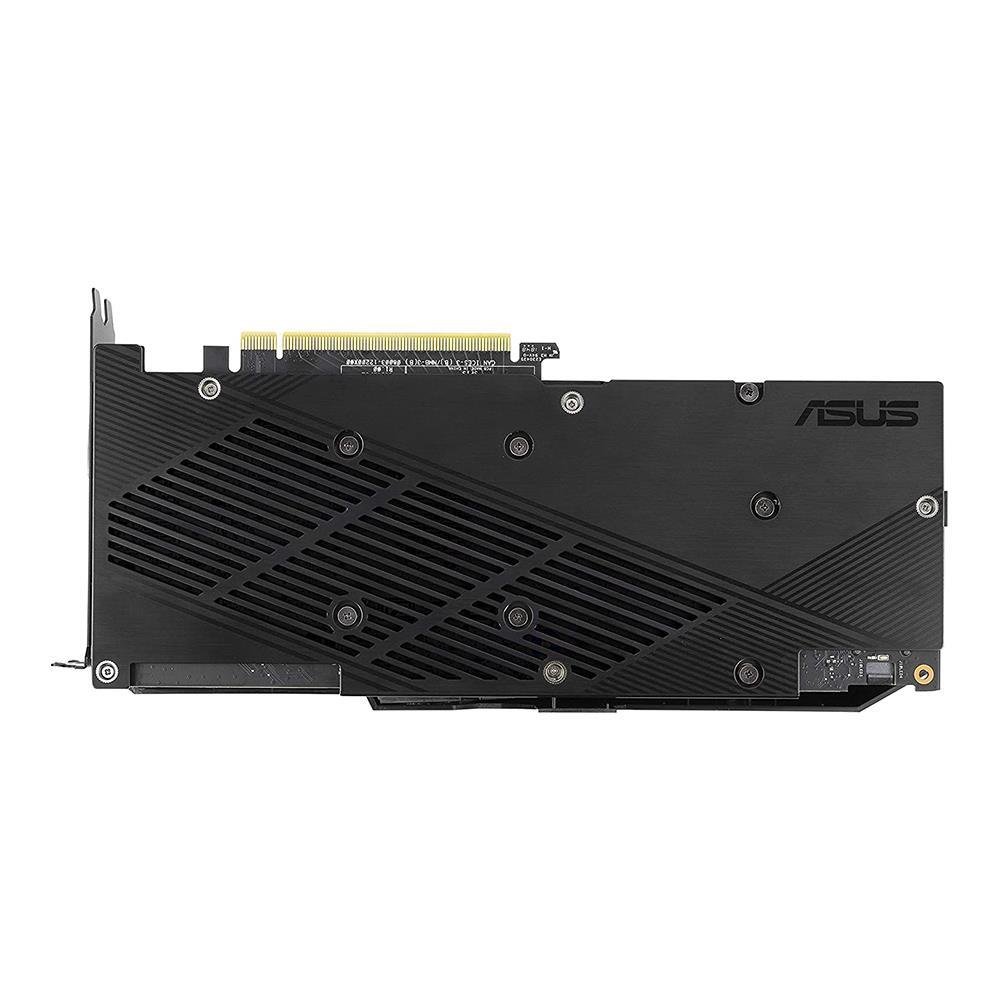

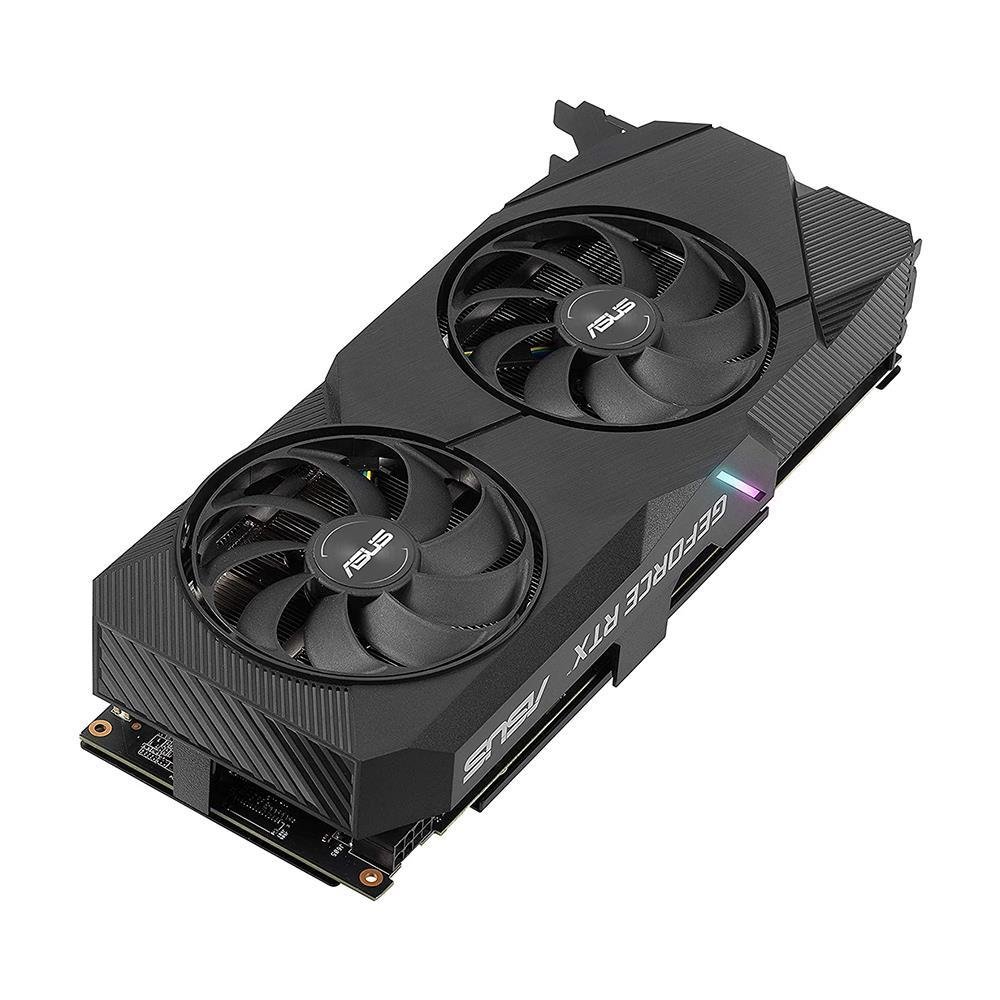

ASUS DUAL RTX 2060 SUPER EVO OC product image 1ASUS DUAL RTX 2060 SUPER EVO OC product image 2ASUS DUAL RTX 2060 SUPER EVO OC product image 3

General

SeriesRTX 20
ModelDUAL RTX 2060 SUPER EVO OC
ChipRTX 2060 SUPER
Launch Year2019
Release Date7/9/2019
Launch MSRP$399
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU106 (TU106-410-A1)
FoundryTSMC · 12 nm
Transistors10.8 billion
Die Size445 mm²

Cores

Shading Units2176
TMUs136
ROPs64
SM / CU34
Tensor Cores272
RT Cores34
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1470 MHz
Boost Clock1695 MHz
TDP175 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP327.18 TFLOPS
FP1614.36 TFLOPS
FP640.22 TFLOPS

Display Outputs

HDMI2×
DisplayPort2×
DVI1×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length267 mm
Width58 mm
Height118 mm
Slot Width3 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 7.5
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (6th Gen)
1x NVDEC (4th Gen)
Encoding
H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K)
H.264 (YUV 4:2:0, YUV 4:4:4, Lossless)
Decoding
H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10bit)
VP8
VC-1
MPEG-2
MPEG-1
