ASUS DUAL RTX 5060 Ti EVO OC Edition

RTX 50 · DUAL RTX 5060 Ti EVO OC Edition · RTX 5060 Ti

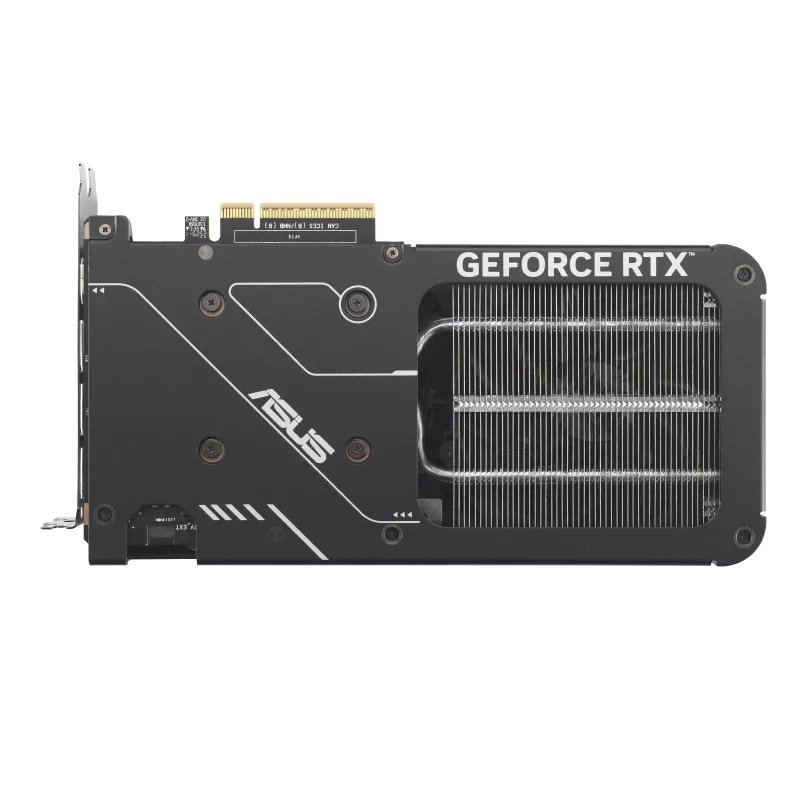

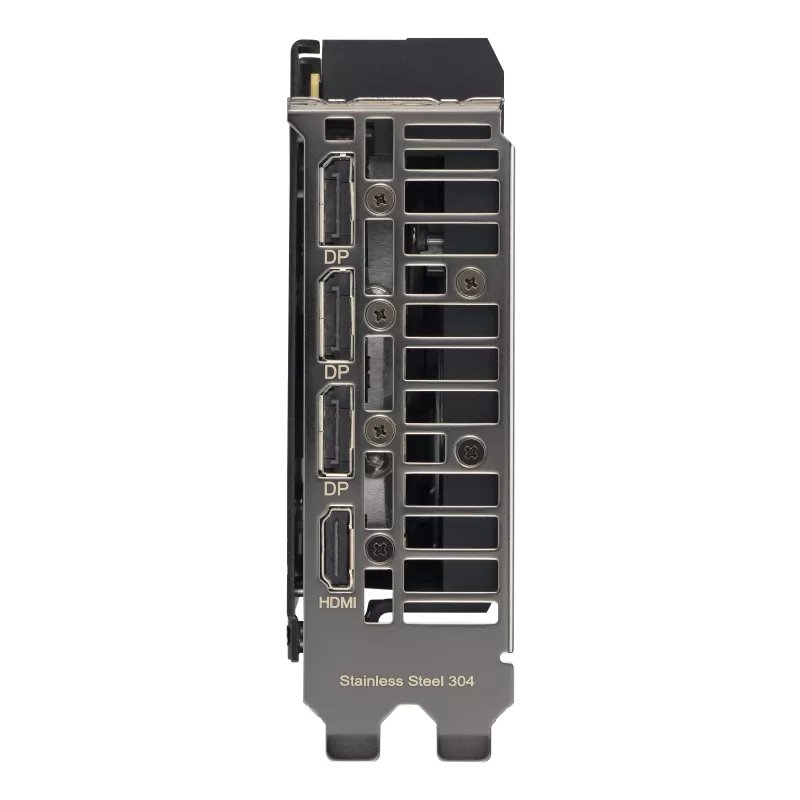

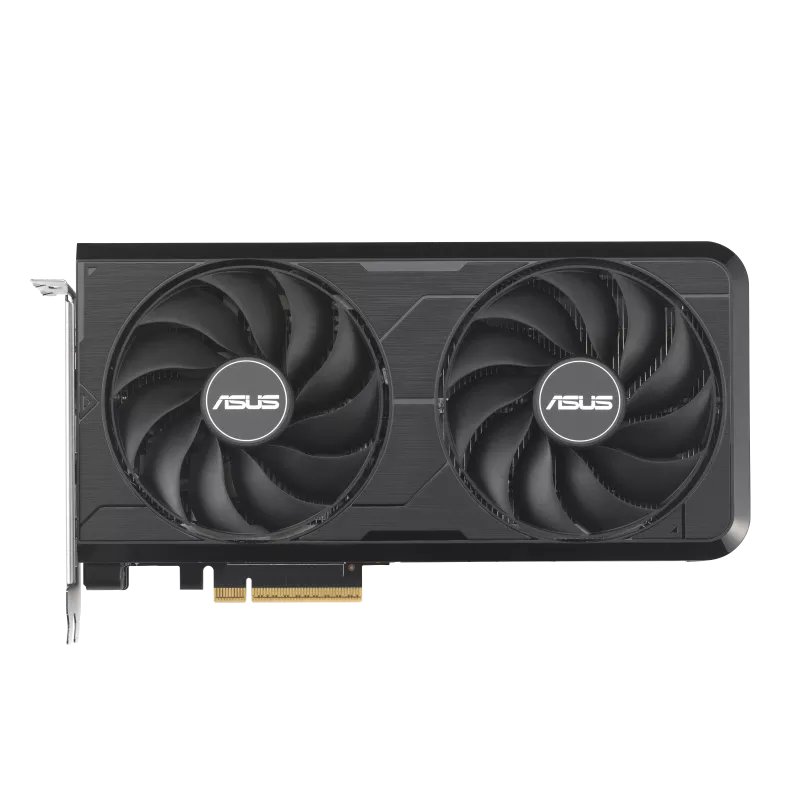

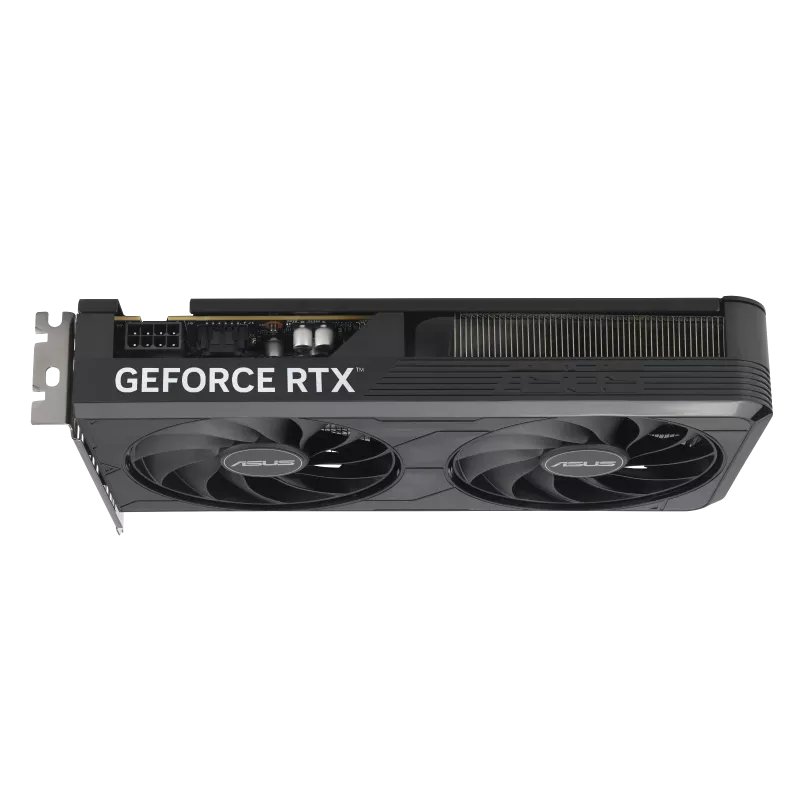

ASUS DUAL RTX 5060 Ti EVO OC Edition product image
ASUS DUAL RTX 5060 Ti EVO OC Edition product image 1ASUS DUAL RTX 5060 Ti EVO OC Edition product image 2ASUS DUAL RTX 5060 Ti EVO OC Edition product image 3ASUS DUAL RTX 5060 Ti EVO OC Edition product image 4

General

SeriesRTX 50
ModelDUAL RTX 5060 Ti EVO OC Edition
ChipRTX 5060 Ti
Launch Year2025
Release Date4/16/2025
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureBlackwell 2.0
GPU DieGB206 (GB206-300-A1)
FoundryTSMC · 5 nm
Transistors21.9 billion
Die Size181 mm²

Cores

Shading Units4608
TMUs144
ROPs48
SM / CU36
Tensor Cores144
RT Cores36
L2 Cache32 MB

Memory

VRAM8 GB
Memory TypeGDDR7
Memory Bus128-bit
Memory Speed28 Gbps

Clocks and Power

Base Clock2407 MHz
Boost Clock2602 MHz
TDP180 W
Power Connector8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP3223.7 TFLOPS
FP1623.7 TFLOPS
FP640.37 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length225 mm
Width42 mm
Height120 mm
Slot Width2 slot

Interface

PCIe Version5.0
PCIe Lanesx8

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 12.0
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (9th Gen)
1x NVDEC (6th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4)
H.264 (8/10bit 4:2:0, 8/10bit 4:2:2)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
