ASUS DUAL RTX 5070

RTX 50 · DUAL RTX 5070 · RTX 5070

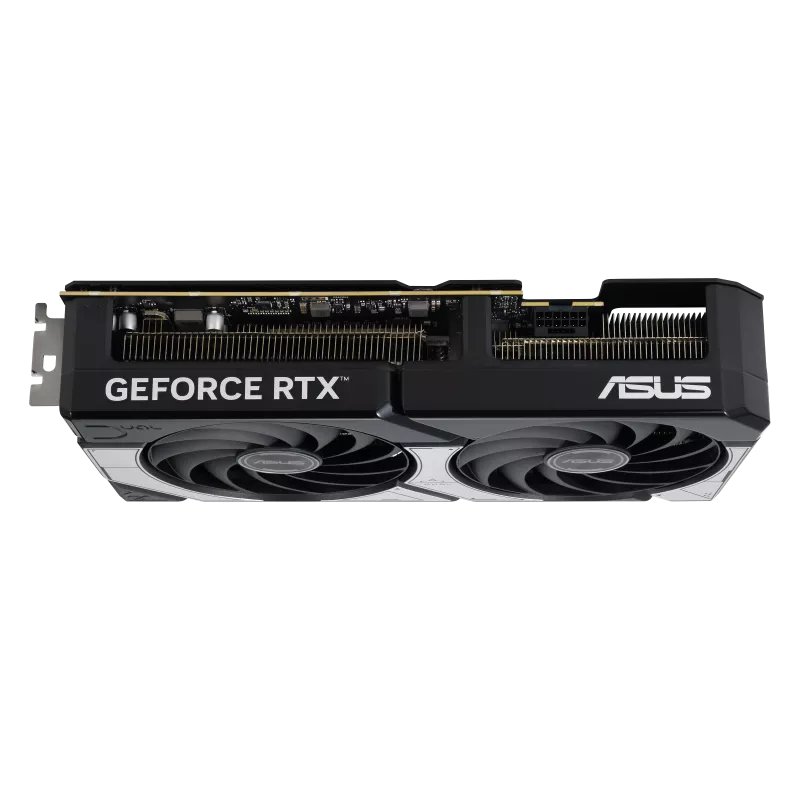

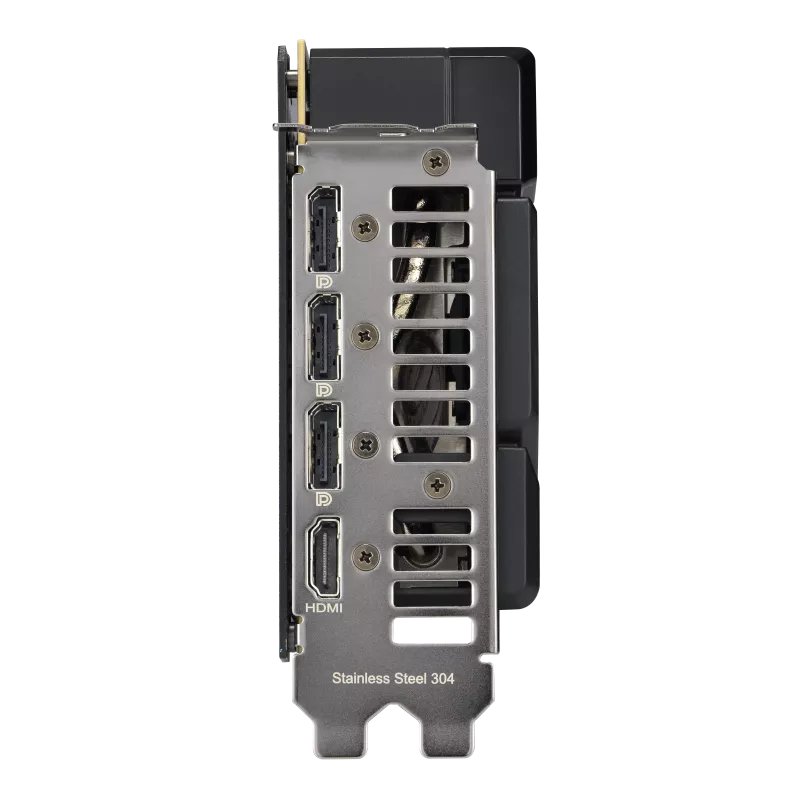

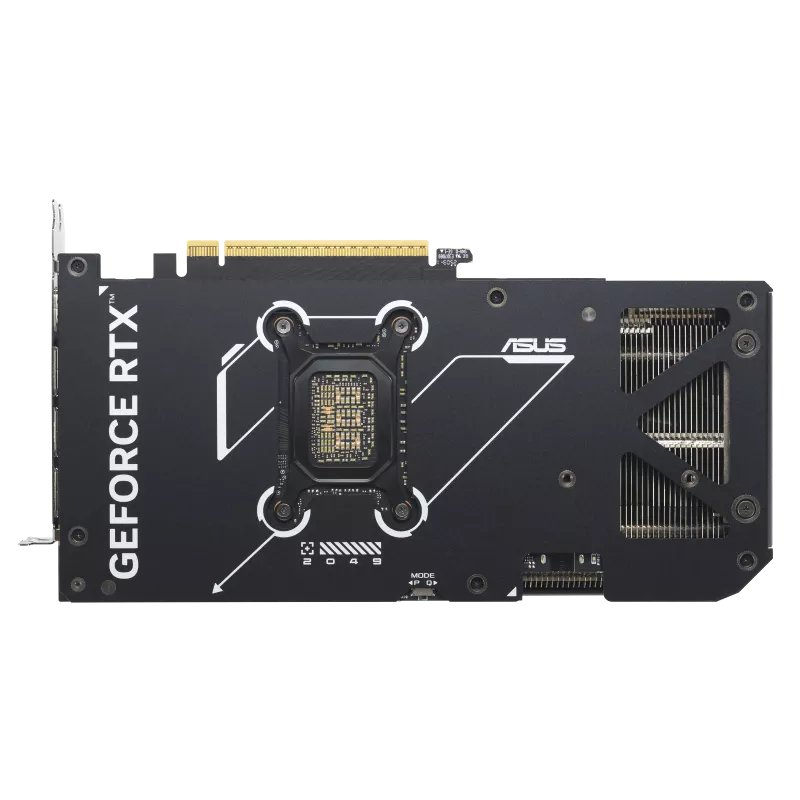

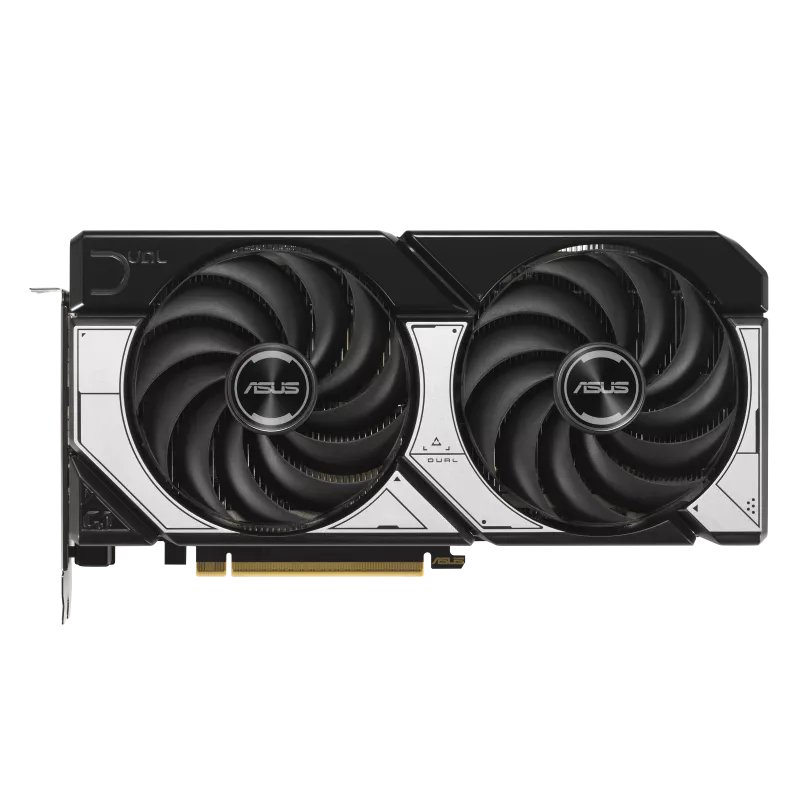

ASUS DUAL RTX 5070 product image
ASUS DUAL RTX 5070 product image 1ASUS DUAL RTX 5070 product image 2ASUS DUAL RTX 5070 product image 3ASUS DUAL RTX 5070 product image 4

General

SeriesRTX 50
ModelDUAL RTX 5070
ChipRTX 5070
Launch Year2025
Release Date3/4/2025
Launch MSRP$549
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureBlackwell 2.0
GPU DieGB205 (GB205-300-A1)
FoundryTSMC · 5 nm
Transistors31.1 billion
Die Size263 mm²

Cores

Shading Units6144
TMUs192
ROPs80
SM / CU48
Tensor Cores192
RT Cores48
L2 Cache48 MB

Memory

VRAM12 GB
Memory TypeGDDR7
Memory Bus192-bit
Memory Speed28 Gbps

Clocks and Power

Base Clock2325 MHz
Boost Clock2512 MHz
TDP250 W
Power Connector12V-2x6
Recommended PSU650 W

Compute (TFLOPS)

FP3230.72 TFLOPS
FP1630.72 TFLOPS
FP640.48 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length249 mm
Width51 mm
Height126 mm
Slot Width2.5 slot

Interface

PCIe Version5.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 12.8
Vulkan 1.3
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
Hardware Encoder
1x NVENC (9th Gen, max 8 sessions)
1x NVDEC (6th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4)
H.264 (8/10bit 4:2:0, 8/10bit 4:2:2)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
