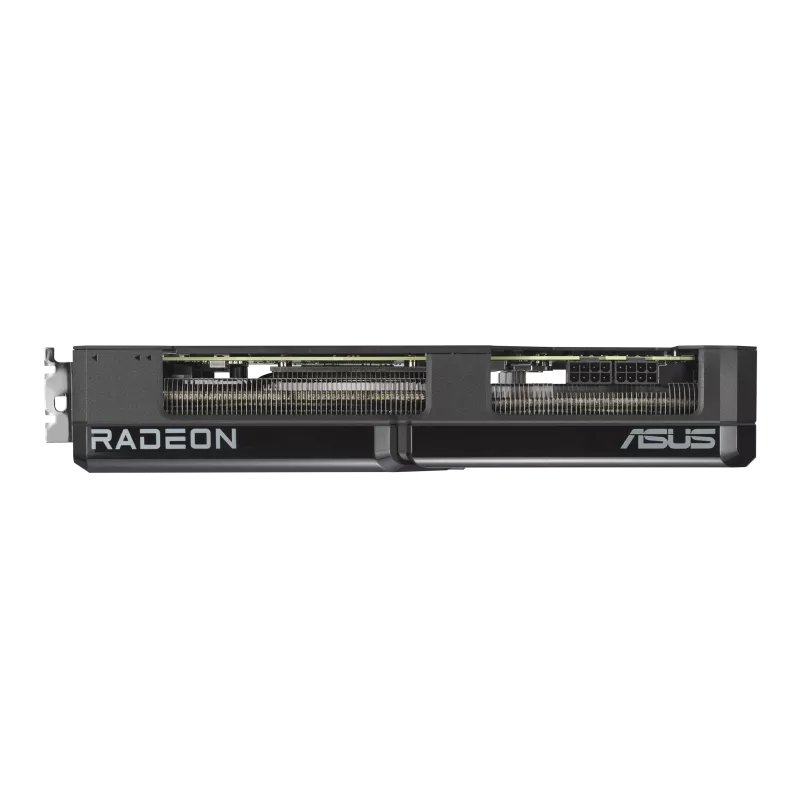

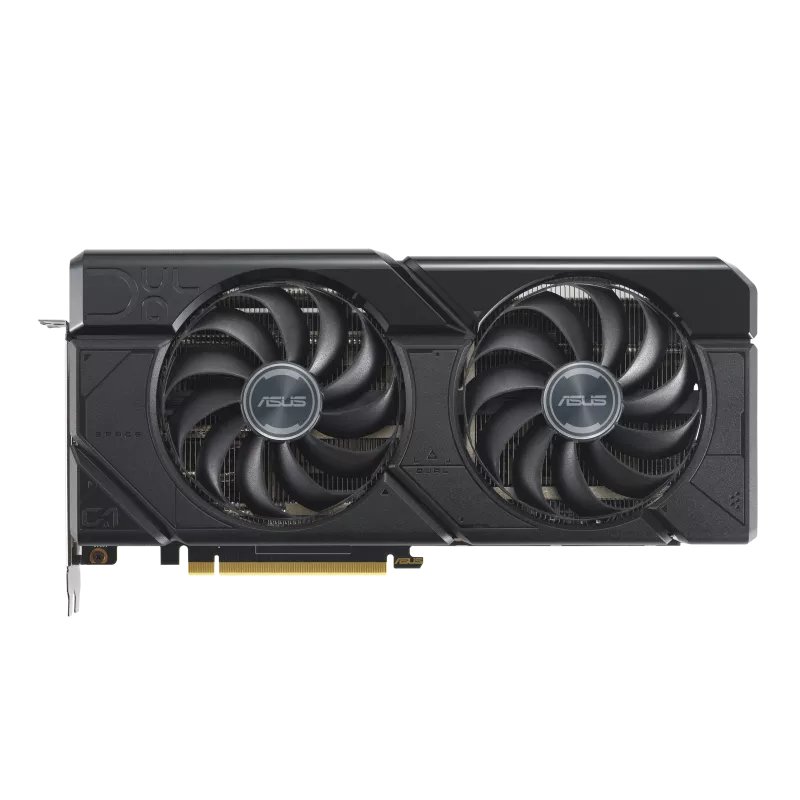

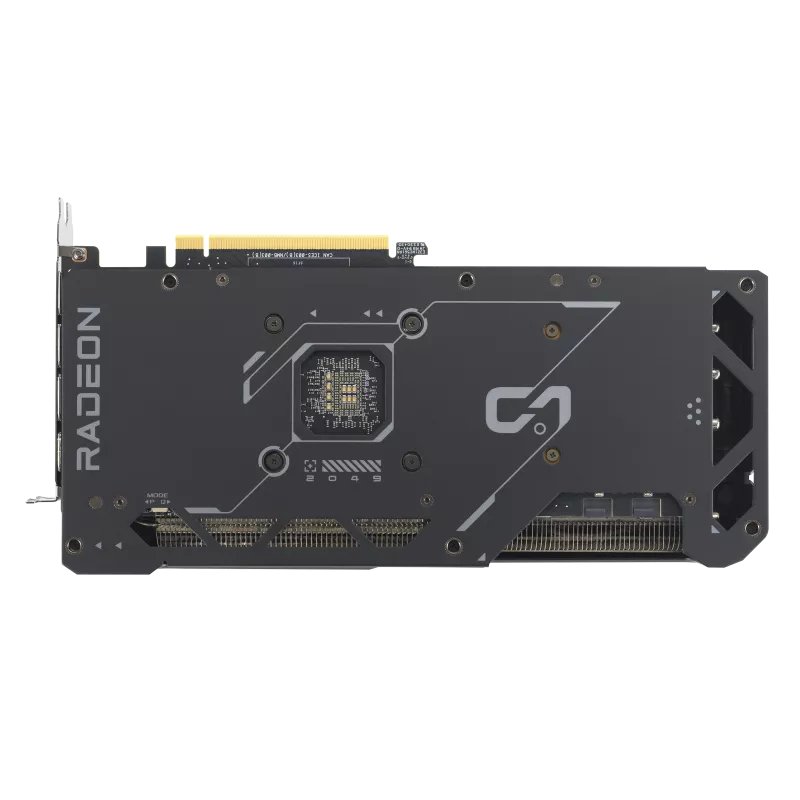

ASUS DUAL RX 7700 XT OC
RX 7000 · DUAL RX 7700 XT OC · RX 7700 XT
General
| Series | RX 7000 |
|---|---|
| Model | DUAL RX 7700 XT OC |
| Chip | RX 7700 XT |
| Launch Year | 2023 |
| Release Date | 8/25/2023 |
| Launch MSRP | $449 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 3.0 |
|---|---|
| GPU Die | Navi 32 (Navi 32 XL) |
| Foundry | TSMC · 5 nm |
| Transistors | 28.1 billion |
| Die Size | 346 mm² |
Cores
| Shading Units | 3456 |
|---|---|
| TMUs | 216 |
| ROPs | 96 |
| SM / CU | 54 |
| Tensor Cores | 108 |
| RT Cores | 54 |
| L2 Cache | 2 MB |
Memory
| VRAM | 12 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 192-bit |
| Memory Speed | 18 Gbps |
Clocks and Power
| Base Clock | 1900 MHz |
|---|---|
| Boost Clock | 2584 MHz |
| TDP | 245 W |
| Power Connector | 8-pin |
| Recommended PSU | 550 W |
Compute (TFLOPS)
| FP32 | 35.17 TFLOPS |
|---|---|
| FP16 | 70.34 TFLOPS |
| FP64 | 1.1 TFLOPS |

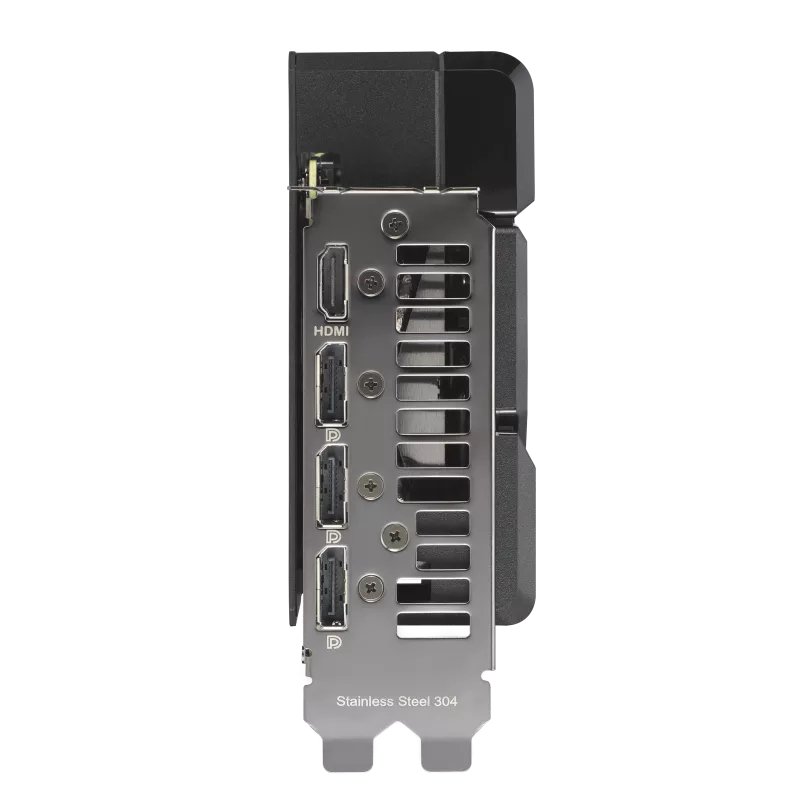

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 280 mm |
|---|---|
| Width | 49 mm |
| Height | 134 mm |
| Slot Width | 2.5 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x8 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 2.2 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | VCN 4.0 |
| Encoding | AV1 H.265 H.264 |
| Decoding | AV1 H.265 H.264 VP9 |
