ASUS EXPEDITION GTX 1050 Ti OC
GTX 10 · EXPEDITION GTX 1050 Ti OC · GTX 1050 Ti
General
| Series | GTX 10 |
|---|---|
| Model | EXPEDITION GTX 1050 Ti OC |
| Chip | GTX 1050 Ti |
| Launch Year | 2016 |
| Release Date | 10/25/2016 |
| Launch MSRP | $139 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Pascal |
|---|---|
| GPU Die | GP107 (GP107-400-A1) |
| Foundry | Samsung · 14 nm |
| Transistors | 3.3 billion |
| Die Size | 132 mm² |
Cores
| Shading Units | 768 |
|---|---|
| TMUs | 48 |
| ROPs | 32 |
| SM / CU | 6 |
| L2 Cache | 1 MB |
Memory
| VRAM | 4 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 128-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 1341 MHz |
|---|---|
| Boost Clock | 1455 MHz |
| TDP | 75 W |
| Recommended PSU | 250 W |
Compute (TFLOPS)
| FP32 | 2.14 TFLOPS |
|---|---|
| FP16 | 0.03 TFLOPS |
| FP64 | 0.07 TFLOPS |

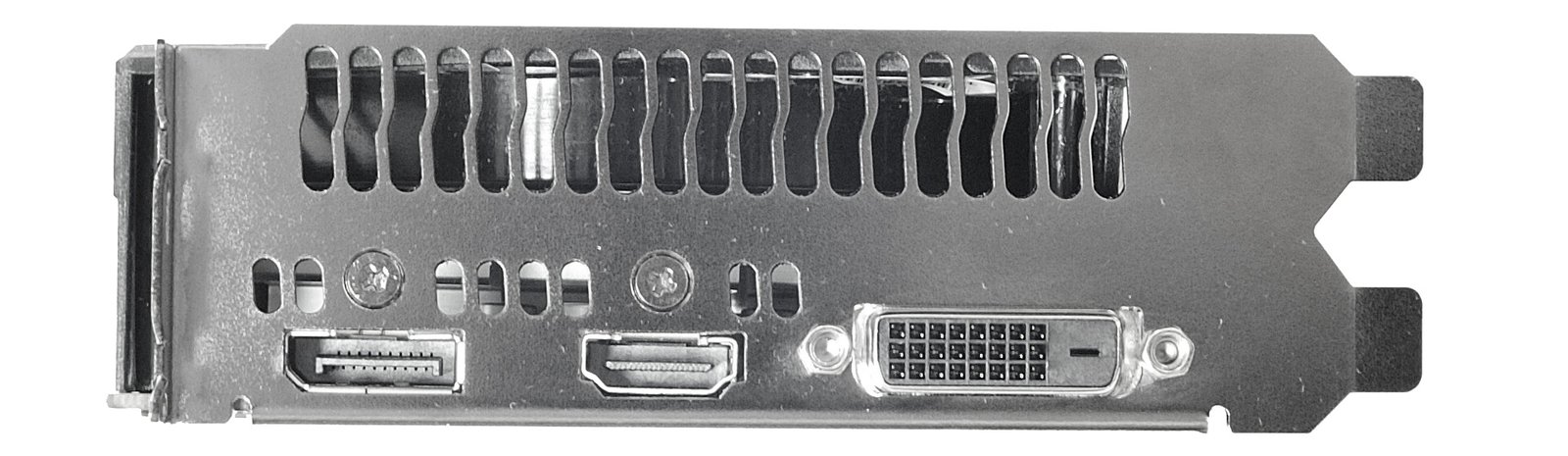

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
| DVI | 1× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 212 mm |
|---|---|
| Width | 38 mm |
| Height | 111 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|
