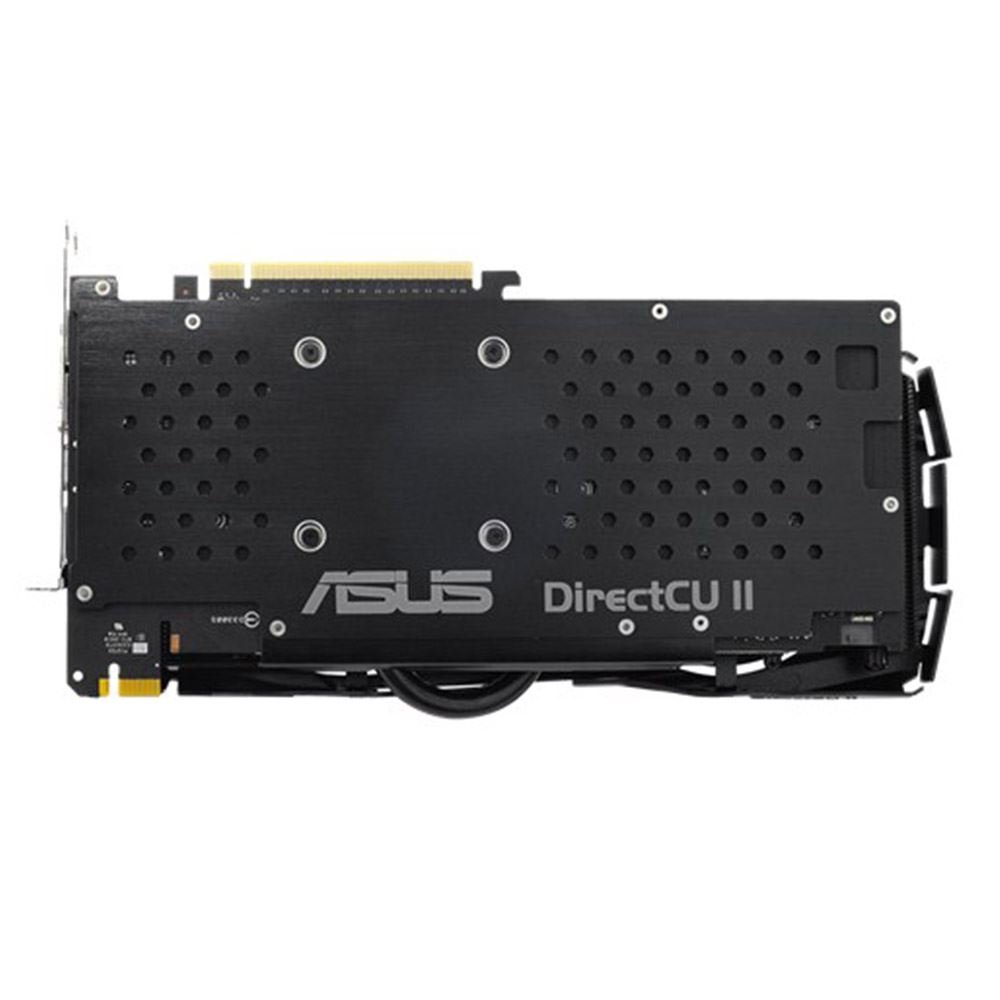

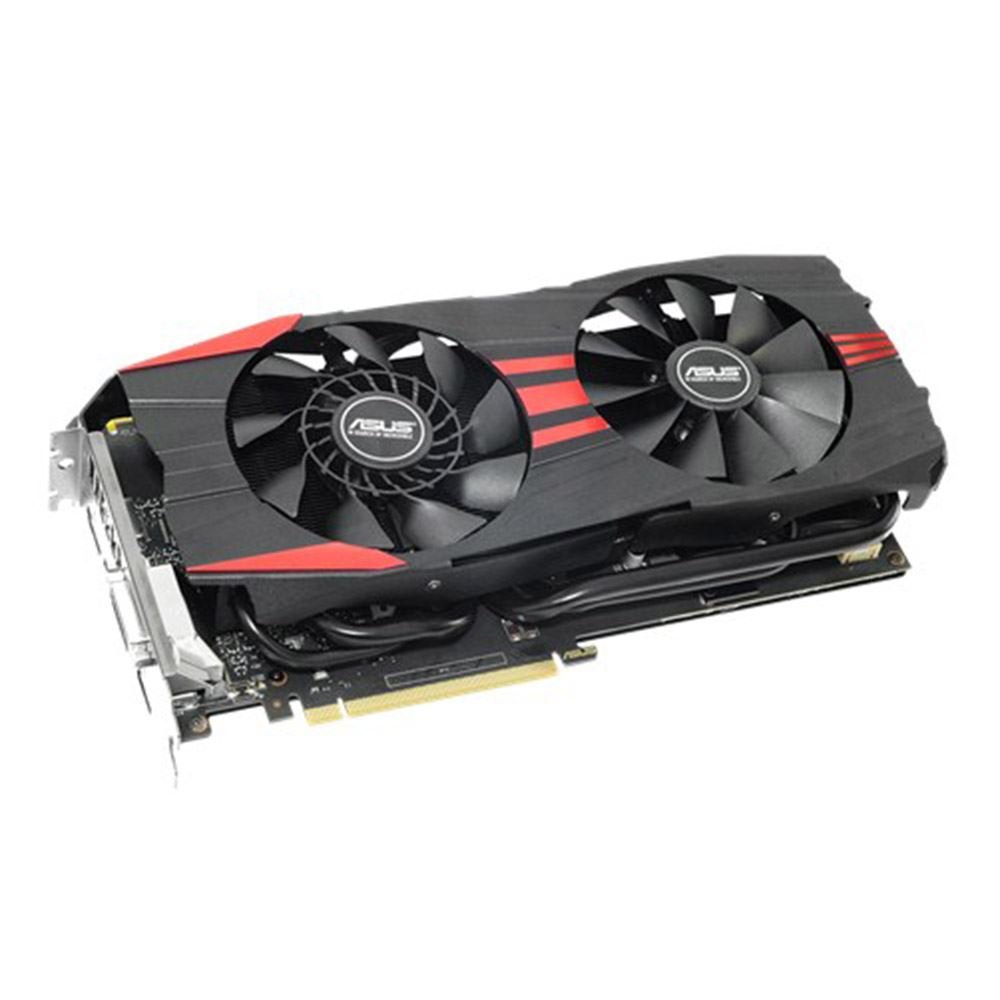

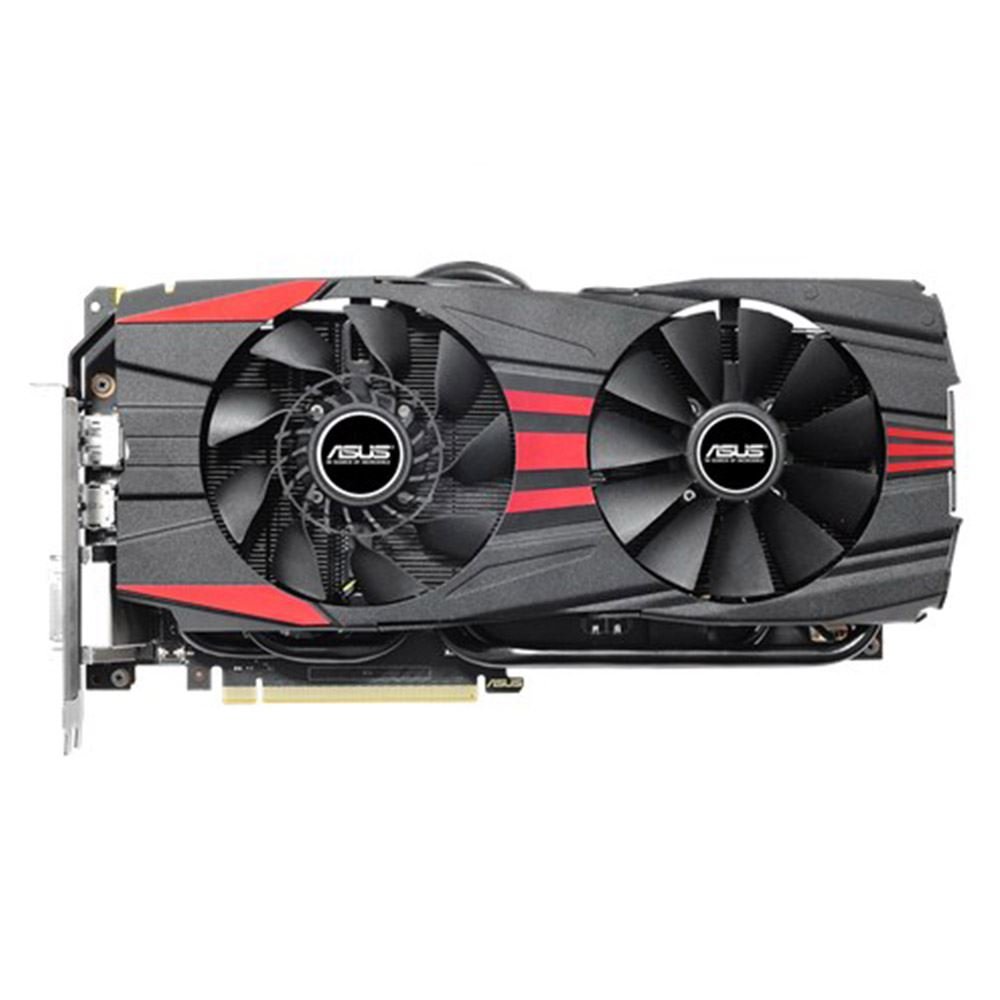

ASUS GTX 960 DirectCU II Black OC
GTX 900 · GTX 960 DirectCU II Black OC · GTX 960
General
| Series | GTX 900 |
|---|---|
| Model | GTX 960 DirectCU II Black OC |
| Chip | GTX 960 |
| Launch Year | 2015 |
| Release Date | 1/22/2015 |
| Launch MSRP | $199 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Maxwell 2.0 |
|---|---|
| GPU Die | GM206 (GM206-300-A1) |
| Foundry | TSMC · 28 nm |
| Transistors | 2.9 billion |
| Die Size | 228 mm² |
Cores
| Shading Units | 1024 |
|---|---|
| TMUs | 64 |
| ROPs | 32 |
| SM / CU | 8 |
| L2 Cache | 1 MB |
Memory
| VRAM | 2 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 128-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 1253 MHz |
|---|---|
| Boost Clock | 1317 MHz |
| TDP | 120 W |
| Power Connector | 8-pin |
| Recommended PSU | 300 W |
Compute (TFLOPS)
| FP32 | 2.41 TFLOPS |
|---|---|
| FP16 | 2.41 TFLOPS |
| FP64 | 0.08 TFLOPS |

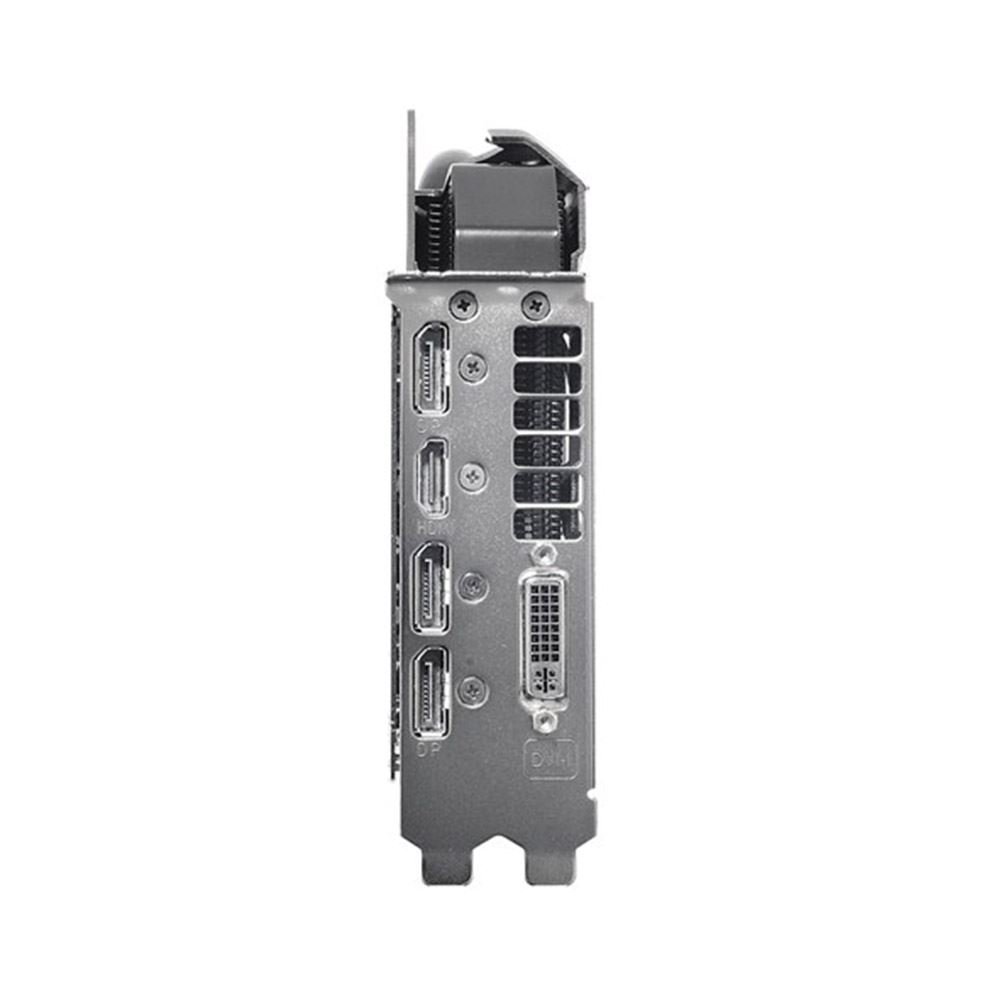

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
| DVI | 1× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 290 mm |
|---|---|
| Width | 40 mm |
| Height | 147 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | 1x NVENC (5th Gen, max. Sessions: 8) 1x NVDEC (2nd Gen) |
| Encoding | H.265 (4K YUV 4:2:0) H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless) |
| Decoding | H.265 (8bit 4:2:0 / 10bit 4:2:0) H.264 (8bit 4:2:0) VP9 (8bit) VP8 VC-1 MPEG-2 MPEG-1 |
