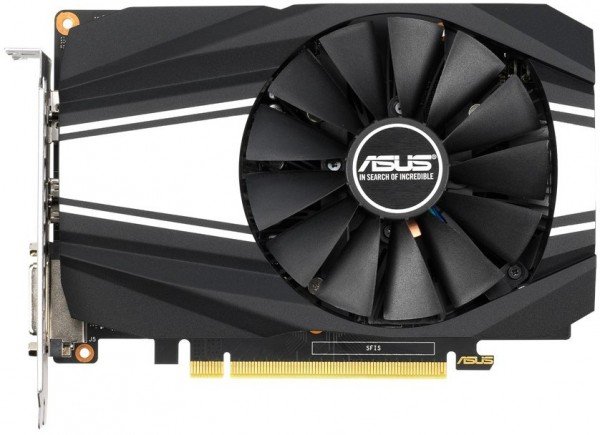

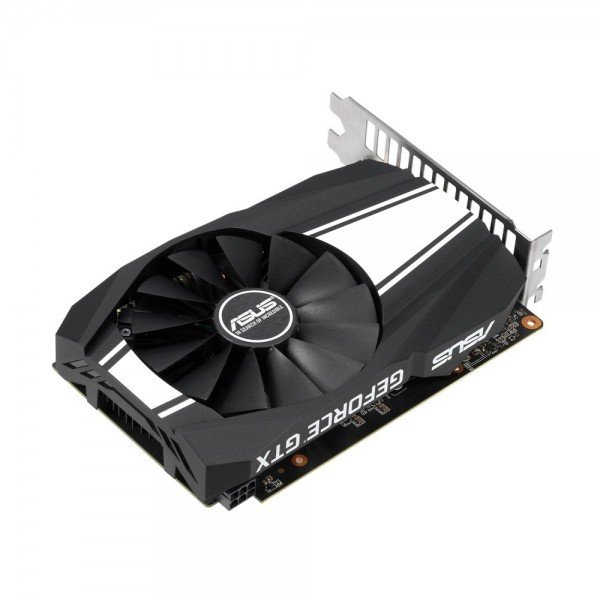

ASUS Phoenix GTX 1650 SUPER OC
GTX 16 · Phoenix GTX 1650 SUPER OC · GTX 1650 SUPER
General
| Series | GTX 16 |
|---|---|
| Model | Phoenix GTX 1650 SUPER OC |
| Chip | GTX 1650 SUPER |
| Launch Year | 2019 |
| Release Date | 11/22/2019 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Turing |
|---|---|
| GPU Die | TU116 (TU116-250-KA-A1) |
| Foundry | TSMC · 12 nm |
| Transistors | 6.6 billion |
| Die Size | 284 mm² |
Cores
| Shading Units | 1280 |
|---|---|
| TMUs | 80 |
| ROPs | 32 |
| SM / CU | 20 |
| L2 Cache | 1 MB |
Memory
| VRAM | 4 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 128-bit |
| Memory Speed | 12 Gbps |
Clocks and Power
| Base Clock | 1530 MHz |
|---|---|
| Boost Clock | 1740 MHz |
| TDP | 100 W |
| Power Connector | 6-pin |
| Recommended PSU | 350 W |
Compute (TFLOPS)
| FP32 | 4.35 TFLOPS |
|---|---|
| FP16 | 8.7 TFLOPS |
| FP64 | 0.14 TFLOPS |

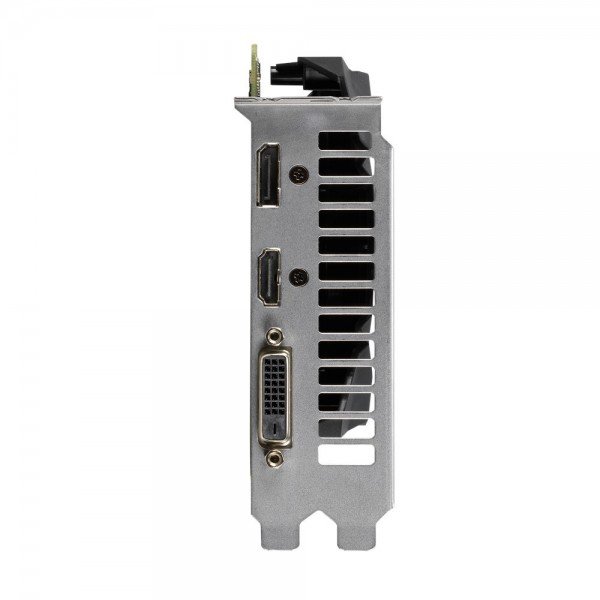

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
| DVI | 1× |
Cooling
| Fan Count | 1 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 174 mm |
|---|---|
| Width | 39 mm |
| Height | 121 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|
