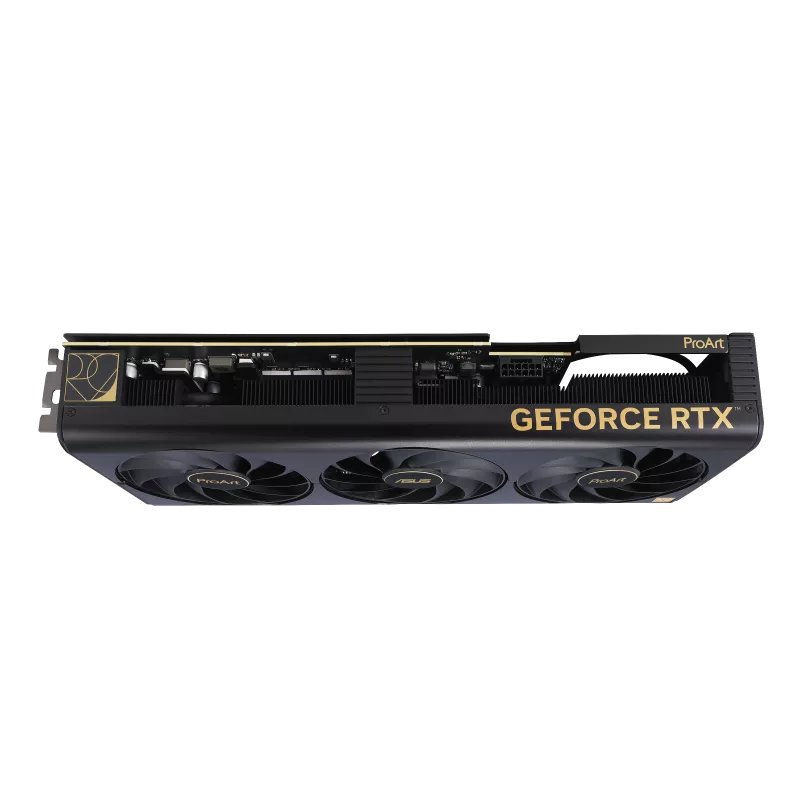

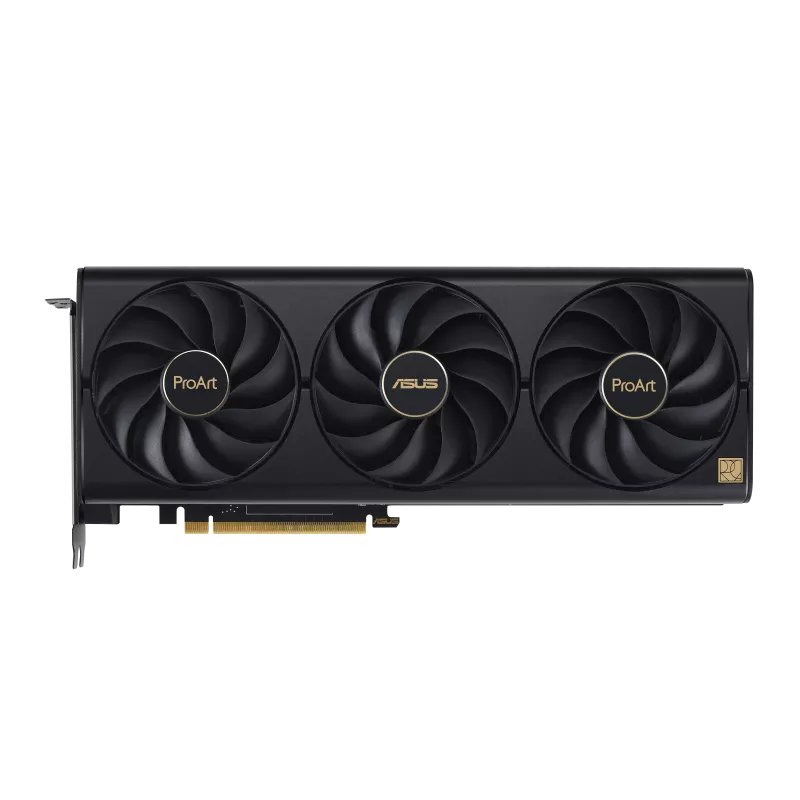

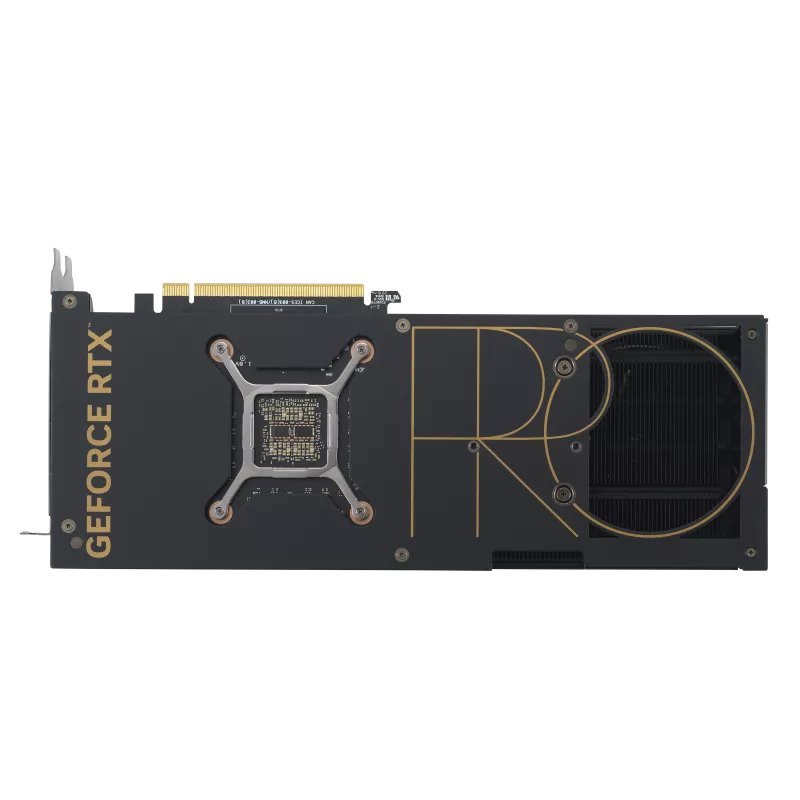

ASUS ProArt RTX 4070 Ti SUPER
RTX 40 · ProArt RTX 4070 Ti SUPER · RTX 4070 Ti SUPER
General
| Series | RTX 40 |
|---|---|
| Model | ProArt RTX 4070 Ti SUPER |
| Chip | RTX 4070 Ti SUPER |
| Launch Year | 2024 |
| Release Date | 1/8/2024 |
| Launch MSRP | $799 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Ada Lovelace |
|---|---|
| GPU Die | AD103 (AD103-275-A1) |
| Foundry | TSMC · 5 nm |
| Transistors | 45.9 billion |
| Die Size | 379 mm² |
Cores
| Shading Units | 8448 |
|---|---|
| TMUs | 264 |
| ROPs | 96 |
| SM / CU | 66 |
| Tensor Cores | 264 |
| RT Cores | 66 |
| L2 Cache | 48 MB |
Memory
| VRAM | 16 GB |
|---|---|
| Memory Type | GDDR6X |
| Memory Bus | 256-bit |
| Memory Speed | 21 Gbps |
Clocks and Power
| Base Clock | 2340 MHz |
|---|---|
| Boost Clock | 2610 MHz |
| TDP | 285 W |
| Power Connector | 12V-2x6 |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 44.1 TFLOPS |
|---|---|
| FP16 | 44.1 TFLOPS |
| FP64 | 0.69 TFLOPS |

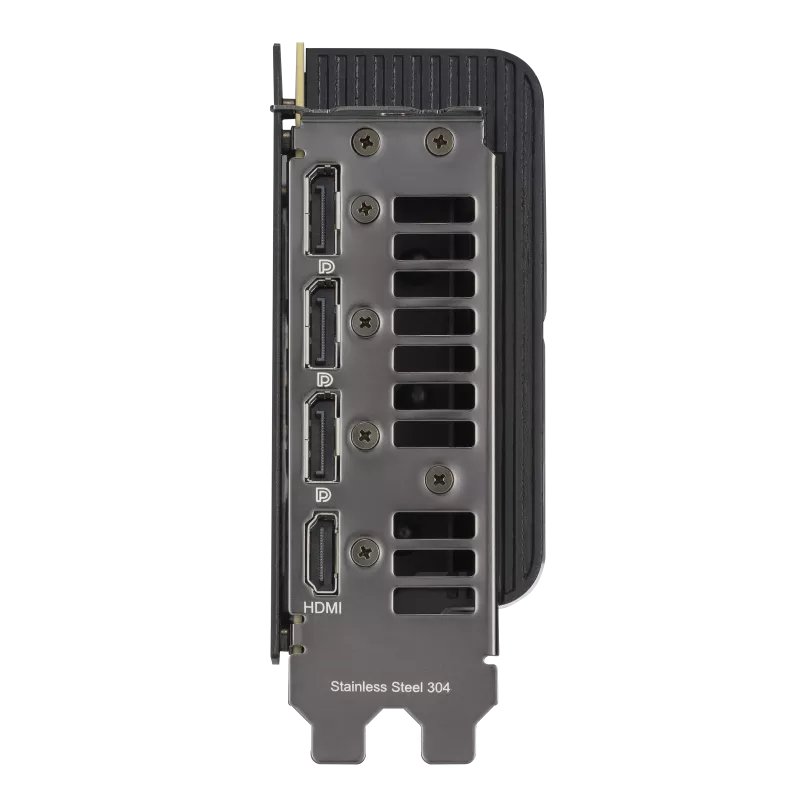

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 300 mm |
|---|---|
| Width | 50 mm |
| Height | 120 mm |
| Slot Width | 2.5 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) CUDA 8.9 Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.9 |
|---|---|
| Hardware Encoder | 2x NVENC (8th Gen, max. Sessions: 8) 1x NVDEC (5th Gen) |
| Encoding | AV1 (YUV 4:2:0) H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support) H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless) |
| Decoding | AV1 (8bit / 10bit) H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4) H.264 (8bit 4:2:0) VP9 (8bit / 10bit / 12bit) VP8 VC-1 MPEG-2 MPEG-1 |
