ASUS ROG STRIX GTX 1070 GAMING OC
GTX 10 · ROG STRIX GTX 1070 GAMING OC · GTX 1070
General
| Series | GTX 10 |
|---|---|
| Model | ROG STRIX GTX 1070 GAMING OC |
| Chip | GTX 1070 |
| Launch Year | 2016 |
| Release Date | 6/10/2016 |
| Launch MSRP | $379 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Pascal |
|---|---|
| GPU Die | GP104 (GP104-200-A1) |
| Foundry | TSMC · 16 nm |
| Transistors | 7.2 billion |
| Die Size | 314 mm² |
Cores
| Shading Units | 1920 |
|---|---|
| TMUs | 120 |
| ROPs | 64 |
| SM / CU | 15 |
| L2 Cache | 2 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 256-bit |
| Memory Speed | 8 Gbps |
Clocks and Power
| Base Clock | 1633 MHz |
|---|---|
| Boost Clock | 1835 MHz |
| TDP | 150 W |
| Power Connector | 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 6.46 TFLOPS |
|---|---|
| FP16 | 0.1 TFLOPS |
| FP64 | 0.2 TFLOPS |

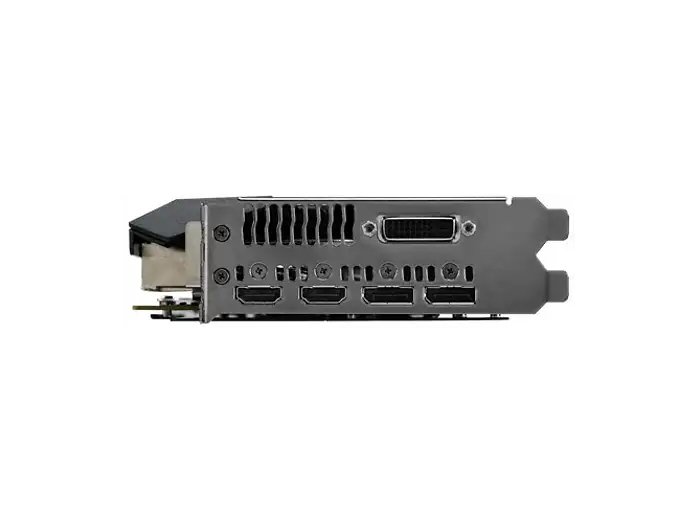

Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 2× |
| DVI | 1× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 298 mm |
|---|---|
| Width | 40 mm |
| Height | 134 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|
