ASUS ROG STRIX RTX 2070 GAMING OC

RTX 20 · ROG STRIX RTX 2070 GAMING OC · RTX 2070

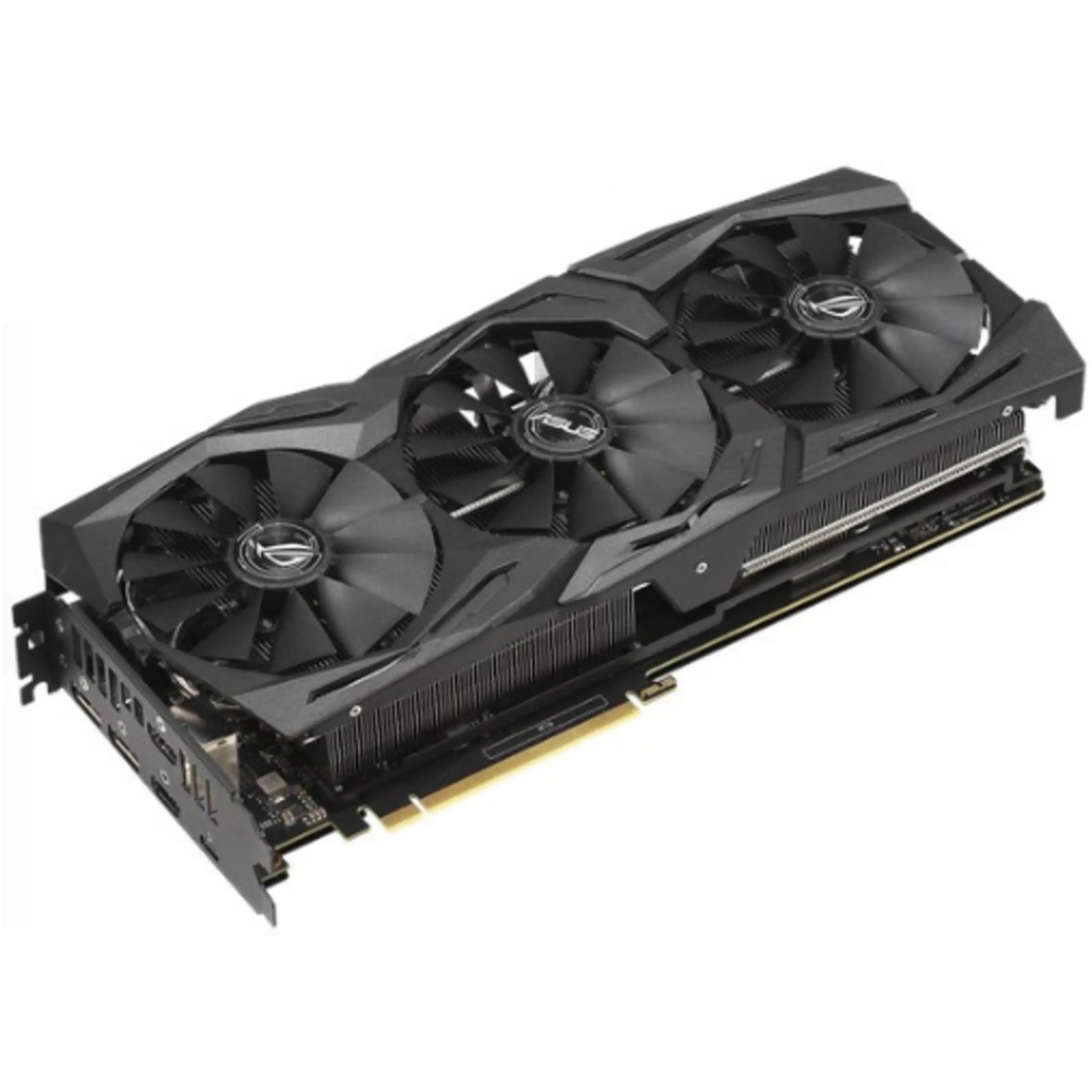

ASUS ROG STRIX RTX 2070 GAMING OC product image

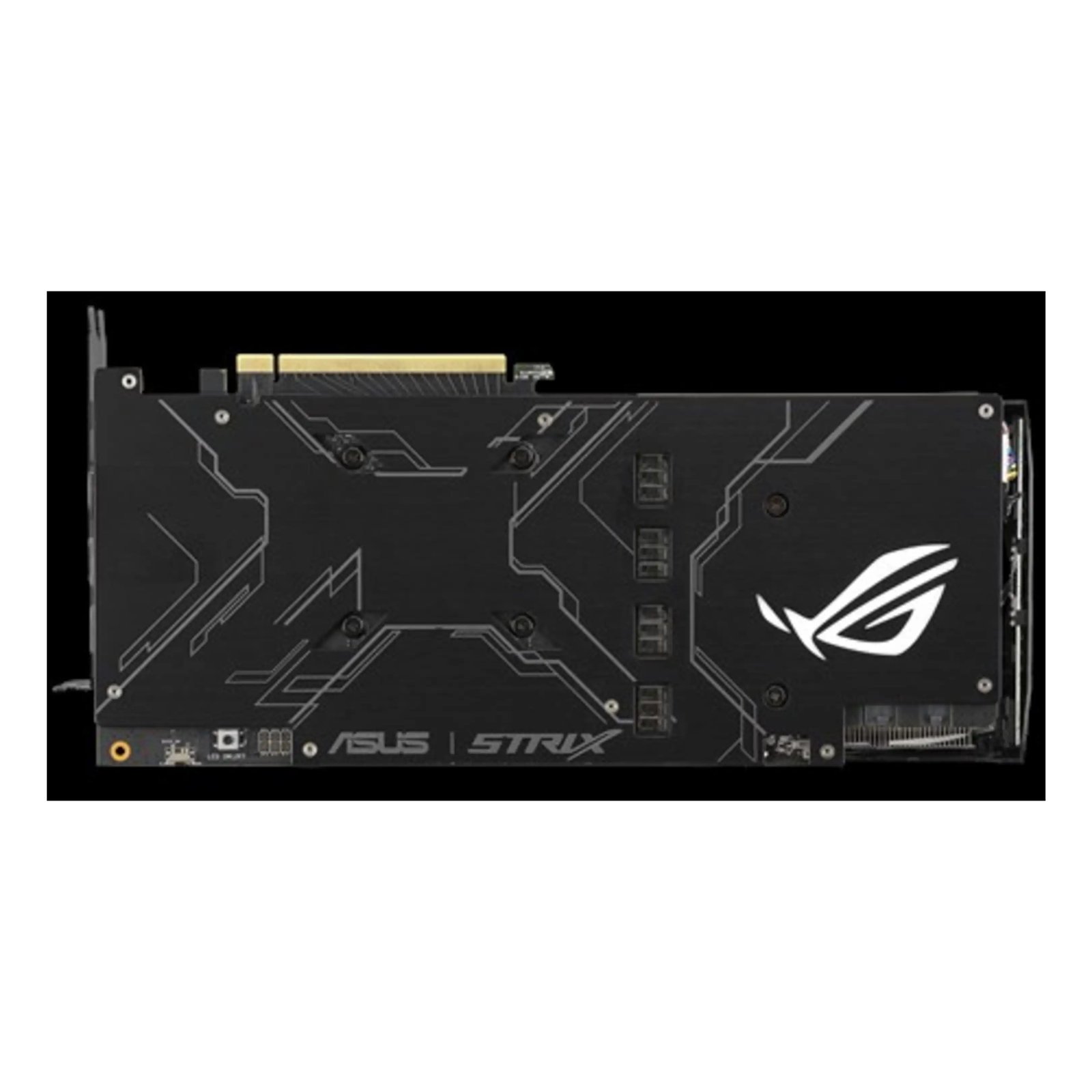

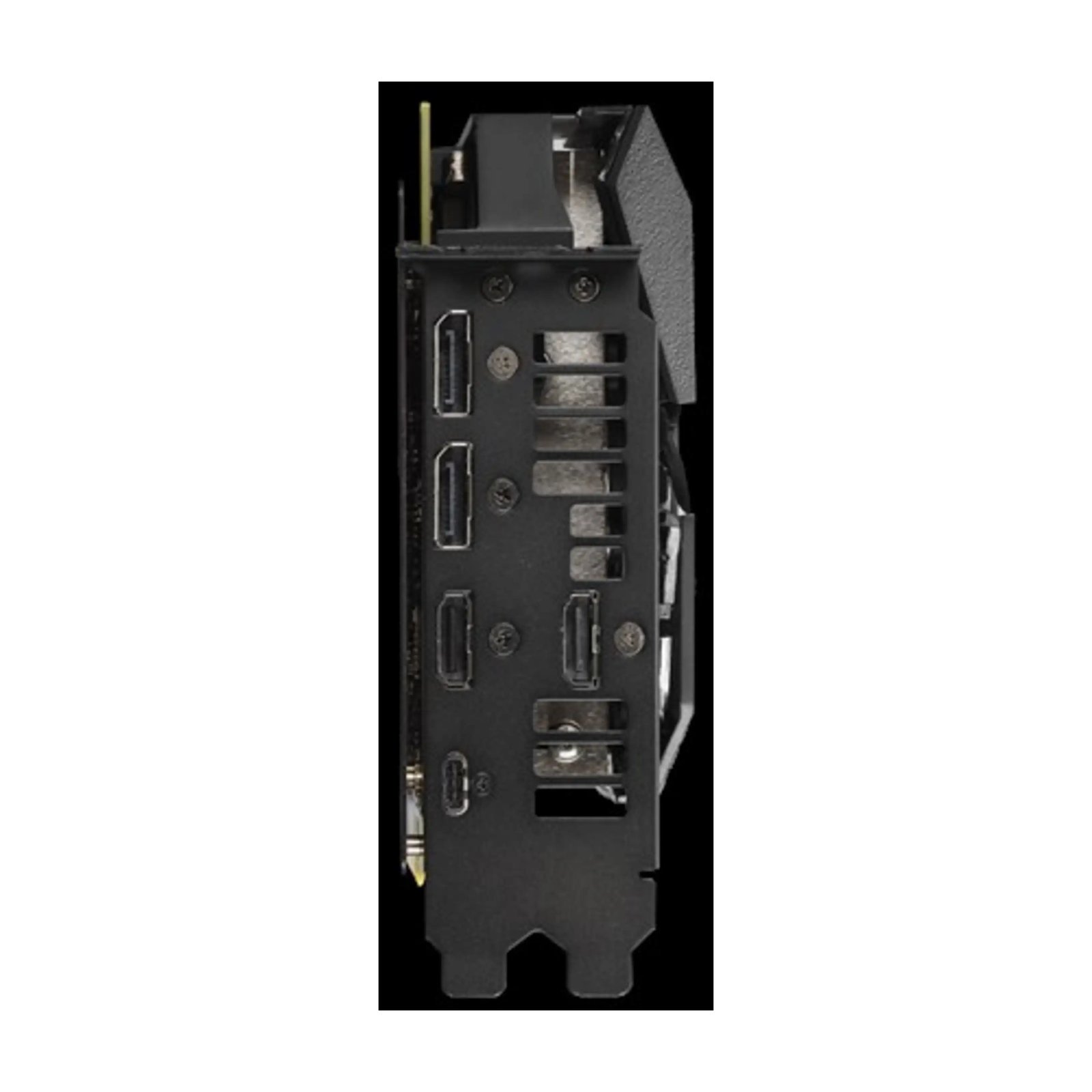

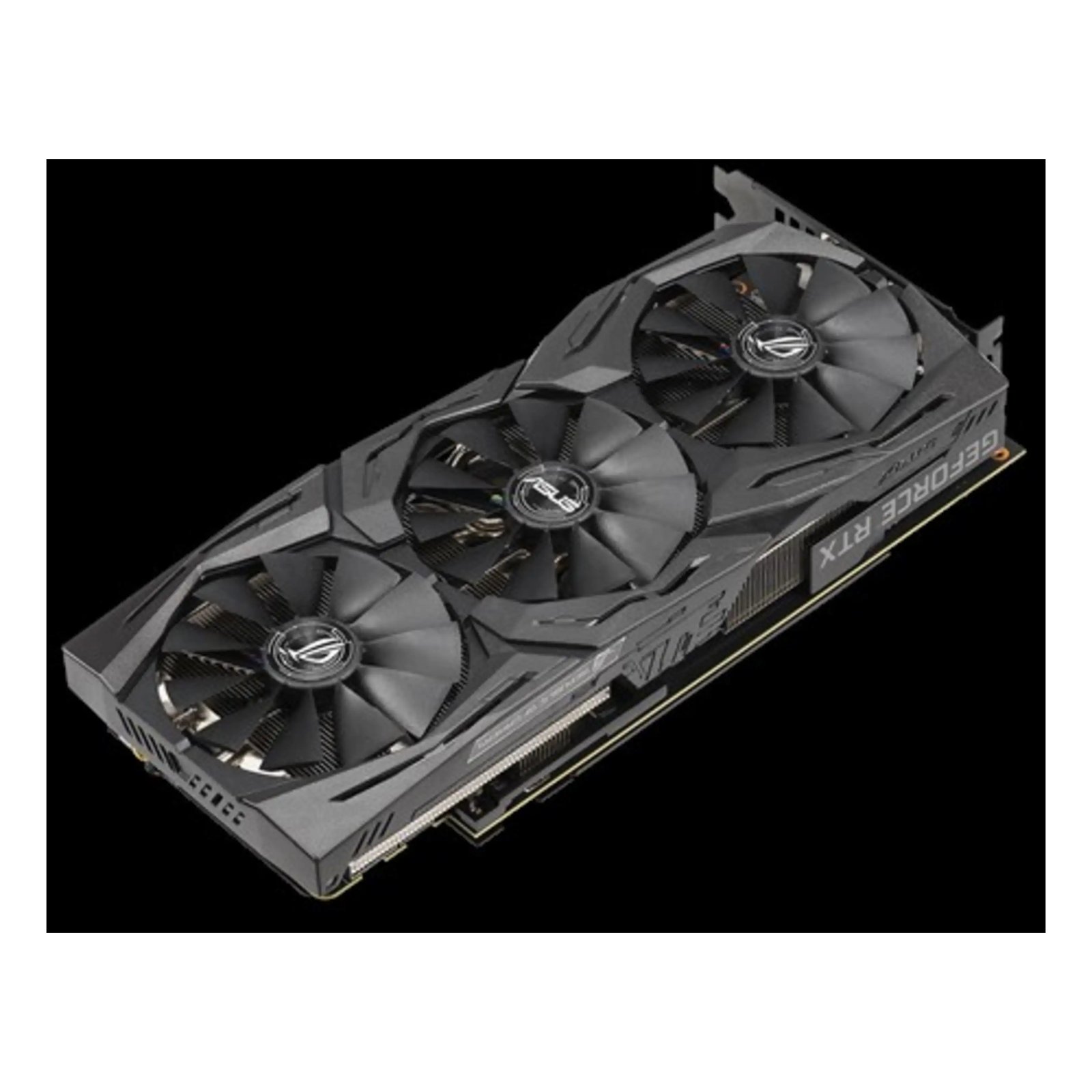

ASUS ROG STRIX RTX 2070 GAMING OC product image 1ASUS ROG STRIX RTX 2070 GAMING OC product image 2ASUS ROG STRIX RTX 2070 GAMING OC product image 3ASUS ROG STRIX RTX 2070 GAMING OC product image 4

General

SeriesRTX 20
ModelROG STRIX RTX 2070 GAMING OC
ChipRTX 2070
Launch Year2018
Release Date10/17/2018
Launch MSRP$499
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU106 (TU106-400-A1 / TU106-400A-A1)
FoundryTSMC · 12 nm
Transistors10.8 billion
Die Size445 mm²

Cores

Shading Units2304
TMUs144
ROPs64
SM / CU36
Tensor Cores288
RT Cores36
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1410 MHz
Boost Clock1815 MHz
TDP175 W
Power Connector6-pin + 8-pin
Recommended PSU450 W

Compute (TFLOPS)

FP327.47 TFLOPS
FP1614.93 TFLOPS
FP640.23 TFLOPS

Display Outputs

HDMI2×
DisplayPort2×
DVI1×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length300 mm
Slot Width2 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 7.5
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (6th Gen)
1x NVDEC (4th Gen)
Encoding
H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K)
H.264 (YUV 4:2:0, YUV 4:4:4, Lossless)
Decoding
H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10bit)
VP8
VC-1
MPEG-2
MPEG-1
