ASUS ROG STRIX RTX 3070 GAMING OC

RTX 30 · ROG STRIX RTX 3070 GAMING OC · RTX 3070

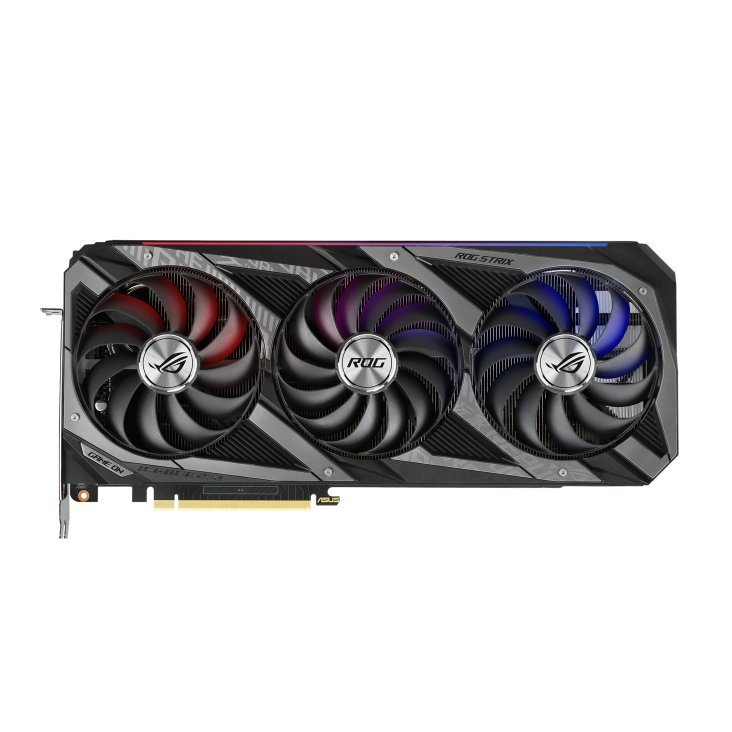

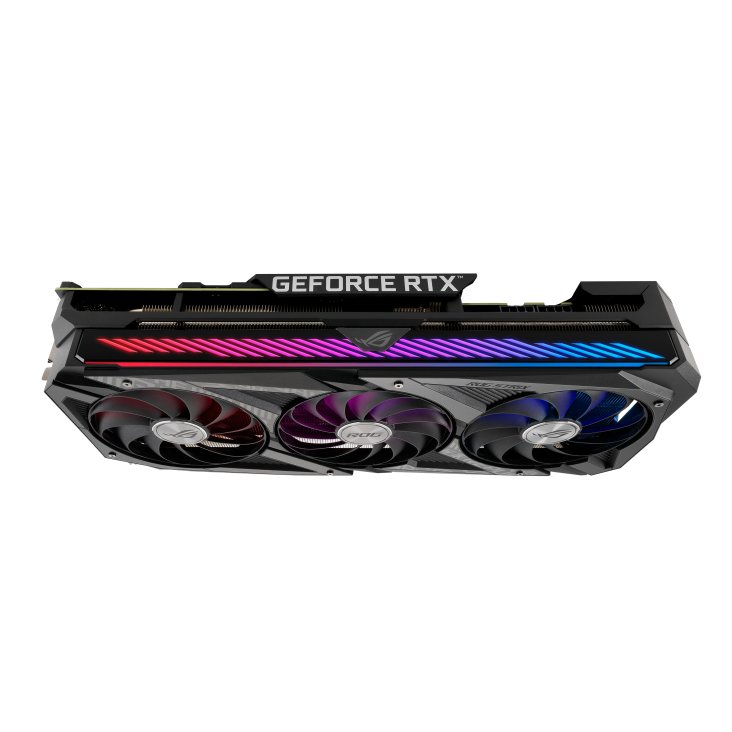

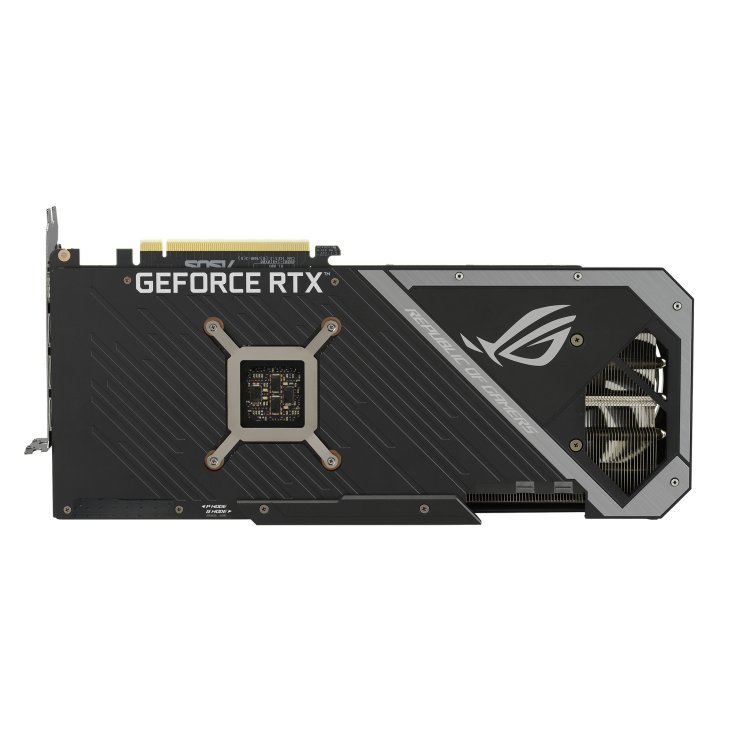

ASUS ROG STRIX RTX 3070 GAMING OC product image
ASUS ROG STRIX RTX 3070 GAMING OC product image 1ASUS ROG STRIX RTX 3070 GAMING OC product image 2ASUS ROG STRIX RTX 3070 GAMING OC product image 3ASUS ROG STRIX RTX 3070 GAMING OC product image 4

General

SeriesRTX 30
ModelROG STRIX RTX 3070 GAMING OC
ChipRTX 3070
Launch Year2020
Release Date9/1/2020
Launch MSRP$499
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAmpere
GPU DieGA104 (GA104-300-A1 / GA104-302-A1)
FoundrySamsung · 8 nm
Transistors17.4 billion
Die Size392 mm²

Cores

Shading Units5888
TMUs184
ROPs96
SM / CU46
Tensor Cores184
RT Cores46
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1500 MHz
Boost Clock1905 MHz
TDP220 W
Power Connector8-pin
Recommended PSU550 W

Compute (TFLOPS)

FP3220.31 TFLOPS
FP1620.31 TFLOPS
FP640.32 TFLOPS

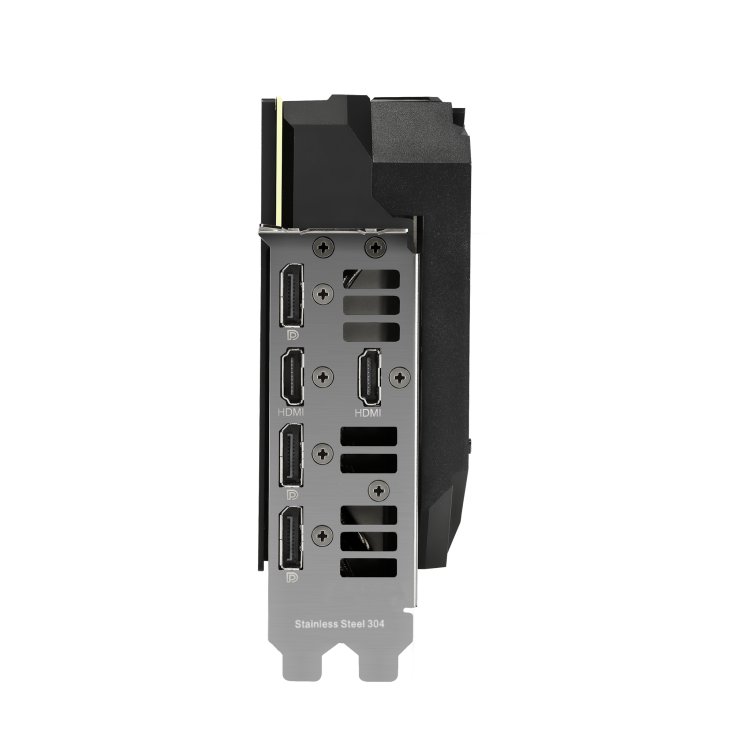

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length319 mm
Width58 mm
Height140 mm
Slot Width2.9 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.6
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (7th Gen, max. Sessions: 8)
1x NVDEC (5th Gen)
Encoding
H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit)
H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8bit / 10bit / 12bit)
VP8
VC-1
MPEG-2
MPEG-1
