Home › Product Specifications › Graphics Cards › ASUS

ASUS ROG STRIX RTX 3080 GAMING WHITE

RTX 30 · ROG STRIX RTX 3080 GAMING WHITE · RTX 3080

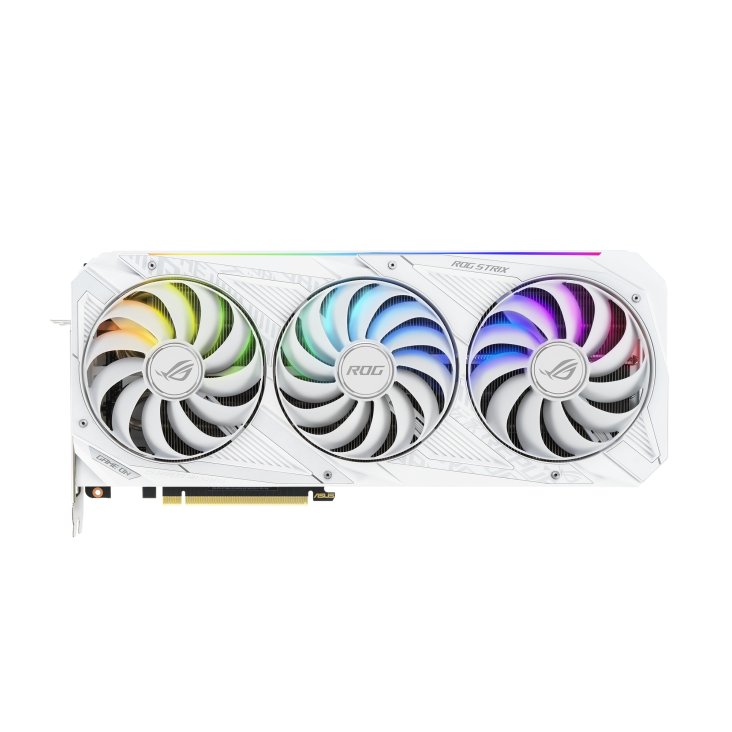

ASUS ROG STRIX RTX 3080 GAMING WHITE product image

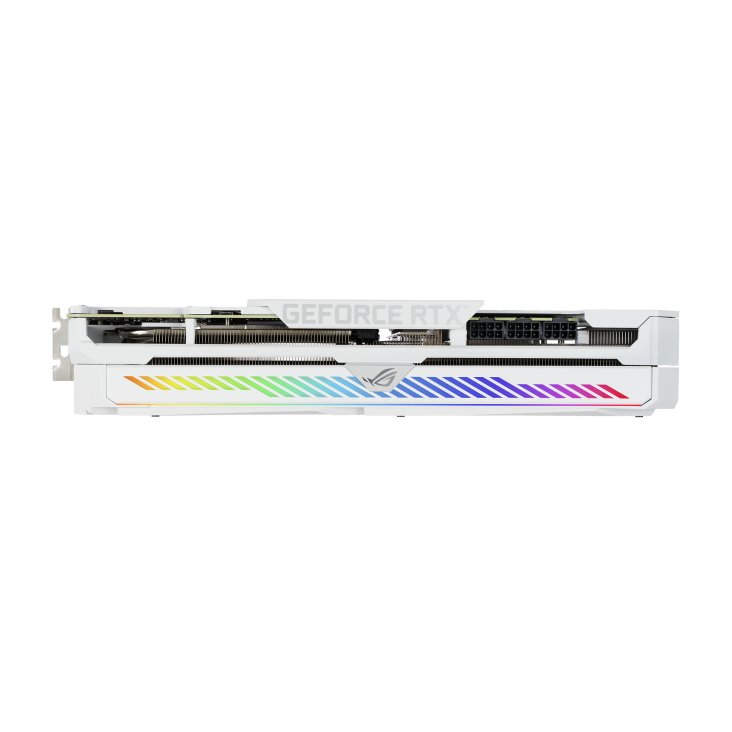

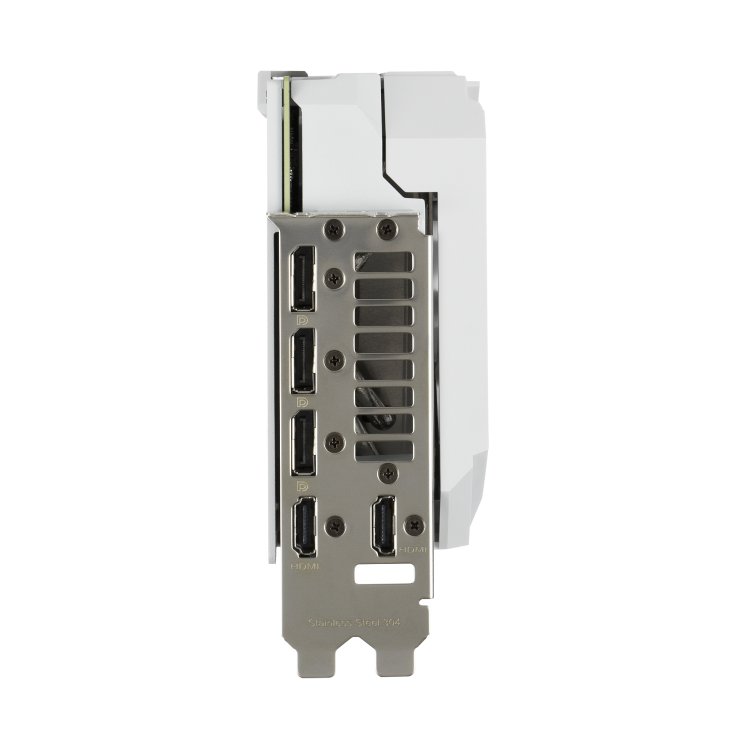

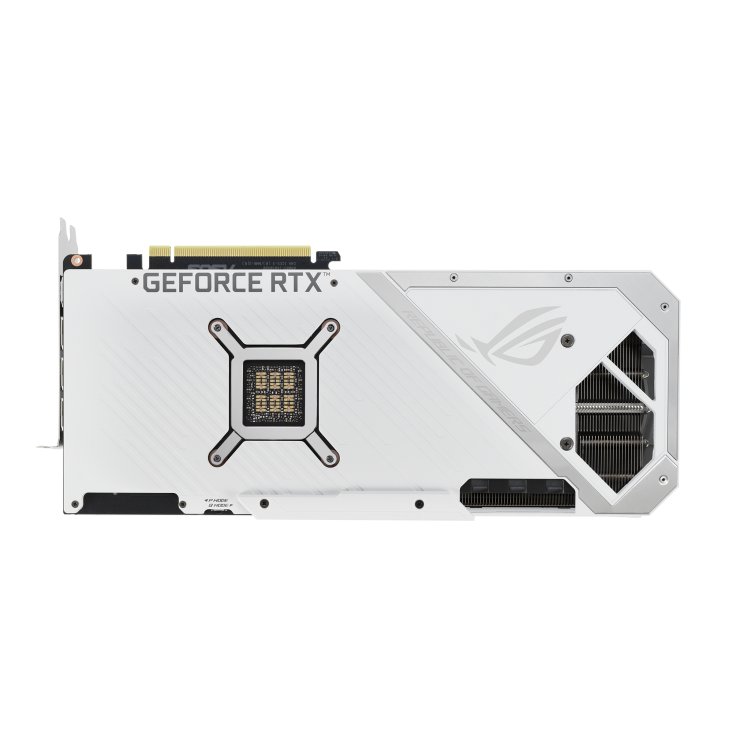

ASUS ROG STRIX RTX 3080 GAMING WHITE product image 1ASUS ROG STRIX RTX 3080 GAMING WHITE product image 2ASUS ROG STRIX RTX 3080 GAMING WHITE product image 3ASUS ROG STRIX RTX 3080 GAMING WHITE product image 4

General

SeriesRTX 30
ModelROG STRIX RTX 3080 GAMING WHITE
ChipRTX 3080
Launch Year2020
Release Date9/17/2020
Launch MSRP$699
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAmpere
GPU DieGA102 (GA102-200-KD-A1 / GA102-202-KD-A1)
FoundrySamsung · 8 nm
Transistors28.3 billion
Die Size628 mm²

Cores

Shading Units8704
TMUs272
ROPs96
SM / CU68
Tensor Cores272
RT Cores68
L2 Cache5 MB

Memory

VRAM10 GB
Memory TypeGDDR6X
Memory Bus320-bit
Memory Speed19 Gbps

Clocks and Power

Base Clock1440 MHz
Boost Clock1710 MHz
TDP320 W
Power Connector8-pin
Recommended PSU700 W

Compute (TFLOPS)

FP3229.77 TFLOPS
FP1629.77 TFLOPS
FP640.47 TFLOPS

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length319 mm
Width58 mm
Height140 mm
Slot Width2 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.6
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (7th Gen, max. Sessions: 8)
1x NVDEC (5th Gen)
Encoding
H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit)
H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8bit / 10bit / 12bit)
VP8
VC-1
MPEG-2
MPEG-1
