ASUS ROG STRIX RTX 4070 SUPER GAMING

RTX 40 · ROG STRIX RTX 4070 SUPER GAMING · RTX 4070 SUPER

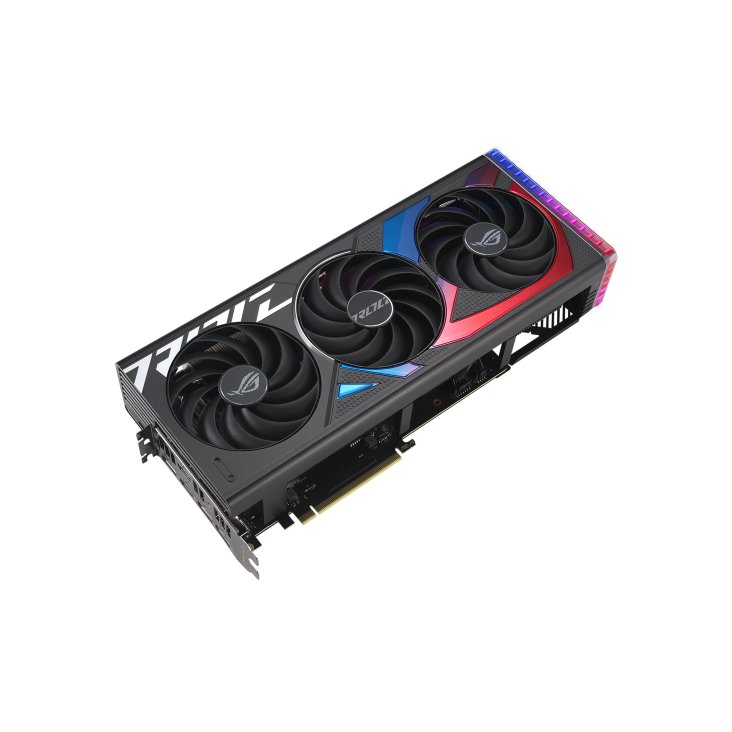

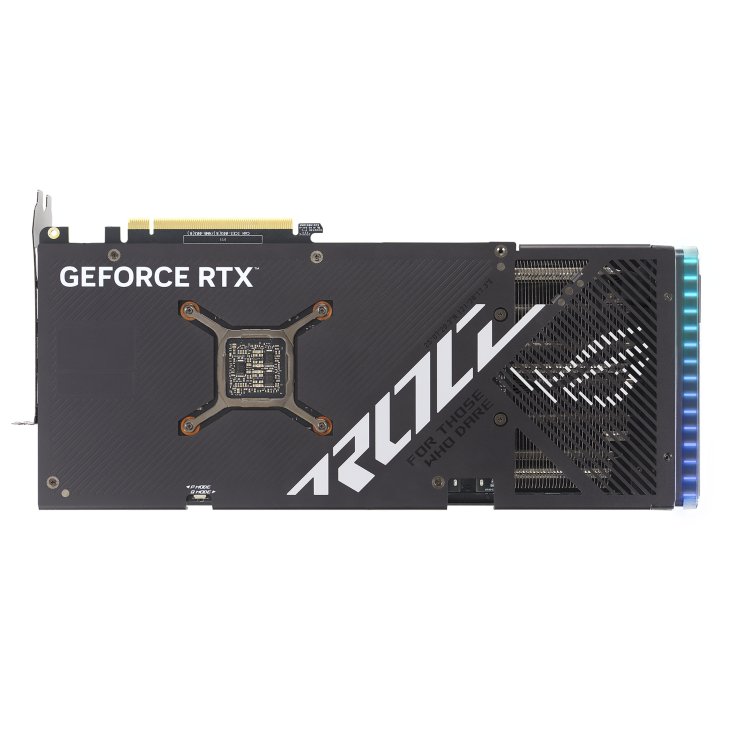

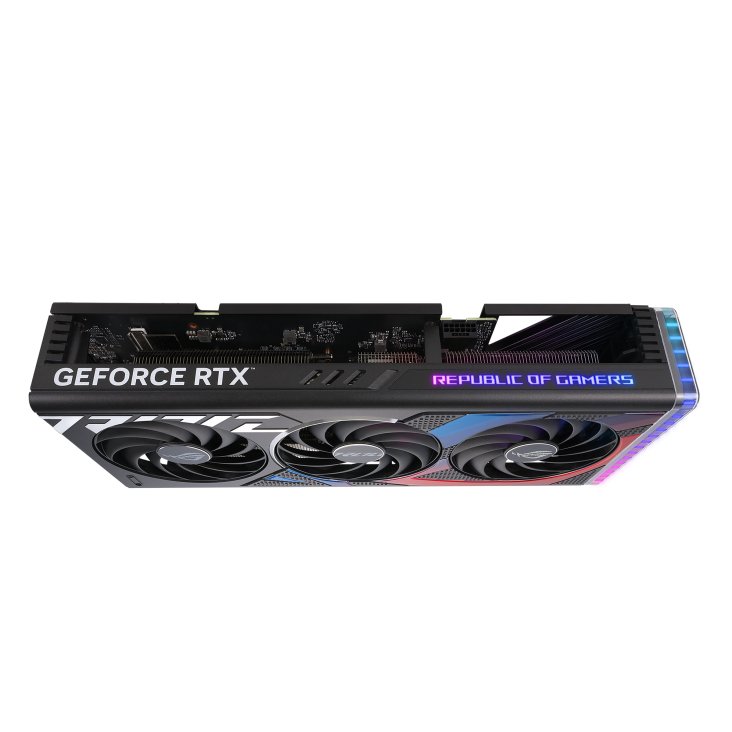

ASUS ROG STRIX RTX 4070 SUPER GAMING product image
ASUS ROG STRIX RTX 4070 SUPER GAMING product image 1ASUS ROG STRIX RTX 4070 SUPER GAMING product image 2ASUS ROG STRIX RTX 4070 SUPER GAMING product image 3ASUS ROG STRIX RTX 4070 SUPER GAMING product image 4

General

SeriesRTX 40
ModelROG STRIX RTX 4070 SUPER GAMING
ChipRTX 4070 SUPER
Launch Year2024
Release Date1/8/2024
Launch MSRP$599
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAda Lovelace
GPU DieAD104 (AD104-350-A1)
FoundryTSMC · 5 nm
Transistors35.8 billion
Die Size294 mm²

Cores

Shading Units7168
TMUs224
ROPs80
SM / CU56
Tensor Cores224
RT Cores56
L2 Cache48 MB

Memory

VRAM12 GB
Memory TypeGDDR6X
Memory Bus192-bit
Memory Speed21 Gbps

Clocks and Power

Base Clock1980 MHz
Boost Clock2475 MHz
TDP220 W
Power Connector12V-2x6

Compute (TFLOPS)

FP3235.84 TFLOPS
FP1635.84 TFLOPS
FP640.56 TFLOPS

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length339 mm
Width62 mm
Height149 mm
Slot Width3.1 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.9
Vulkan 1.3
OpenCL 3.0
OpenGL 4.6
Shader Model 6.7
Hardware Encoder
1x NVENC (8th Gen, max 8 sessions)
1x NVDEC (5th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10/12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
