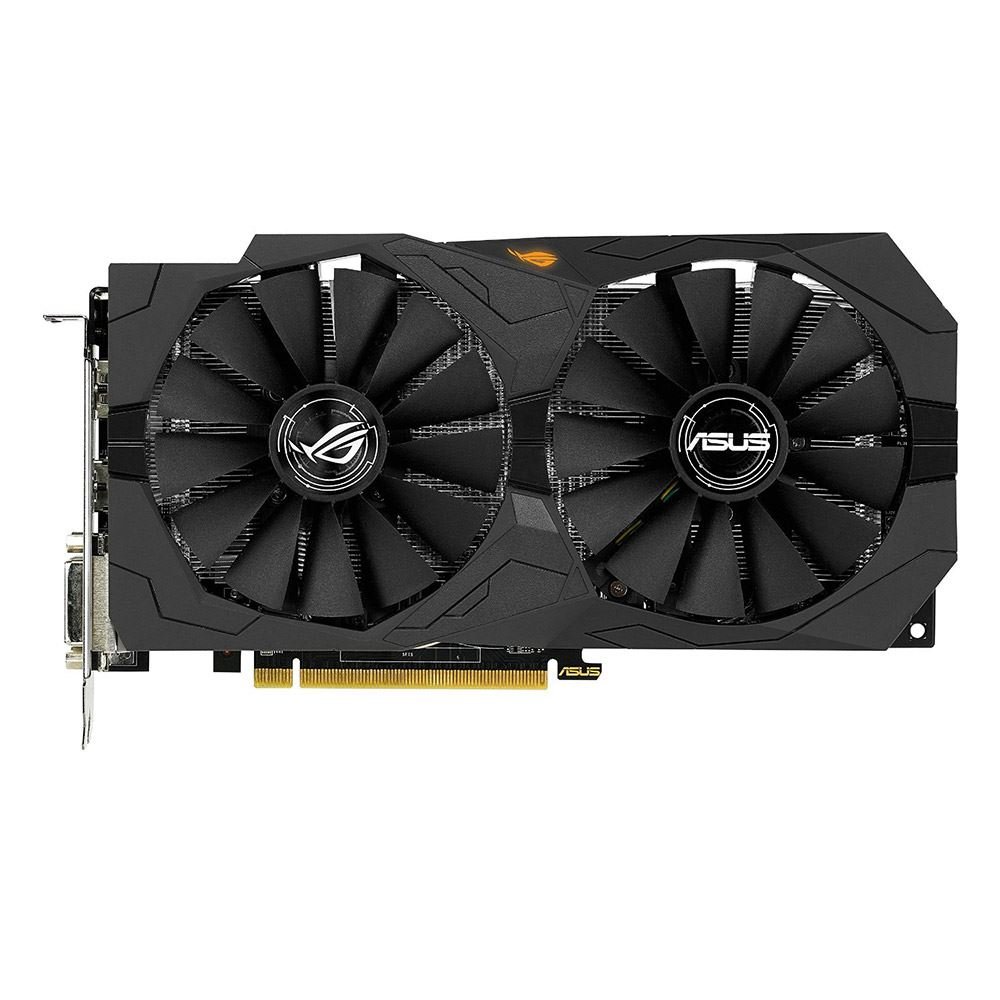

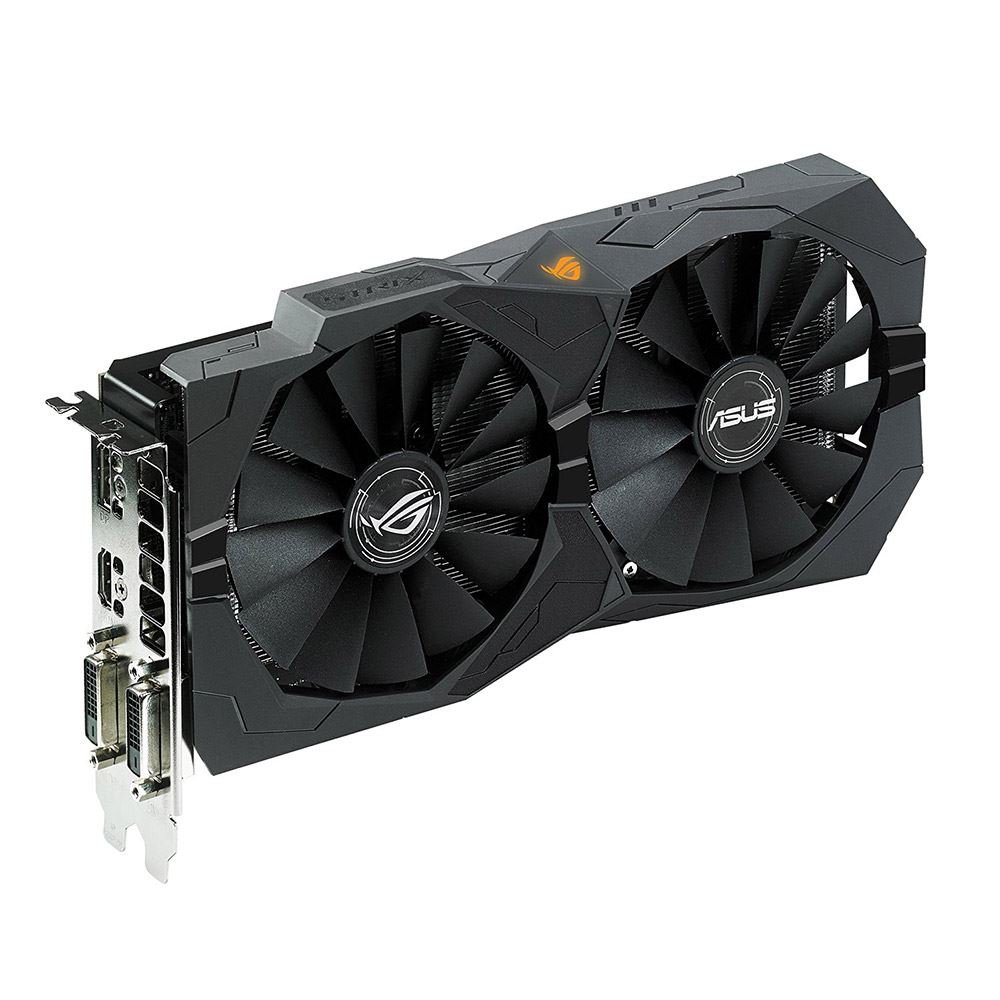

ASUS ROG STRIX RX 470 GAMING OC
RX 400 · ROG STRIX RX 470 GAMING OC · RX 470
General
| Series | RX 400 |
|---|---|
| Model | ROG STRIX RX 470 GAMING OC |
| Chip | RX 470 |
| Launch Year | 2016 |
| Release Date | 8/4/2016 |
| Launch MSRP | $179 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | GCN 4.0 |
|---|---|
| GPU Die | Ellesmere (Polaris 10 PRO) |
| Foundry | GlobalFoundries · 14 nm |
| Transistors | 5.7 billion |
| Die Size | 232 mm² |
Cores
| Shading Units | 2048 |
|---|---|
| TMUs | 128 |
| ROPs | 32 |
| SM / CU | 32 |
| L2 Cache | 2 MB |
Memory
| VRAM | 4 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 256-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 926 MHz |
|---|---|
| Boost Clock | 1250 MHz |
| TDP | 120 W |
| Power Connector | 6-pin |
| Recommended PSU | 300 W |
Compute (TFLOPS)
| FP32 | 4.94 TFLOPS |
|---|---|
| FP16 | 4.94 TFLOPS |
| FP64 | 0.31 TFLOPS |

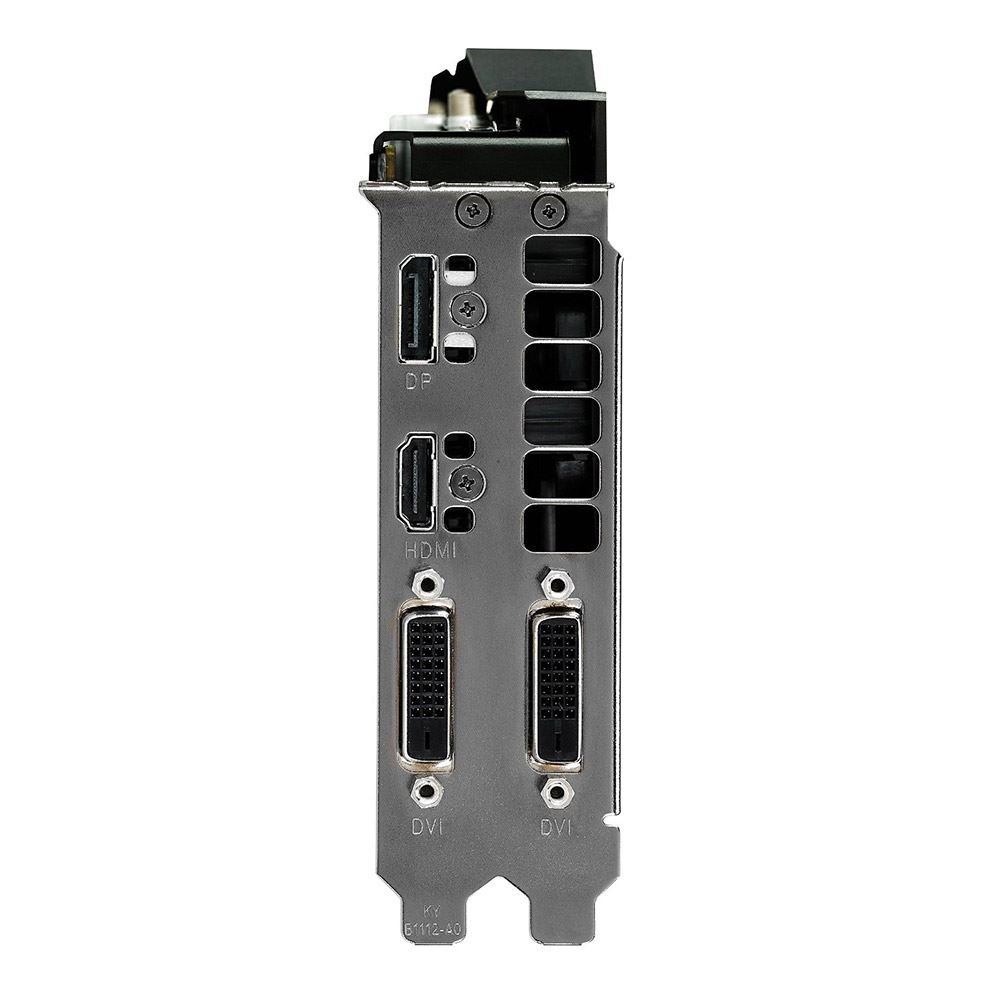

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 1× |
| DVI | 2× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 242 mm |
|---|---|
| Width | 42 mm |
| Height | 129 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_0) Vulkan 1.3 OpenCL 2.1 OpenGL 4.6 Shader Model 6.7 |
|---|
