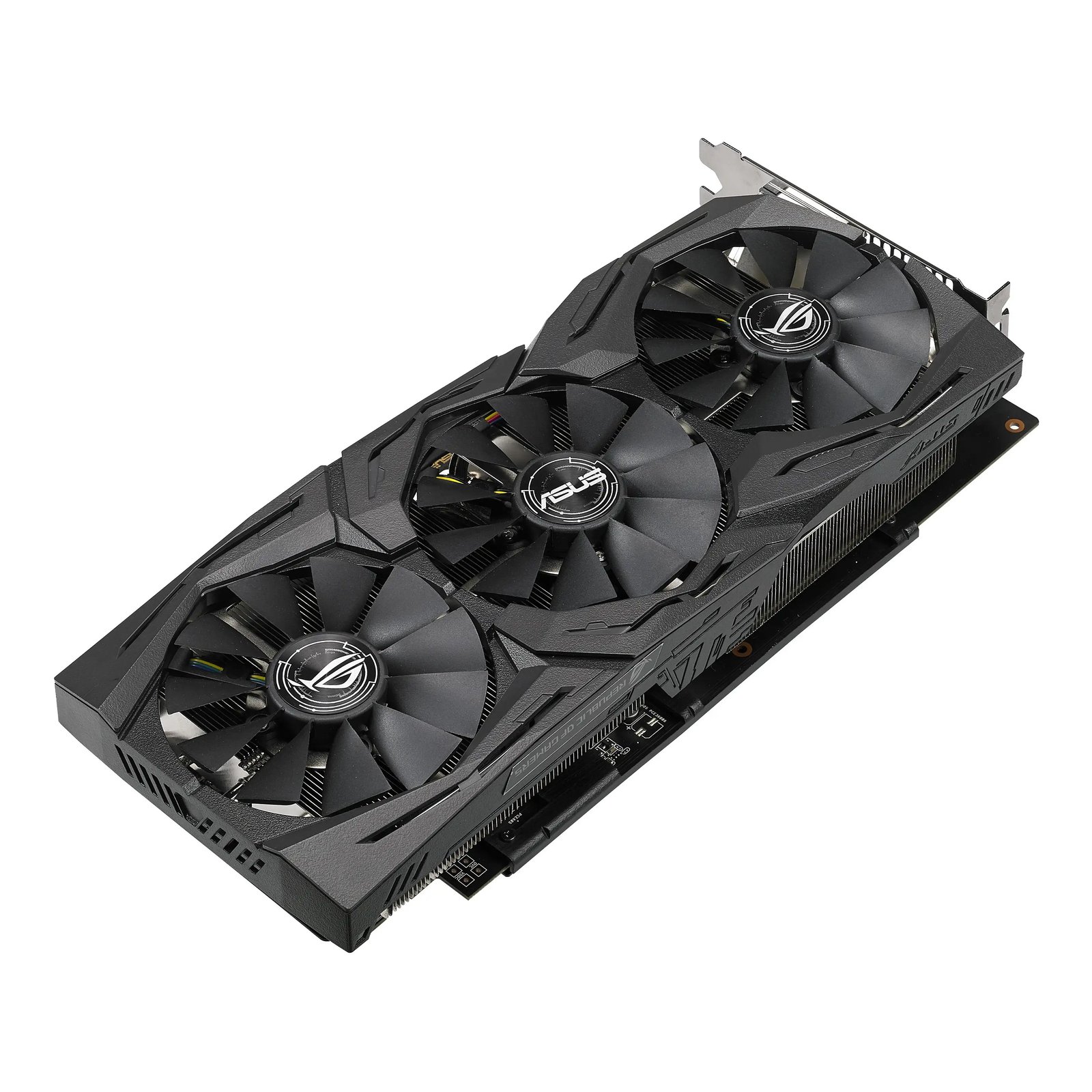

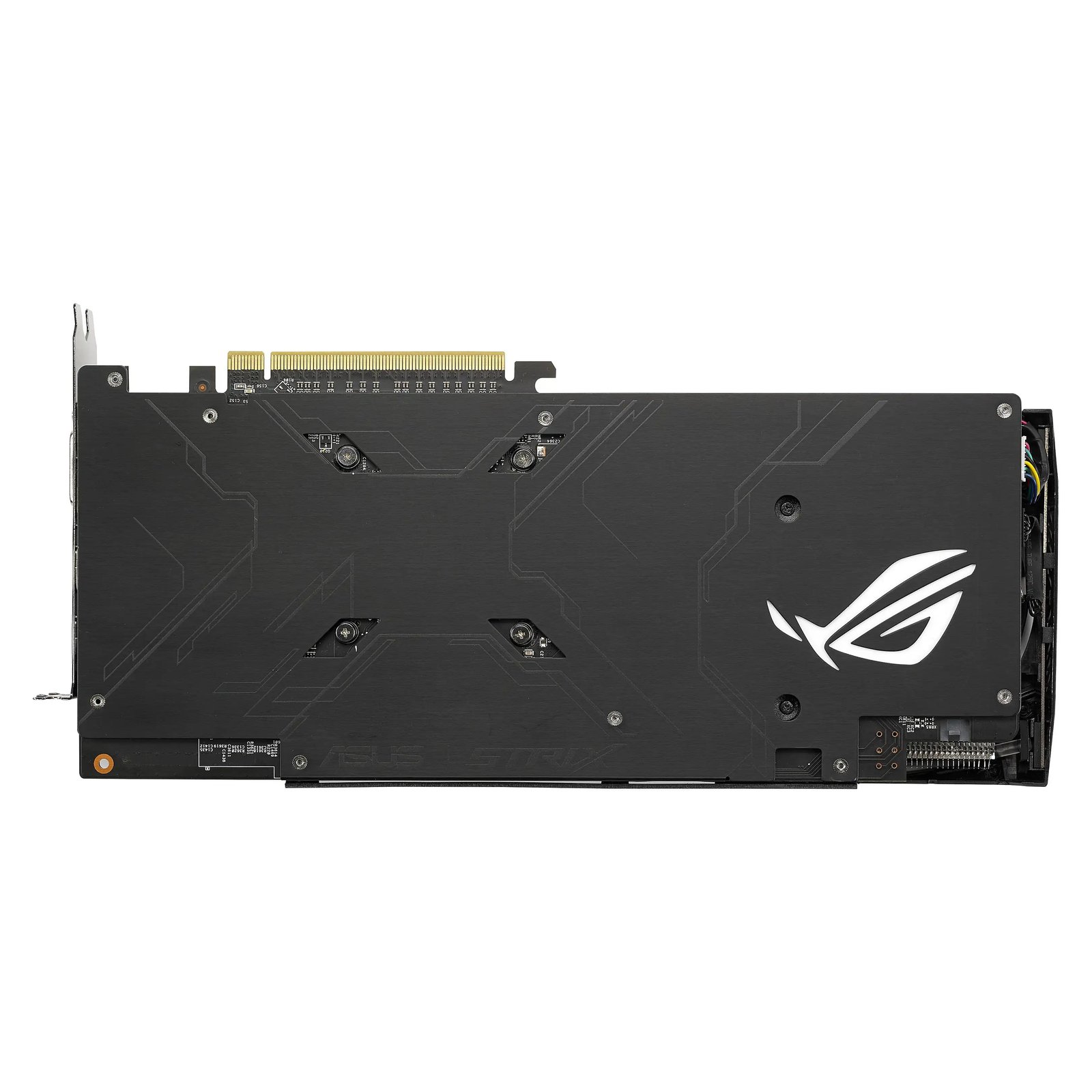

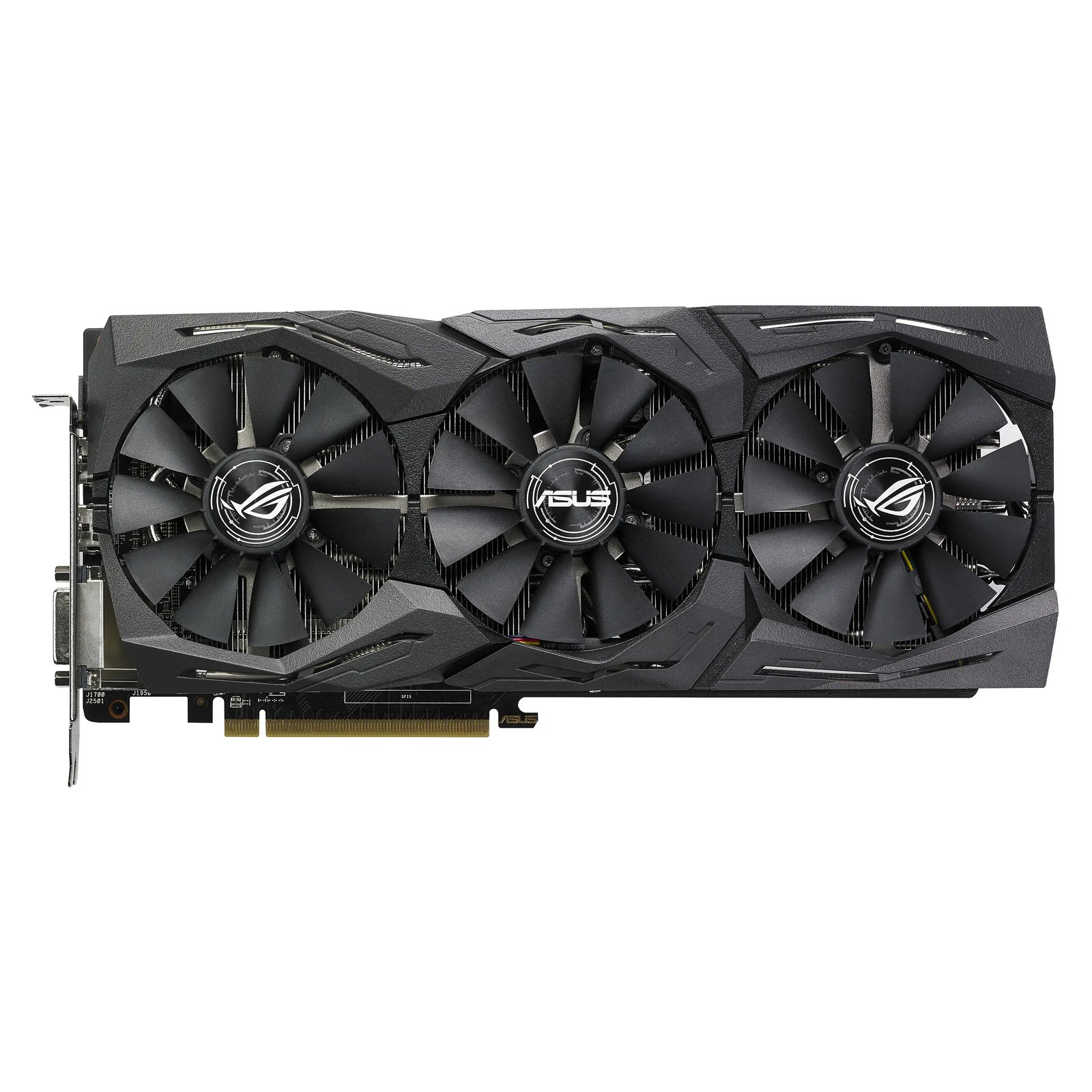

ASUS ROG STRIX RX 580 GAMING TOP
RX 500 · ROG STRIX RX 580 GAMING TOP · RX 580
General
| Series | RX 500 |
|---|---|
| Model | ROG STRIX RX 580 GAMING TOP |
| Chip | RX 580 |
| Launch Year | 2017 |
| Release Date | 4/18/2017 |
| Launch MSRP | $229 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | GCN 4.0 |
|---|---|
| GPU Die | Polaris 20 (Polaris 20 XTX) |
| Foundry | GlobalFoundries · 14 nm |
| Transistors | 5.7 billion |
| Die Size | 232 mm² |
Cores
| Shading Units | 2304 |
|---|---|
| TMUs | 144 |
| ROPs | 32 |
| SM / CU | 36 |
| L2 Cache | 2 MB |
Memory
| VRAM | 8 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 256-bit |
| Memory Speed | 8 Gbps |
Clocks and Power
| Base Clock | 1257 MHz |
|---|---|
| Boost Clock | 1411 MHz |
| TDP | 185 W |
| Power Connector | 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 6.18 TFLOPS |
|---|---|
| FP16 | 6.18 TFLOPS |
| FP64 | 0.39 TFLOPS |

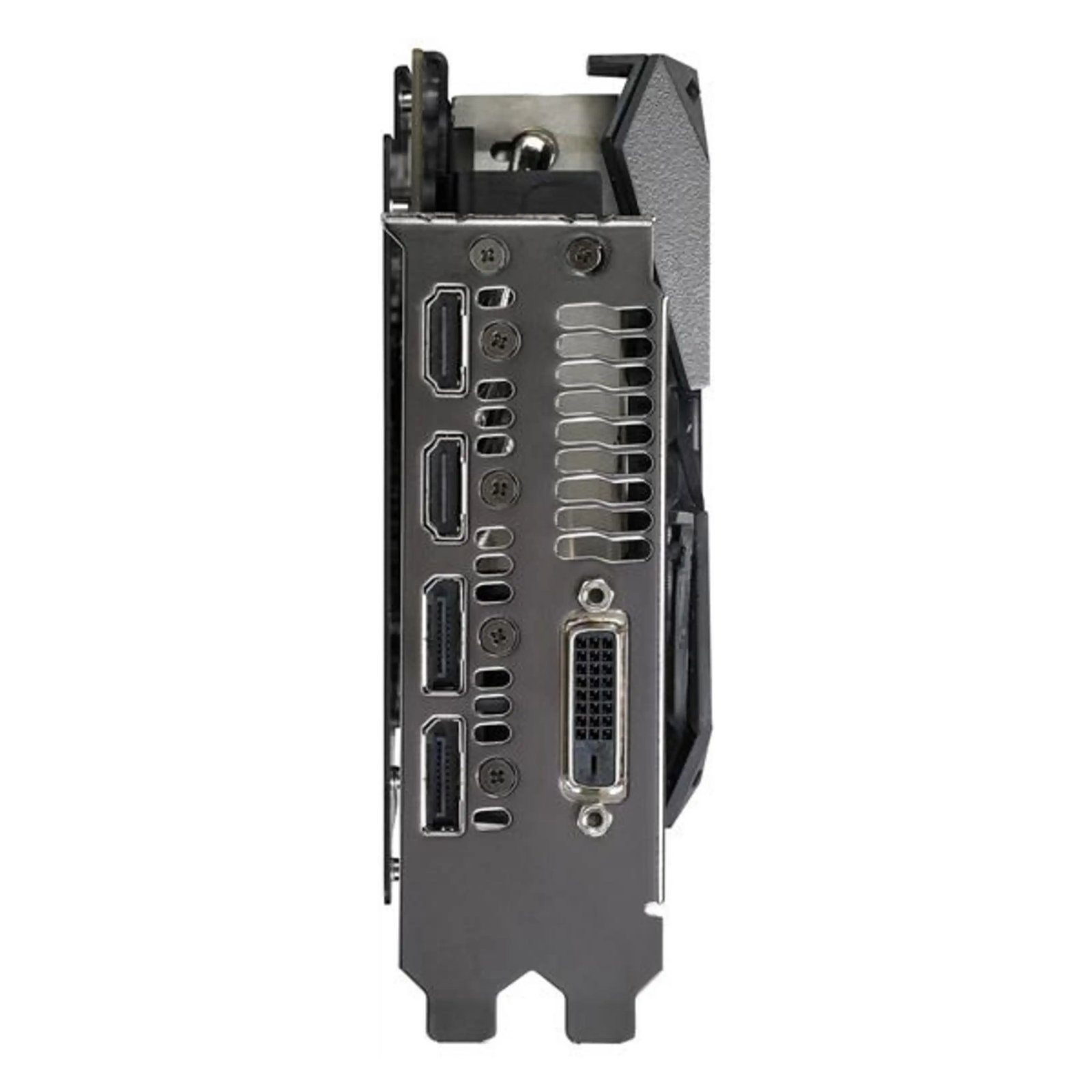

Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 2× |
| DVI | 1× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 298 mm |
|---|---|
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
