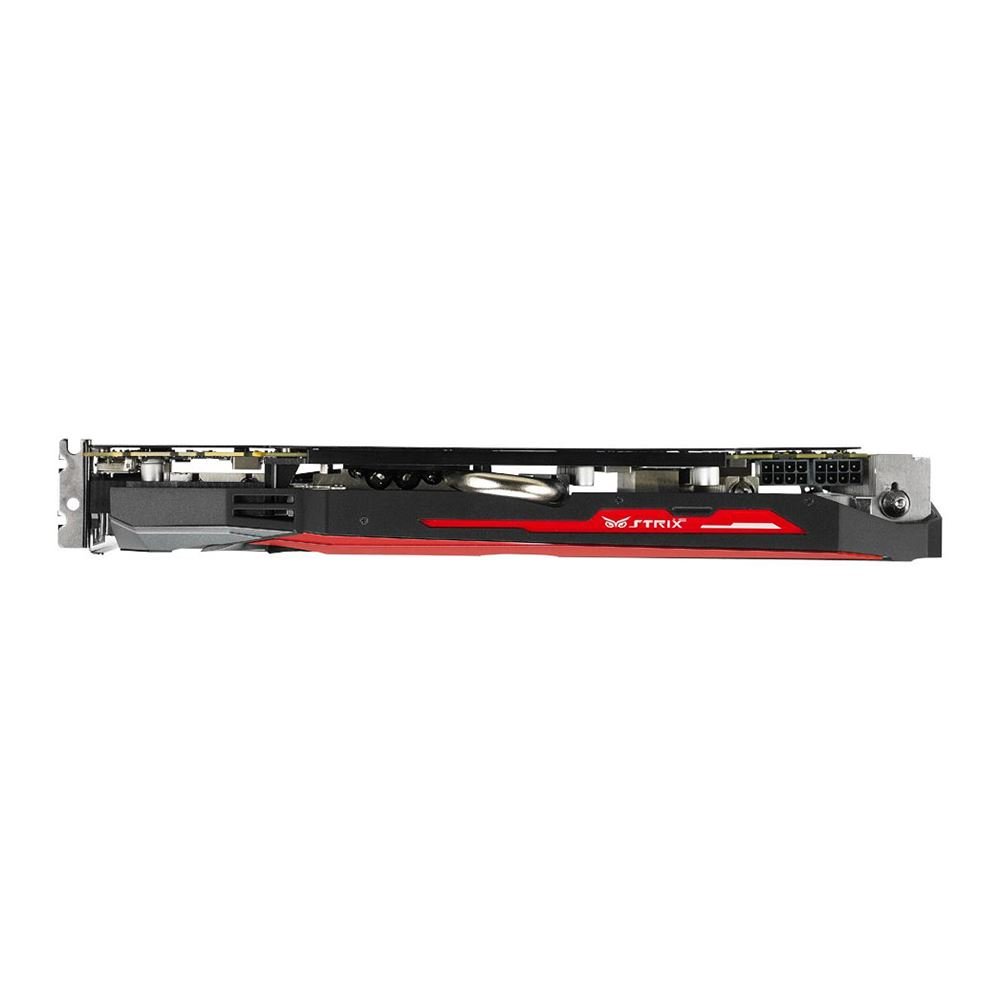

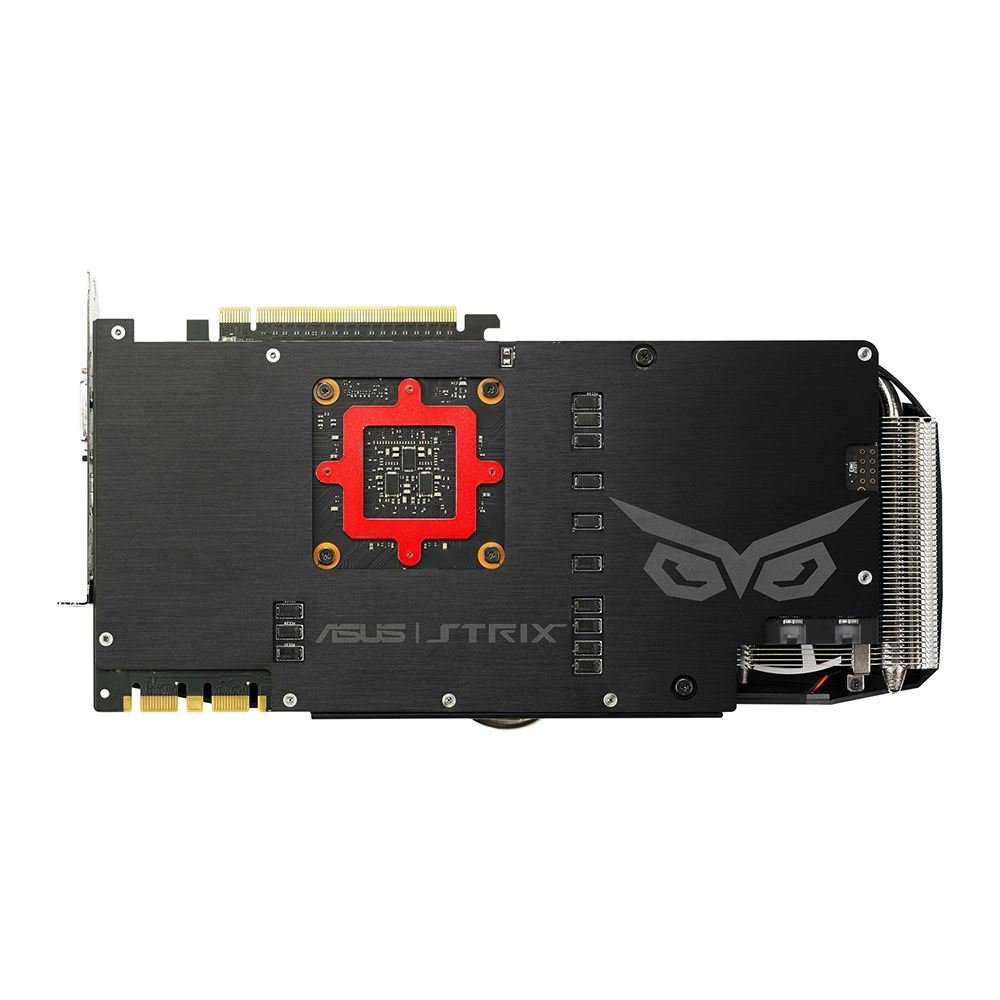

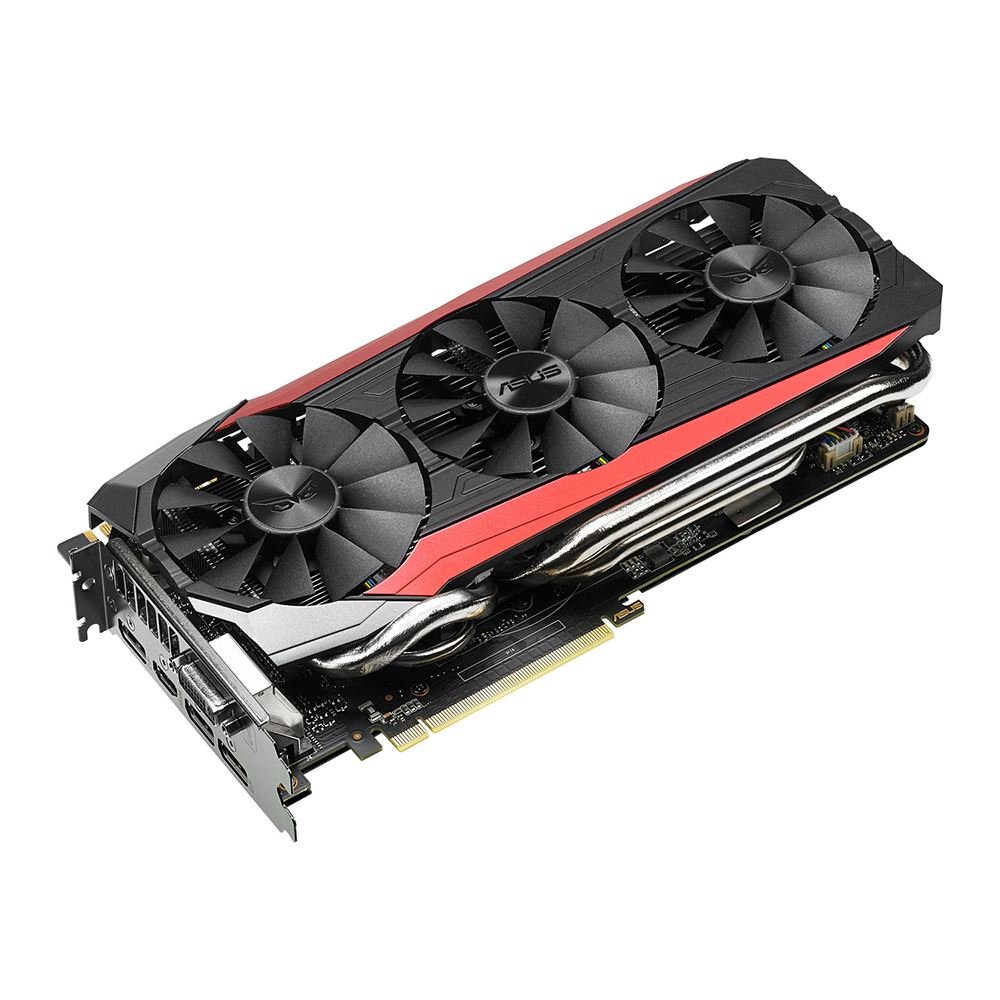

ASUS STRIX GTX 980 Ti DirectCU III
GTX 900 · STRIX GTX 980 Ti DirectCU III · GTX 980 Ti
General
| Series | GTX 900 |
|---|---|
| Model | STRIX GTX 980 Ti DirectCU III |
| Chip | GTX 980 Ti |
| Launch Year | 2015 |
| Release Date | 6/1/2015 |
| Launch MSRP | $649 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Maxwell 2.0 |
|---|---|
| GPU Die | GM200 (GM200-310-A1) |
| Foundry | TSMC · 28 nm |
| Transistors | 8.0 billion |
| Die Size | 601 mm² |
Cores
| Shading Units | 2816 |
|---|---|
| TMUs | 176 |
| ROPs | 96 |
| SM / CU | 22 |
| L2 Cache | 3 MB |
Memory
| VRAM | 6 GB |
|---|---|
| Memory Type | GDDR5 |
| Memory Bus | 384-bit |
| Memory Speed | 7 Gbps |
Clocks and Power
| Base Clock | 1000 MHz |
|---|---|
| Boost Clock | 1076 MHz |
| TDP | 250 W |
| Power Connector | 8-pin |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 6.06 TFLOPS |
|---|---|
| FP16 | 6.06 TFLOPS |
| FP64 | 0.19 TFLOPS |
Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
| DVI | 1× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 305 mm |
|---|---|
| Width | 40 mm |
| Height | 152 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 (12_1) Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | 1x NVENC (5th Gen) 1x NVDEC (1st Gen) |
| Encoding | H.265 (4K YUV 4:2:0) H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless) |
| Decoding | H.265 (8bit 4:2:0 / 10bit 4:2:0) H.264 (8bit 4:2:0) VP9 (8bit) VP8 VC-1 MPEG-2 MPEG-1 |
