ASUS TUF Gaming RTX 5070 Ti White OC Edition

RTX 50 · TUF Gaming RTX 5070 Ti White OC Edition · RTX 5070 Ti

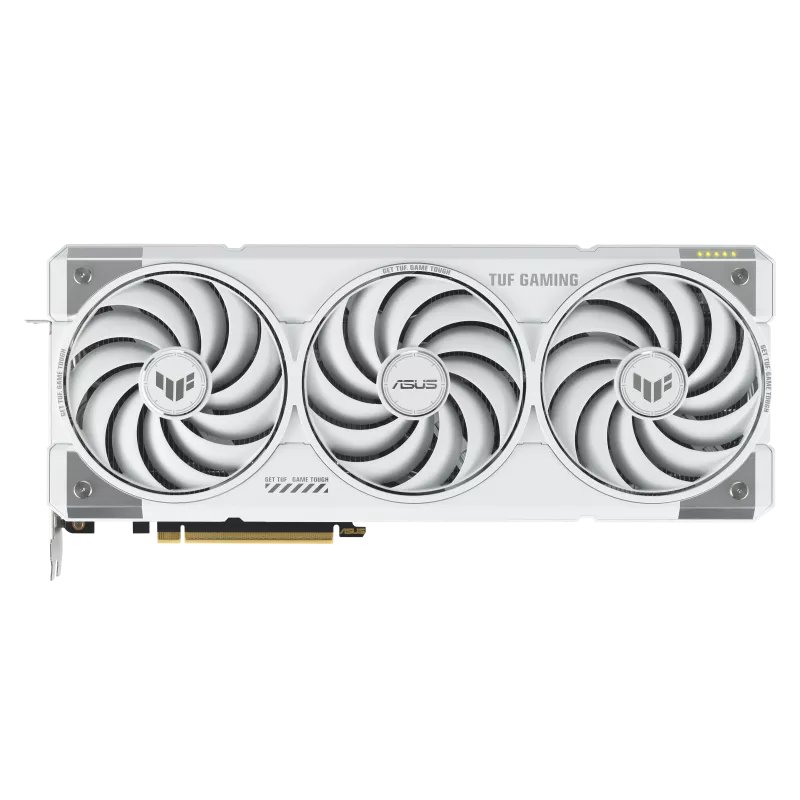

ASUS TUF Gaming RTX 5070 Ti White OC Edition product image

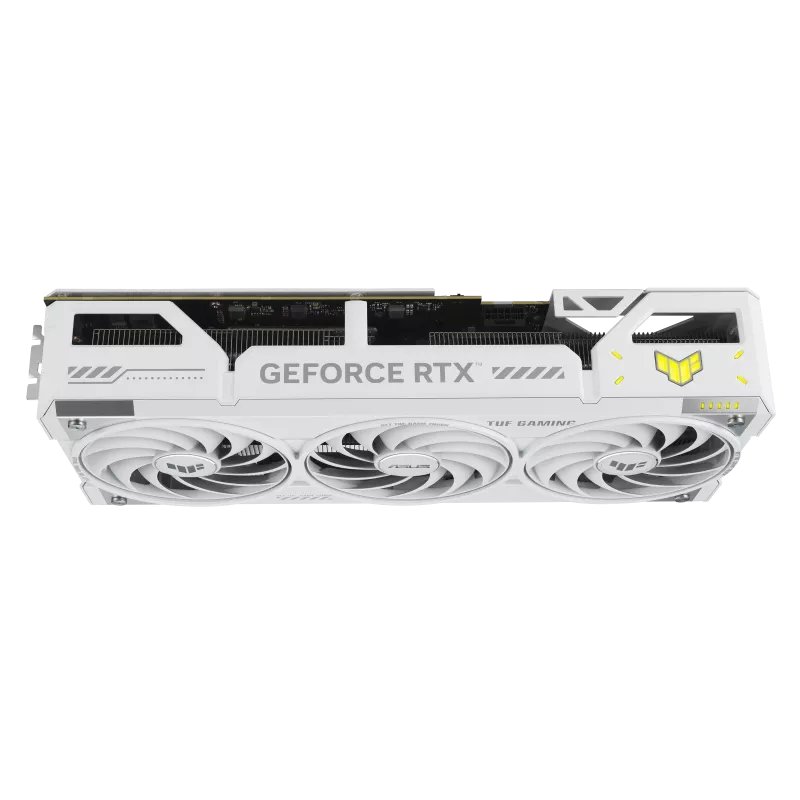

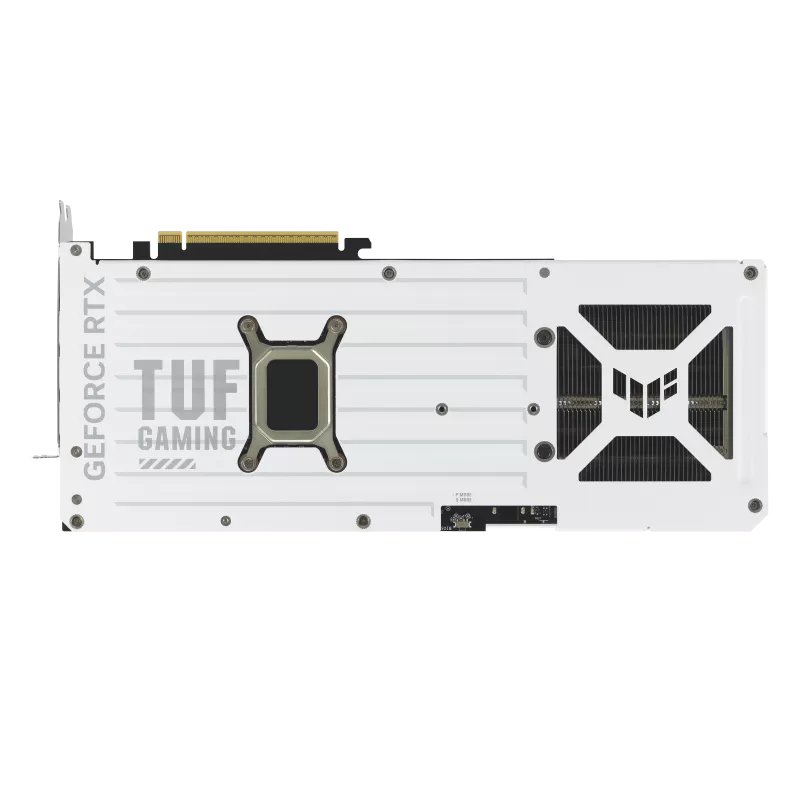

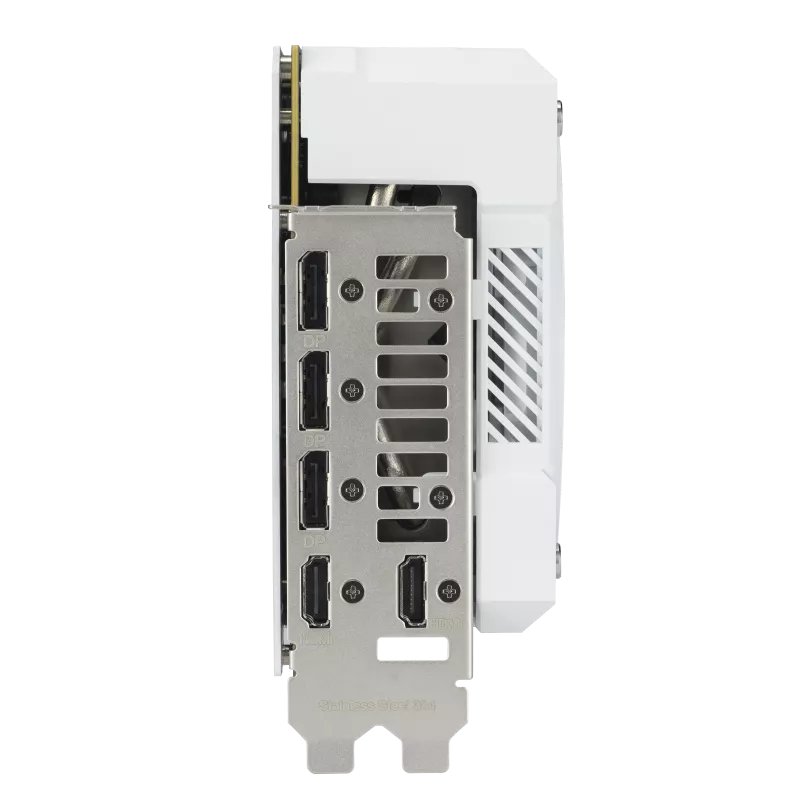

ASUS TUF Gaming RTX 5070 Ti White OC Edition product image 1ASUS TUF Gaming RTX 5070 Ti White OC Edition product image 2ASUS TUF Gaming RTX 5070 Ti White OC Edition product image 3ASUS TUF Gaming RTX 5070 Ti White OC Edition product image 4

General

SeriesRTX 50
ModelTUF Gaming RTX 5070 Ti White OC Edition
ChipRTX 5070 Ti
Launch Year2025
Release Date2/20/2025
Launch MSRP$749
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureBlackwell 2.0
GPU DieGB203 (GB203-300-A1)
FoundryTSMC · 5 nm
Transistors45.6 billion
Die Size378 mm²

Cores

Shading Units8960
TMUs280
ROPs96
SM / CU70
Tensor Cores280
RT Cores70
L2 Cache48 MB

Memory

VRAM16 GB
Memory TypeGDDR7
Memory Bus256-bit
Memory Speed28 Gbps

Clocks and Power

Base Clock2300 MHz
Boost Clock2588 MHz
TDP300 W
Power Connector12V-2x6
Recommended PSU700 W

Compute (TFLOPS)

FP3244.8 TFLOPS
FP1644.8 TFLOPS
FP640.7 TFLOPS

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length329 mm
Width63 mm
Height140 mm
Slot Width3.1 slot

Interface

PCIe Version5.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 12.8
Vulkan 1.3
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
Hardware Encoder
2x NVENC (9th Gen, max 8 sessions)
1x NVDEC (6th Gen)
Encoding
AV1 (YUV 4:2:0)
H.265 (4K YUV 4:2:0/4:2:2/4:4:4, 4K Lossless, 8K, HEVC 10bit, HEVC B Frame)
H.264 (YUV 4:2:0/4:2:2/4:4:4, Lossless)
Decoding
AV1 (8bit/10bit)
H.265 (8/10/12bit 4:2:0, 8/10bit 4:2:2, 8/10/12bit 4:4:4)
H.264 (8/10bit 4:2:0, 8/10bit 4:2:2)
VP9 (8/10/12bit)
VP8
VC-1
MPEG-2
MPEG-1
