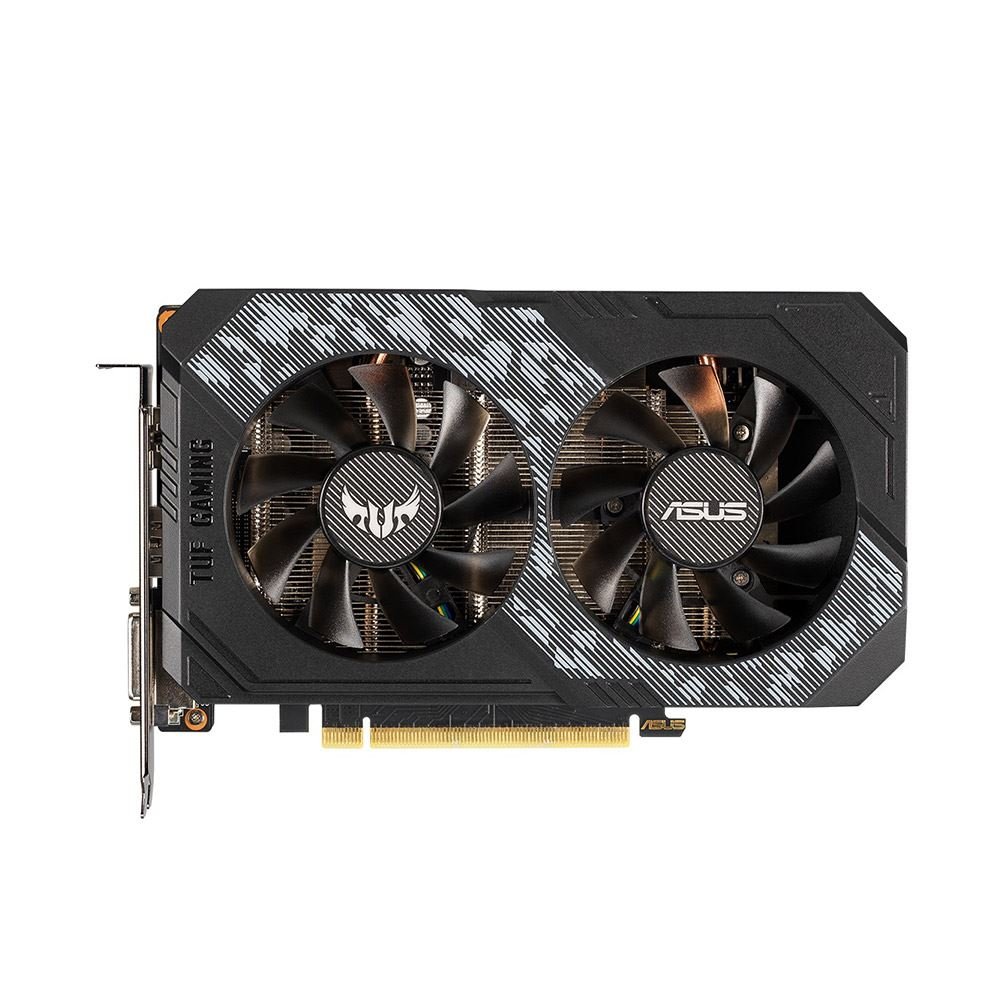

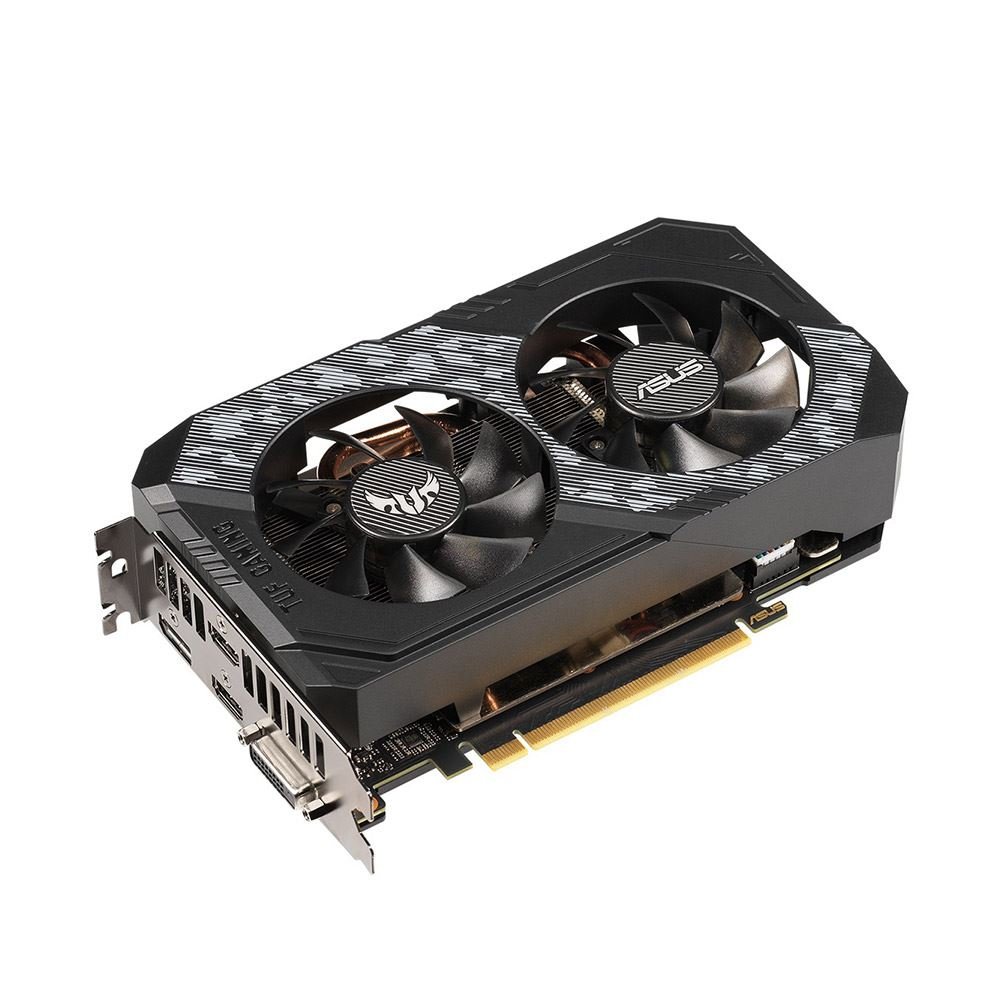

ASUS TUF RTX 2060 GAMING
RTX 20 · TUF RTX 2060 GAMING · RTX 2060 V2
General
| Series | RTX 20 |
|---|---|
| Model | TUF RTX 2060 GAMING |
| Chip | RTX 2060 V2 |
| Launch Year | 2020 |
| Release Date | 1/10/2020 |
| Launch MSRP | $349 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Turing |
|---|---|
| GPU Die | TU104 (TU104-150-KC-A1) |
| Foundry | TSMC · 12 nm |
| Transistors | 13.6 billion |
| Die Size | 545 mm² |
Cores
| Shading Units | 1920 |
|---|---|
| TMUs | 120 |
| ROPs | 48 |
| SM / CU | 30 |
| Tensor Cores | 240 |
| RT Cores | 30 |
| L2 Cache | 3 MB |
Memory
| VRAM | 6 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 192-bit |
| Memory Speed | 14 Gbps |
Clocks and Power
| Base Clock | 1365 MHz |
|---|---|
| Boost Clock | 1680 MHz |
| TDP | 160 W |
| Power Connector | 8-pin |
| Recommended PSU | 450 W |
Compute (TFLOPS)
| FP32 | 6.45 TFLOPS |
|---|---|
| FP16 | 12.9 TFLOPS |
| FP64 | 0.2 TFLOPS |

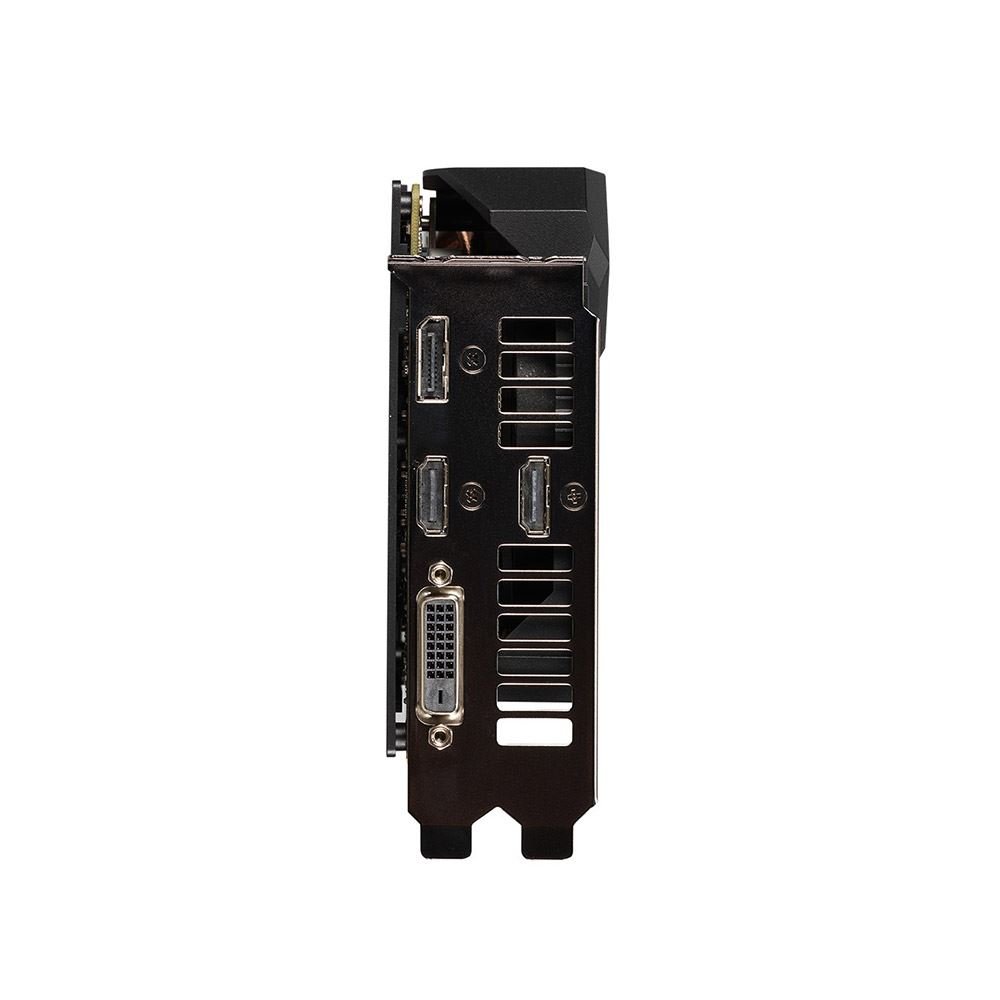

Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 1× |
| DVI | 1× |
Cooling
| Fan Count | 2 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 204 mm |
|---|---|
| Width | 46 mm |
| Height | 125 mm |
| Slot Width | 2 slot |
Interface
| PCIe Version | 3.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) CUDA 7.5 Vulkan 1.4 OpenCL 3.0 OpenGL 4.6 Shader Model 6.9 |
|---|---|
| Hardware Encoder | 1x NVENC (6th Gen) 1x NVDEC (4th Gen) |
| Encoding | H.265 (4K YUV 4:2:0, 4K YUV 4:4:4, 4K Lossless, 8K) H.264 (YUV 4:2:0, YUV 4:4:4, Lossless) |
| Decoding | H.265 (8/10/12bit 4:2:0, 8/10bit 4:4:4) H.264 (8bit 4:2:0) VP9 (8/10bit) VP8 VC-1 MPEG-2 MPEG-1 |
