ASUS TUF RTX 3060 Ti GAMING

RTX 30 · TUF RTX 3060 Ti GAMING · RTX 3060 Ti

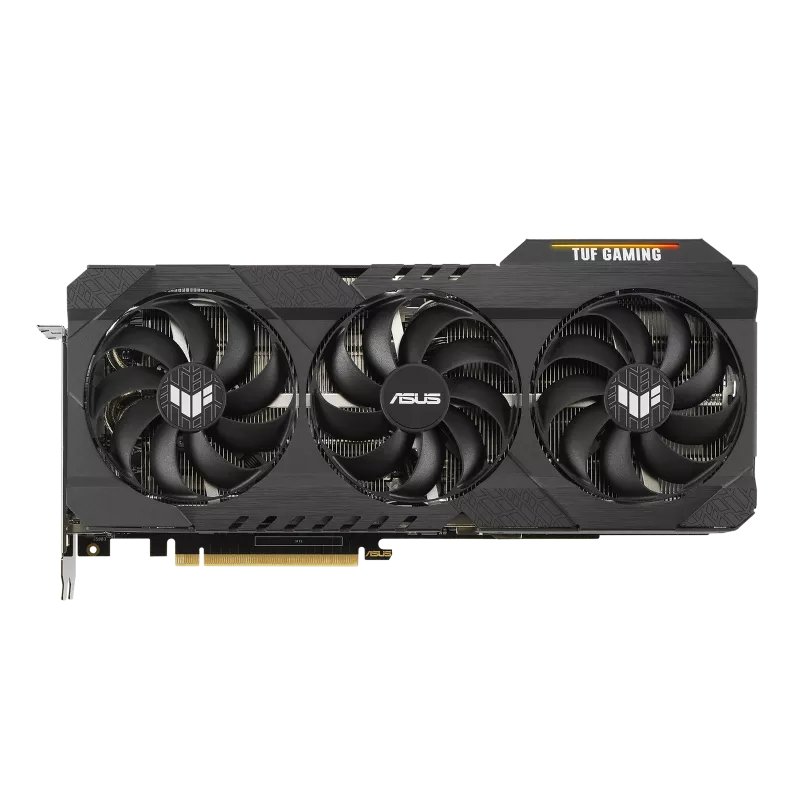

ASUS TUF RTX 3060 Ti GAMING product image

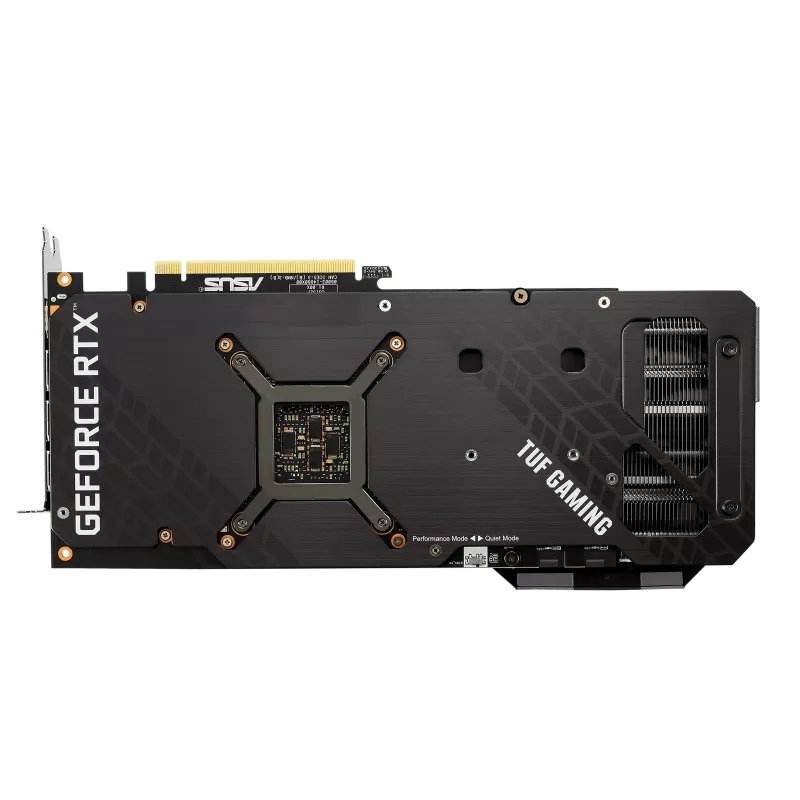

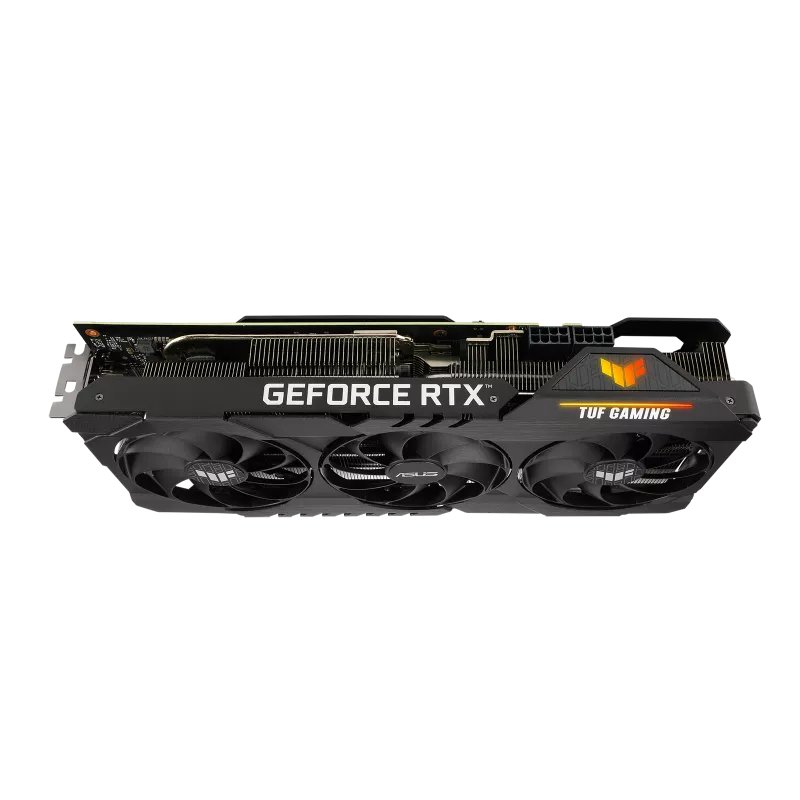

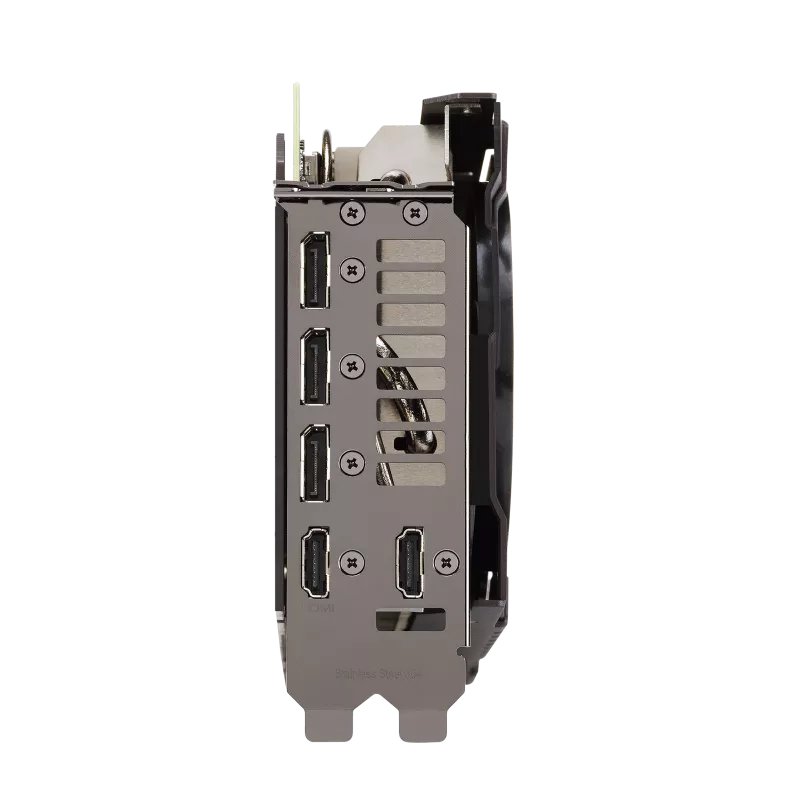

ASUS TUF RTX 3060 Ti GAMING product image 1ASUS TUF RTX 3060 Ti GAMING product image 2ASUS TUF RTX 3060 Ti GAMING product image 3ASUS TUF RTX 3060 Ti GAMING product image 4

General

SeriesRTX 30
ModelTUF RTX 3060 Ti GAMING
ChipRTX 3060 Ti
Launch Year2020
Release Date12/1/2020
Launch MSRP$399
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureAmpere
GPU DieGA104 (GA104-200-A1 / GA104-202-A1)
FoundrySamsung · 8 nm
Transistors17.4 billion
Die Size392 mm²

Cores

Shading Units4864
TMUs152
ROPs80
SM / CU38
Tensor Cores152
RT Cores38
L2 Cache4 MB

Memory

VRAM8 GB
Memory TypeGDDR6
Memory Bus256-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1410 MHz
Boost Clock1665 MHz
TDP200 W
Power Connector8-pin
Recommended PSU550 W

Compute (TFLOPS)

FP3216.2 TFLOPS
FP1616.2 TFLOPS
FP640.25 TFLOPS

Display Outputs

HDMI2×
DisplayPort3×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length301 mm
Width54 mm
Height143 mm
Slot Width2.7 slot

Interface

PCIe Version4.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 Ultimate (12_2)
CUDA 8.6
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.9
Hardware Encoder
1x NVENC (7th Gen, max. Sessions: 8)
1x NVDEC (5th Gen)
Encoding
H.265 (4K YUV 4:2:0 / 4K YUV 4:4:4 / 4K Lossless / 8K / HEVC 10bit support / HEVC B Frame support)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
AV1 (8bit / 10bit)
H.265 (8bit 4:2:0 / 10bit 4:2:0 / 12bit 4:2:0 / 8bit 4:4:4 / 10bit 4:4:4 / 12bit 4:4:4)
H.264 (8bit 4:2:0)
VP9 (8bit / 10bit / 12bit)
VP8
VC-1
MPEG-2
MPEG-1
