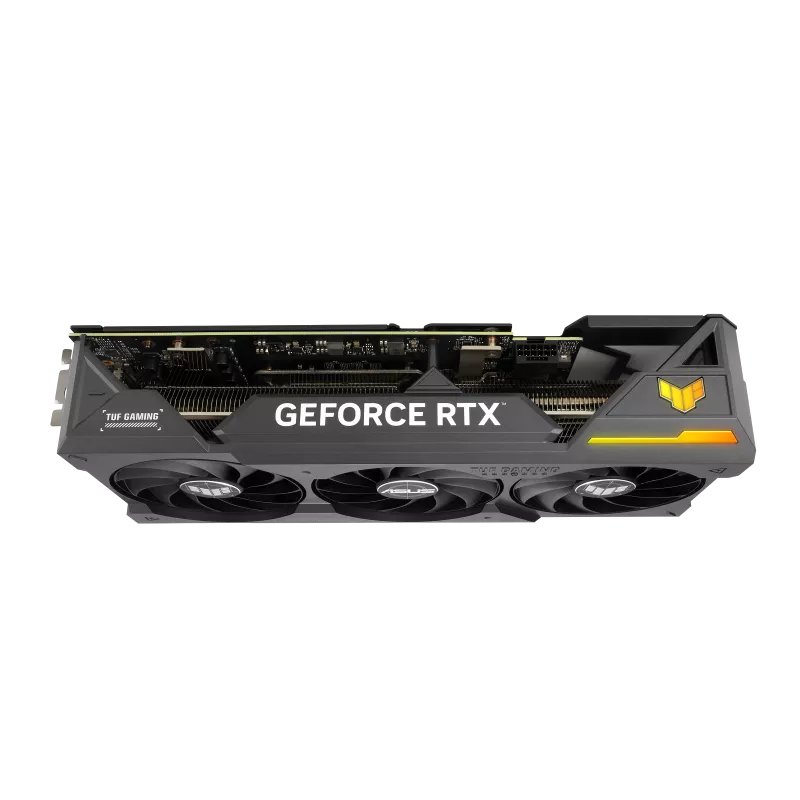

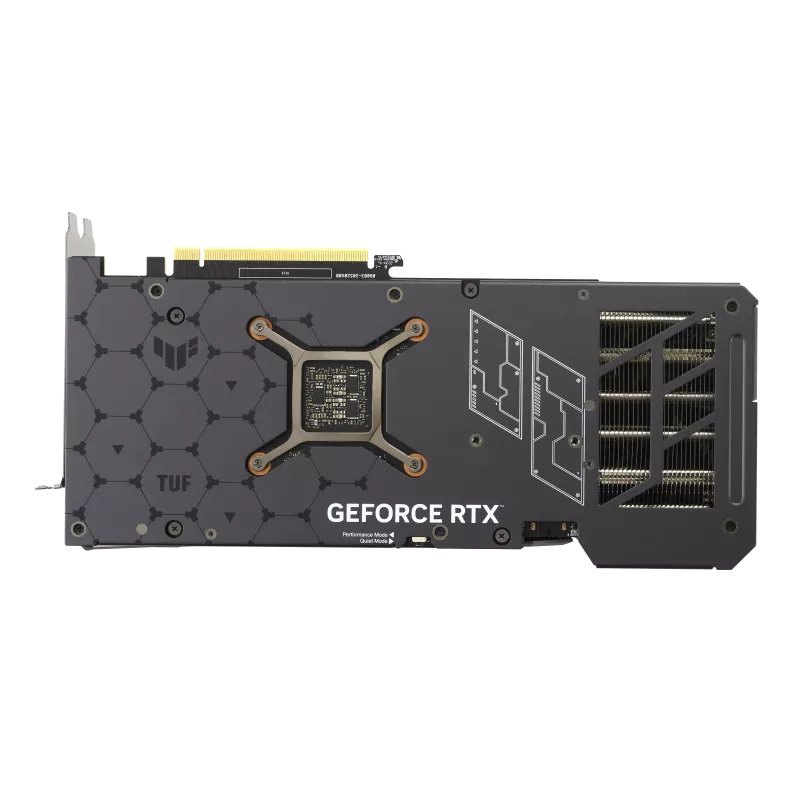

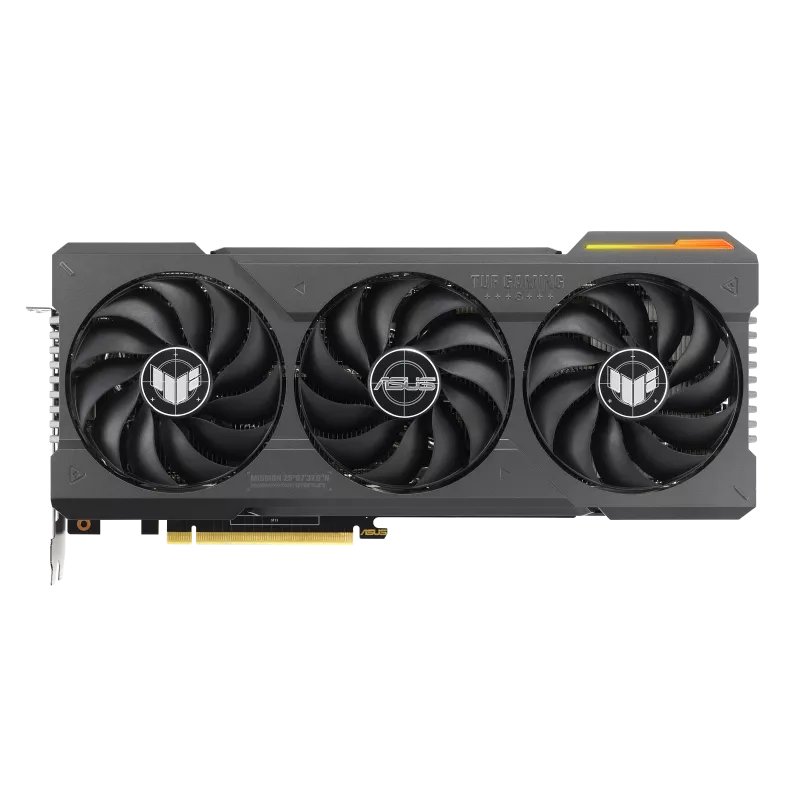

ASUS TUF RTX 4070 Ti GAMING
RTX 40 · TUF RTX 4070 Ti GAMING · RTX 4070 Ti
General
| Series | RTX 40 |
|---|---|
| Model | TUF RTX 4070 Ti GAMING |
| Chip | RTX 4070 Ti |
| Launch Year | 2023 |
| Release Date | 1/3/2023 |
| Launch MSRP | $799 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | Ada Lovelace |
|---|---|
| GPU Die | AD104 (AD104-400-A1) |
| Foundry | TSMC · 5 nm |
| Transistors | 35.8 billion |
| Die Size | 294 mm² |
Cores
| Shading Units | 7680 |
|---|---|
| TMUs | 240 |
| ROPs | 80 |
| SM / CU | 60 |
| Tensor Cores | 240 |
| RT Cores | 60 |
| L2 Cache | 48 MB |
Memory
| VRAM | 12 GB |
|---|---|
| Memory Type | GDDR6X |
| Memory Bus | 192-bit |
| Memory Speed | 21 Gbps |
Clocks and Power
| Base Clock | 2310 MHz |
|---|---|
| Boost Clock | 2610 MHz |
| TDP | 285 W |
| Power Connector | 12V-2x6 |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 40.09 TFLOPS |
|---|---|
| FP16 | 40.09 TFLOPS |
| FP64 | 0.63 TFLOPS |
Display Outputs
| HDMI | 2× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 305 mm |
|---|---|
| Width | 65 mm |
| Height | 138 mm |
| Slot Width | 3.3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
