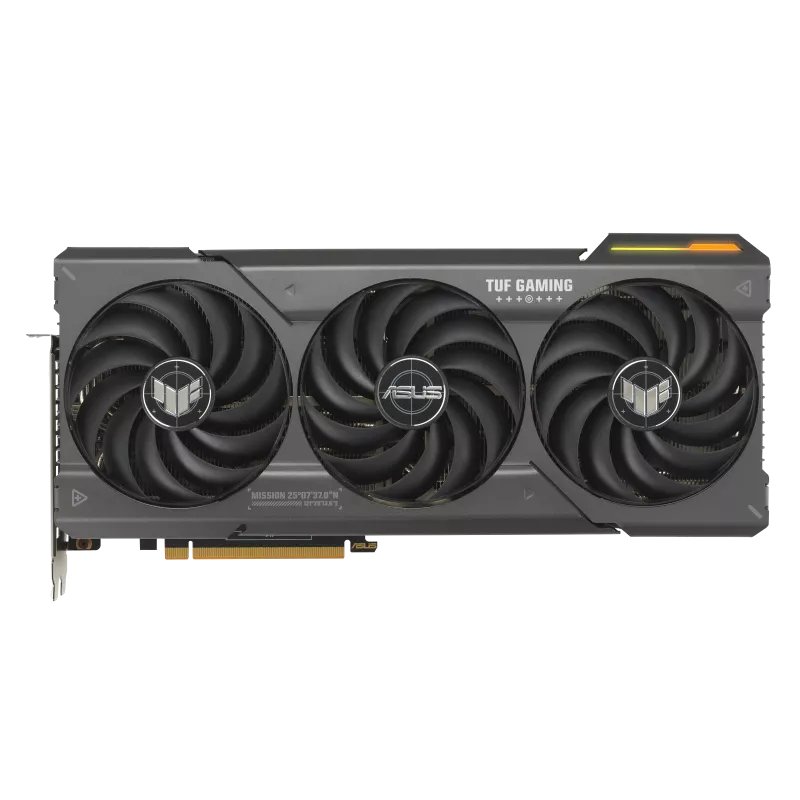

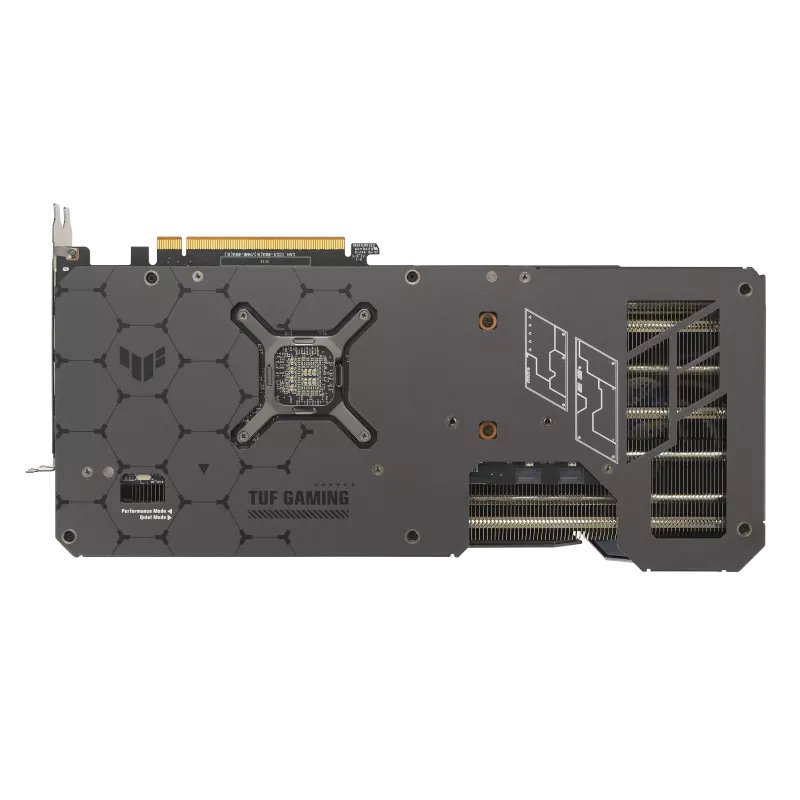

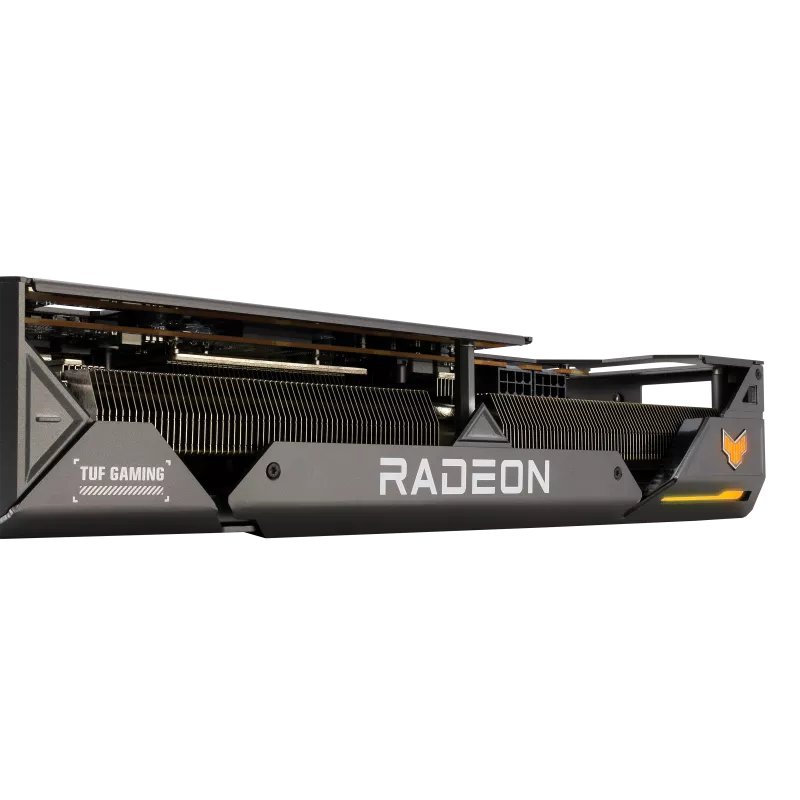

ASUS TUF RX 7900 GRE GAMING OC
RX 7000 · TUF RX 7900 GRE GAMING OC · RX 7900 GRE
General
| Series | RX 7000 |
|---|---|
| Model | TUF RX 7900 GRE GAMING OC |
| Chip | RX 7900 GRE |
| Launch Year | 2023 |
| Release Date | 7/27/2023 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Architecture
| Architecture | RDNA 3.0 |
|---|---|
| GPU Die | Navi 31 (Navi 31 XL) |
| Foundry | TSMC · 5 nm |
| Transistors | 57.7 billion |
| Die Size | 529 mm² |
Cores
| Shading Units | 5120 |
|---|---|
| TMUs | 320 |
| ROPs | 160 |
| SM / CU | 80 |
| Tensor Cores | 160 |
| RT Cores | 80 |
| L2 Cache | 6 MB |
Memory
| VRAM | 16 GB |
|---|---|
| Memory Type | GDDR6 |
| Memory Bus | 256-bit |
| Memory Speed | 18 Gbps |
Clocks and Power
| Base Clock | 1287 MHz |
|---|---|
| Boost Clock | 2333 MHz |
| TDP | 260 W |
| Power Connector | 8-pin |
| Recommended PSU | 600 W |
Compute (TFLOPS)
| FP32 | 45.98 TFLOPS |
|---|---|
| FP16 | 91.96 TFLOPS |
| FP64 | 1.44 TFLOPS |

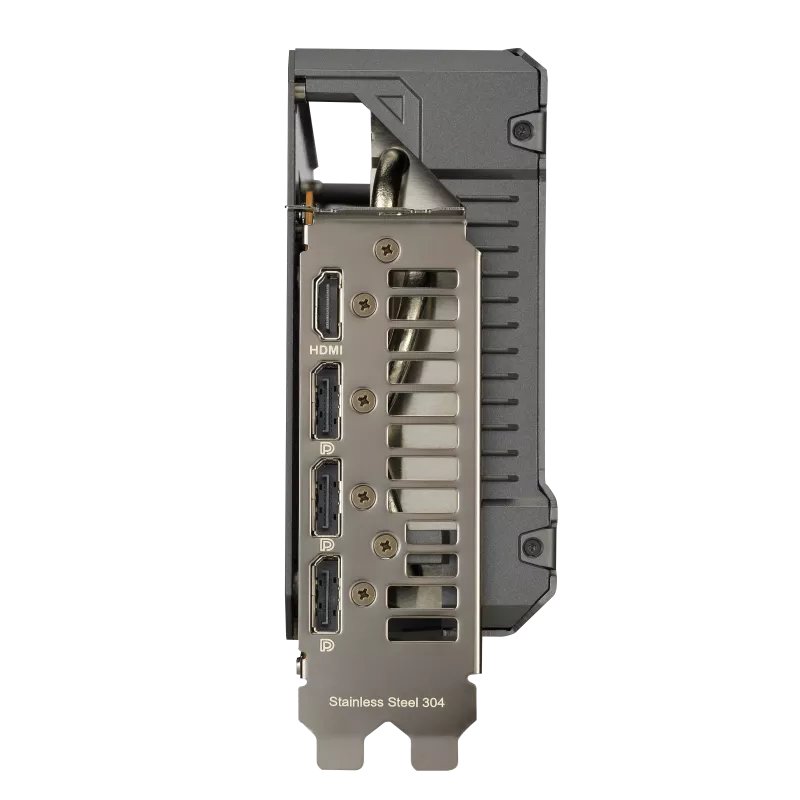

Display Outputs
| HDMI | 1× |
|---|---|
| DisplayPort | 3× |
Cooling
| Fan Count | 3 |
|---|---|
| Liquid Cooling | ✗ No |
Physical
| Length | 320 mm |
|---|---|
| Width | 59 mm |
| Height | 151 mm |
| Slot Width | 3 slot |
Interface
| PCIe Version | 4.0 |
|---|---|
| PCIe Lanes | x16 |
Software and Technologies
| API Support | DirectX 12 Ultimate (12_2) Vulkan 1.4 OpenCL 2.2 OpenGL 4.6 Shader Model 6.8 |
|---|---|
| Hardware Encoder | VCN 4.0 |
| Encoding | AV1 H.265 H.264 |
| Decoding | AV1 H.265 H.264 VP9 |
