ASUS TUF X3 GTX 1660 SUPER GAMING OC

GTX 16 · TUF X3 GTX 1660 SUPER GAMING OC · GTX 1660 Super

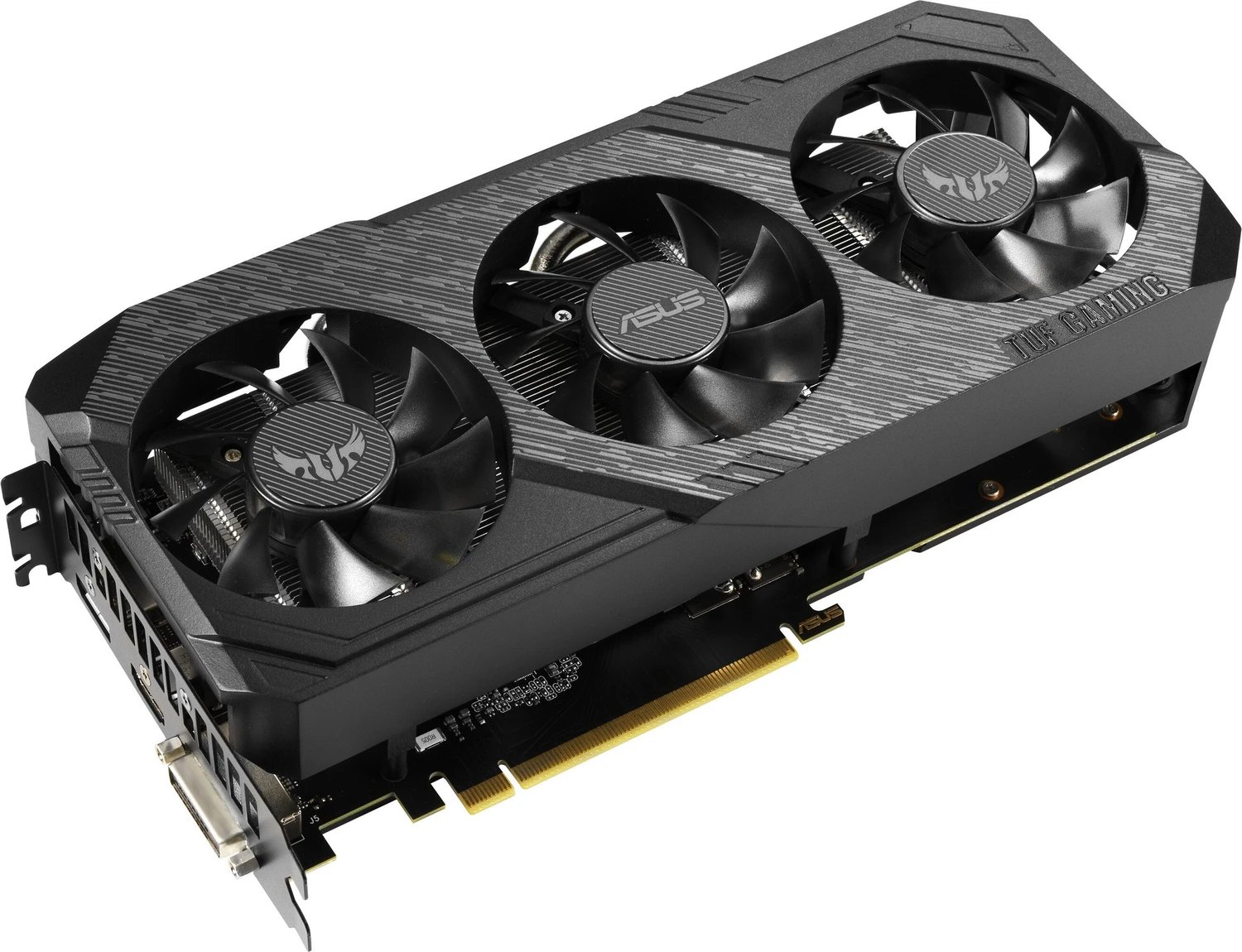

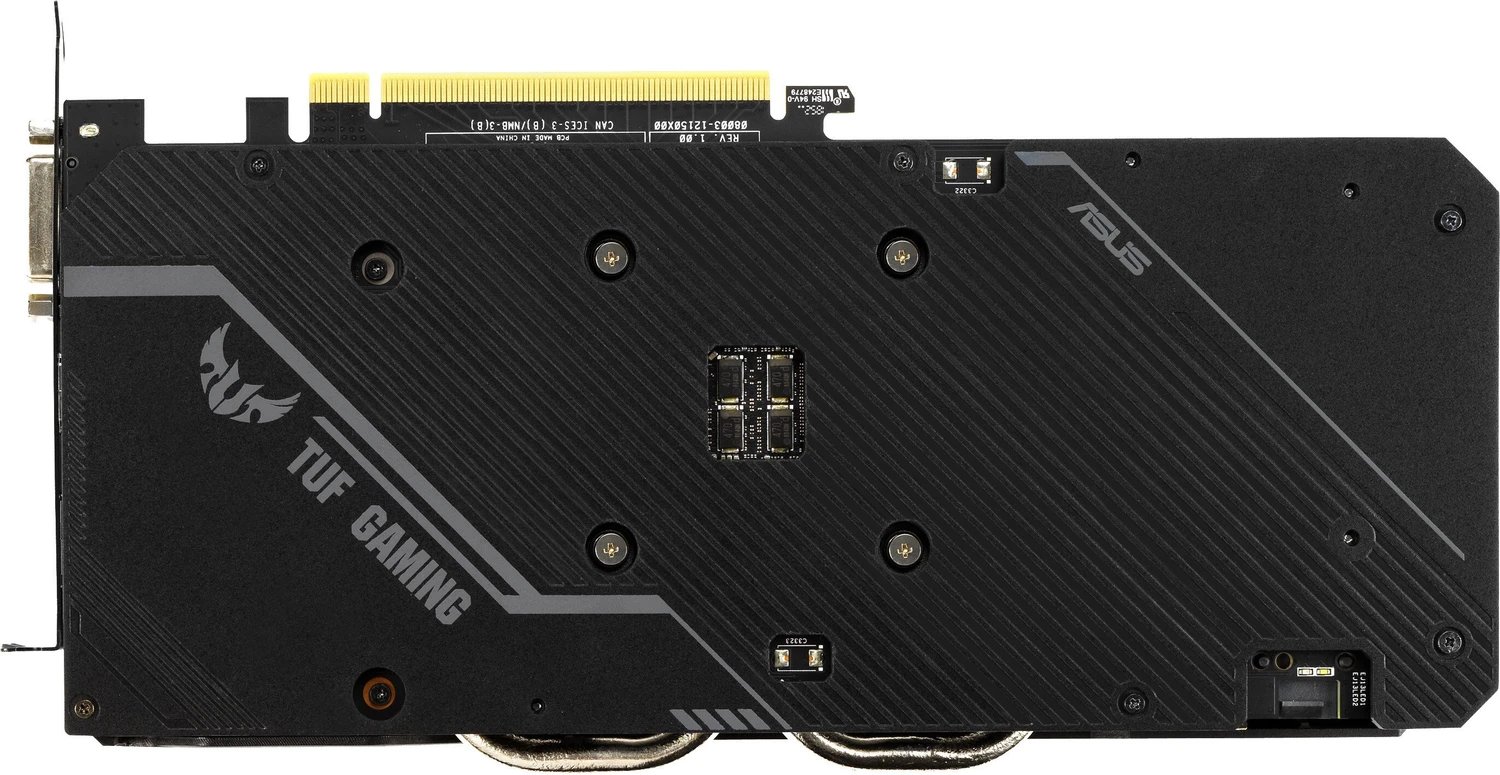

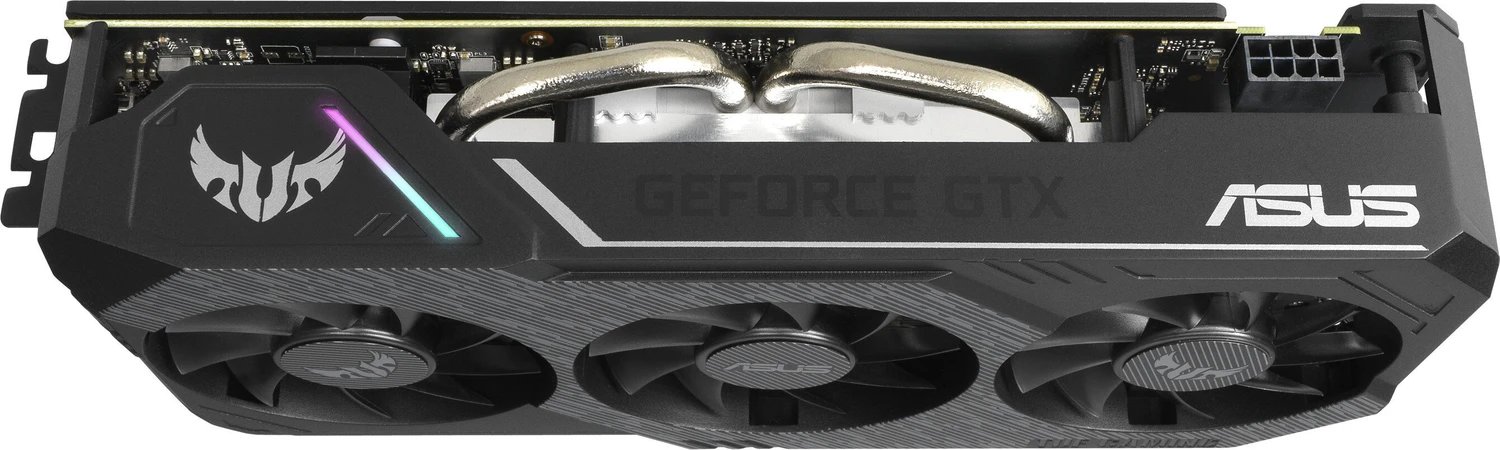

ASUS TUF X3 GTX 1660 SUPER GAMING OC product image
ASUS TUF X3 GTX 1660 SUPER GAMING OC product image 1ASUS TUF X3 GTX 1660 SUPER GAMING OC product image 2ASUS TUF X3 GTX 1660 SUPER GAMING OC product image 3ASUS TUF X3 GTX 1660 SUPER GAMING OC product image 4

General

SeriesGTX 16
ModelTUF X3 GTX 1660 SUPER GAMING OC
ChipGTX 1660 Super
Launch Year2019
Release Date10/29/2019
Launch MSRP$229
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU116 (TU116-300-A1)
FoundryTSMC · 12 nm
Transistors6.6 billion
Die Size284 mm²

Cores

Shading Units1408
TMUs88
ROPs48
SM / CU22
L2 Cache2 MB

Memory

VRAM6 GB
Memory TypeGDDR6
Memory Bus192-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1530 MHz
Boost Clock1830 MHz
TDP125 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP325.03 TFLOPS
FP1610.05 TFLOPS
FP640.16 TFLOPS

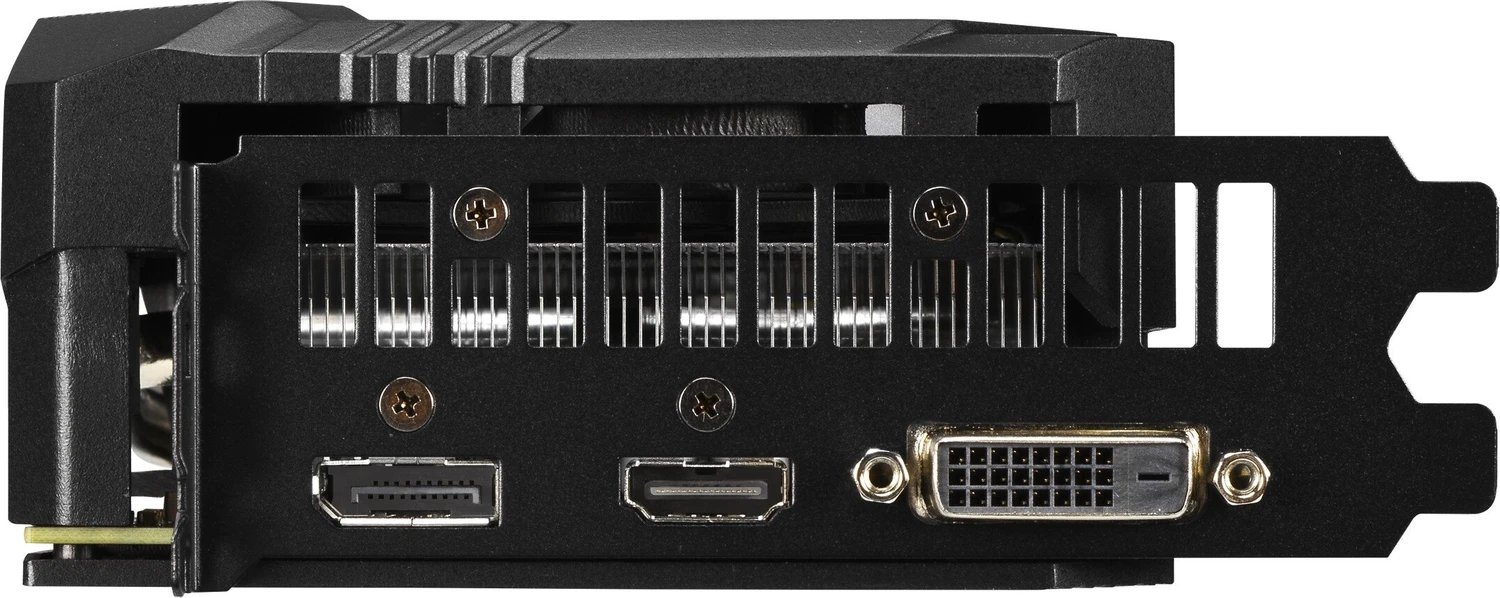

Display Outputs

HDMI1×
DisplayPort1×
DVI1×

Cooling

Fan Count3
Liquid Cooling✗ No

Physical

Length264 mm
Width55 mm
Height130 mm
Slot Width3 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 (12_1)
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
