ASUS TURBO GTX 970 OC

GTX 900 · TURBO GTX 970 OC · GTX 970
ASUS TURBO GTX 970 OC product image
ASUS TURBO GTX 970 OC product image 1ASUS TURBO GTX 970 OC product image 2ASUS TURBO GTX 970 OC product image 3ASUS TURBO GTX 970 OC product image 4

General

SeriesGTX 900
ModelTURBO GTX 970 OC
ChipGTX 970
Launch Year2014
Release Date9/19/2014
Launch MSRP$329
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureMaxwell 2.0
GPU DieGM204 (GM204-200-A1)
FoundryTSMC · 28 nm
Transistors5.2 billion
Die Size398 mm²

Cores

Shading Units1664
TMUs104
ROPs56
SM / CU13
L2 Cache2 MB

Memory

VRAM4 GB
Memory TypeGDDR5
Memory Bus256-bit
Memory Speed7 Gbps

Clocks and Power

Base Clock1089 MHz
Boost Clock1228 MHz
TDP148 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP323.92 TFLOPS
FP163.92 TFLOPS
FP640.12 TFLOPS

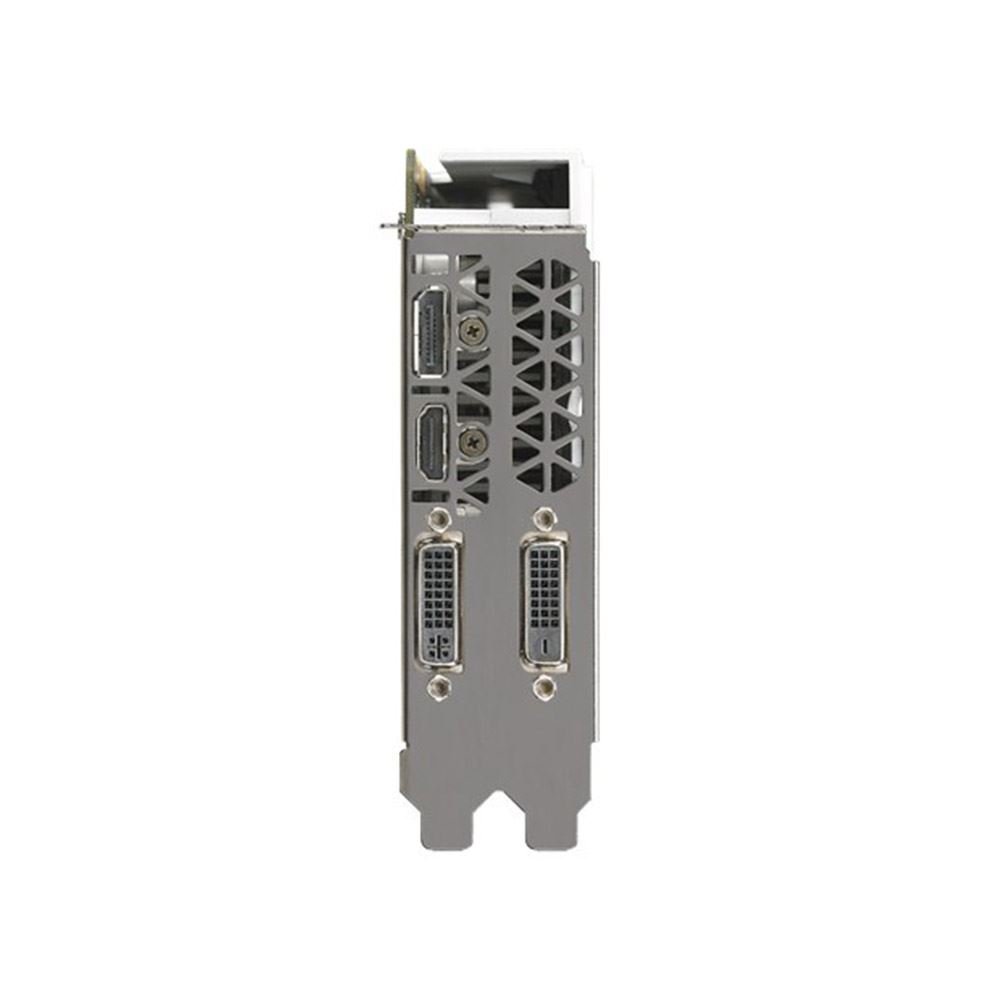

Display Outputs

HDMI1×
DisplayPort1×
DVI2×

Cooling

Fan Count1
Liquid Cooling✗ No

Physical

Length264 mm
Width37 mm
Height121 mm
Slot Width2 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 (12_1)
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
Hardware Encoder
1x NVENC (5th Gen)
1x NVDEC (1st Gen)
Encoding
H.265 (4K YUV 4:2:0)
H.264 (YUV 4:2:0 / YUV 4:4:4 / Lossless)
Decoding
H.265 (8bit 4:2:0 / 10bit 4:2:0)
H.264 (8bit 4:2:0)
VP9 (8bit)
VP8
VC-1
MPEG-2
MPEG-1
