MSI GTX 1660 SUPER VENTUS

GTX 16 · GTX 1660 SUPER VENTUS · GTX 1660 Super

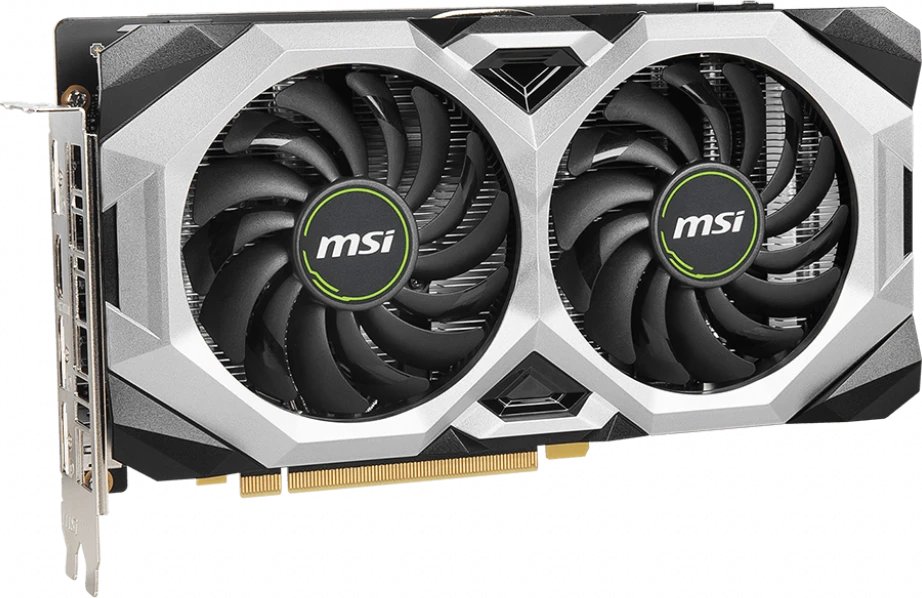

MSI GTX 1660 SUPER VENTUS product image

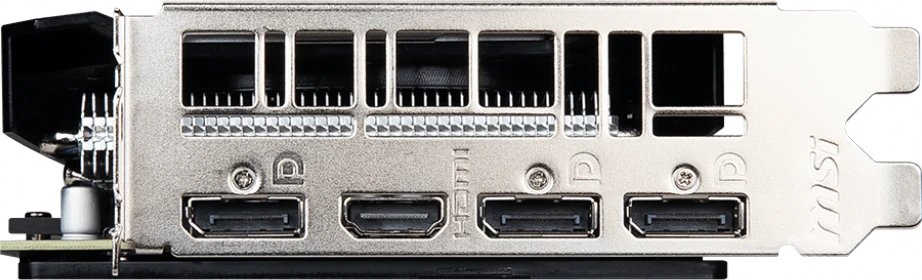

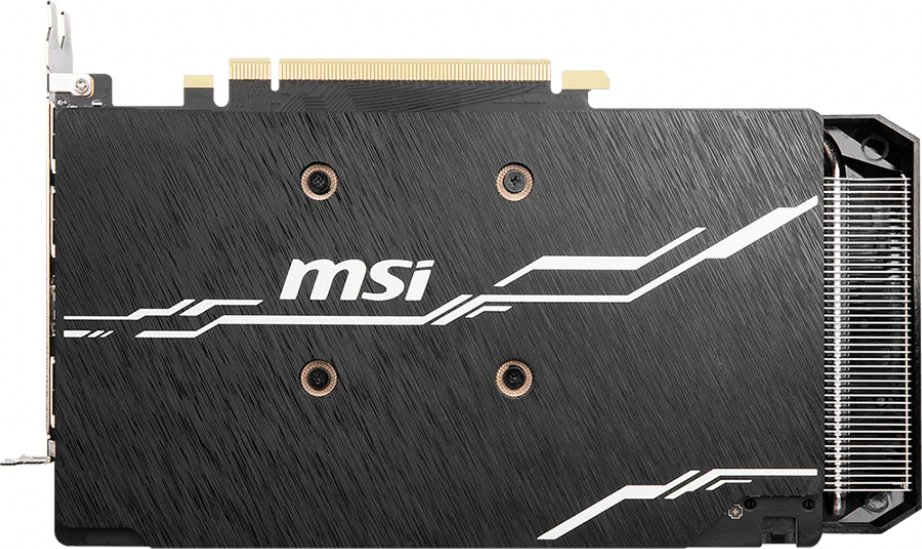

MSI GTX 1660 SUPER VENTUS product image 1MSI GTX 1660 SUPER VENTUS product image 2MSI GTX 1660 SUPER VENTUS product image 3

General

SeriesGTX 16
ModelGTX 1660 SUPER VENTUS
ChipGTX 1660 Super
Launch Year2019
Release Date10/29/2019
Launch MSRP$229
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Architecture

ArchitectureTuring
GPU DieTU116 (TU116-300-A1)
FoundryTSMC · 12 nm
Transistors6.6 billion
Die Size284 mm²

Cores

Shading Units1408
TMUs88
ROPs48
SM / CU22
L2 Cache2 MB

Memory

VRAM6 GB
Memory TypeGDDR6
Memory Bus192-bit
Memory Speed14 Gbps

Clocks and Power

Base Clock1530 MHz
Boost Clock1785 MHz
TDP125 W
Power Connector8-pin
Recommended PSU300 W

Compute (TFLOPS)

FP325.03 TFLOPS
FP1610.05 TFLOPS
FP640.16 TFLOPS

Display Outputs

HDMI1×
DisplayPort3×

Cooling

Fan Count2
Liquid Cooling✗ No

Physical

Length231 mm
Width42 mm
Height128 mm
Slot Width2 slot

Interface

PCIe Version3.0
PCIe Lanesx16

Software and Technologies

API Support
DirectX 12 (12_1)
Vulkan 1.4
OpenCL 3.0
OpenGL 4.6
Shader Model 6.8
