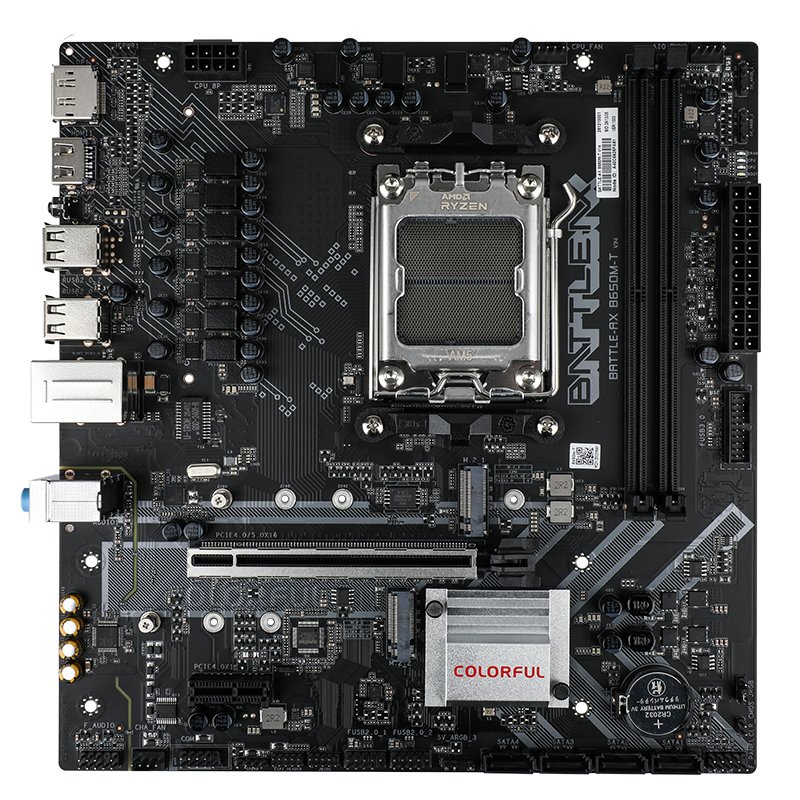

Colorful BATTLE-AX B650M-T V14
B650 · AM5 · Micro-ATX
General
| Chipset | B650 |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR5 · max 96 GB · 7200 MT/s
M.2 Slots2× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7200 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 5.0 x16 slot 1 PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
| RAID | 0 |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |

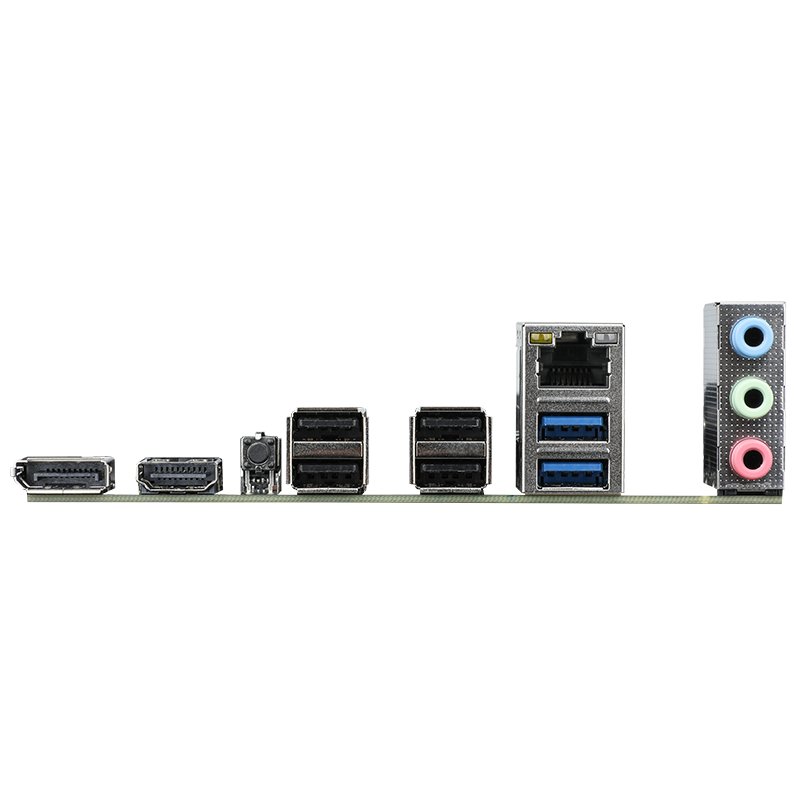

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 2× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: Provides 2 M.2 SSD slots supporting PCIe 5.0 SSD. Equipped with a 2.5G wired network card. Supports iGame Center lighting control software allowing synchronized adjustment of heatsink cooling fan and memory lighting effects. I/O backplate supports one-click BIOS upgrade. Six protection technologies ensure more stable product operation. 200 rigorous testing processes guarantee quality. PCB atomization process has been fully upgraded. |
