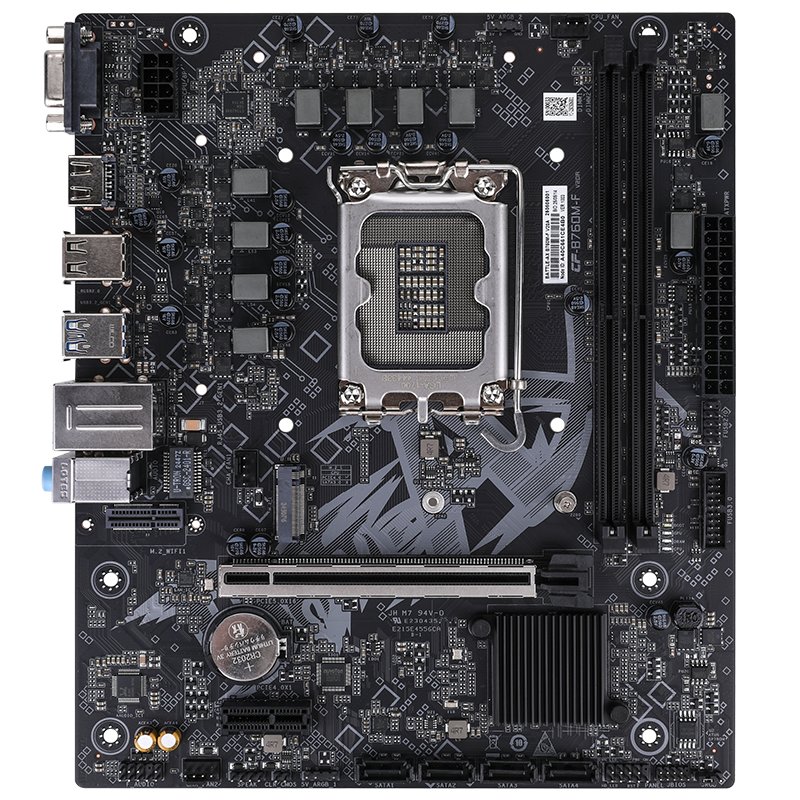

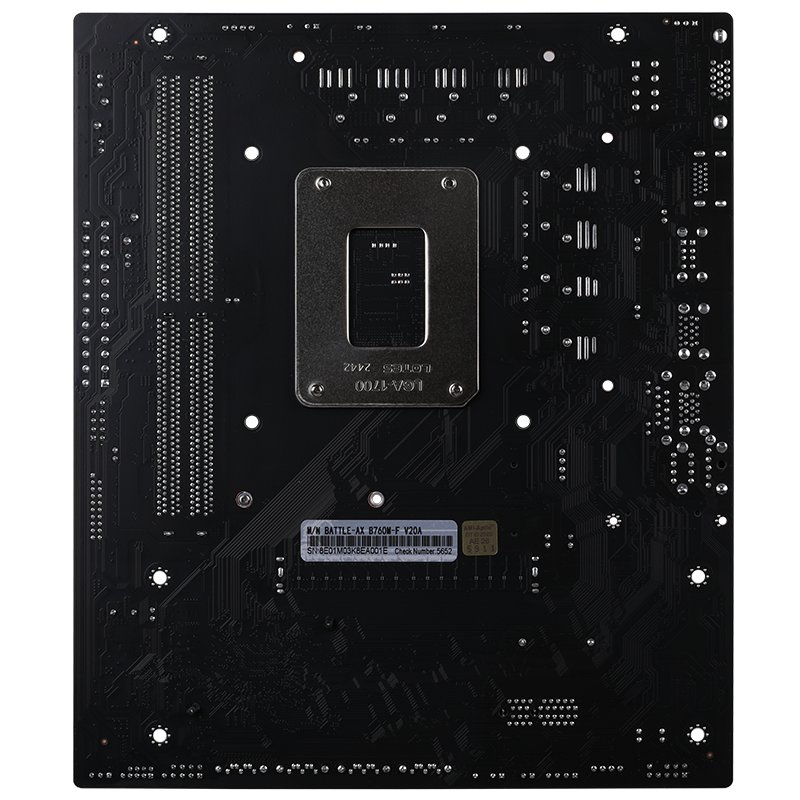

Colorful BATTLE-AX B760M-F V20A
B760 · LGA1700 · Micro-ATX
General
| Chipset | B760 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR4 · max 64 GB · 4400 MT/s
M.2 Slots1×
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 5 Gbps
NetworkLAN 1 Gbps
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4400 MT/s |
| Max RAM | 64 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 5.0 x16 slot 1 PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8111H/RTL8111M Gigabit LAN |

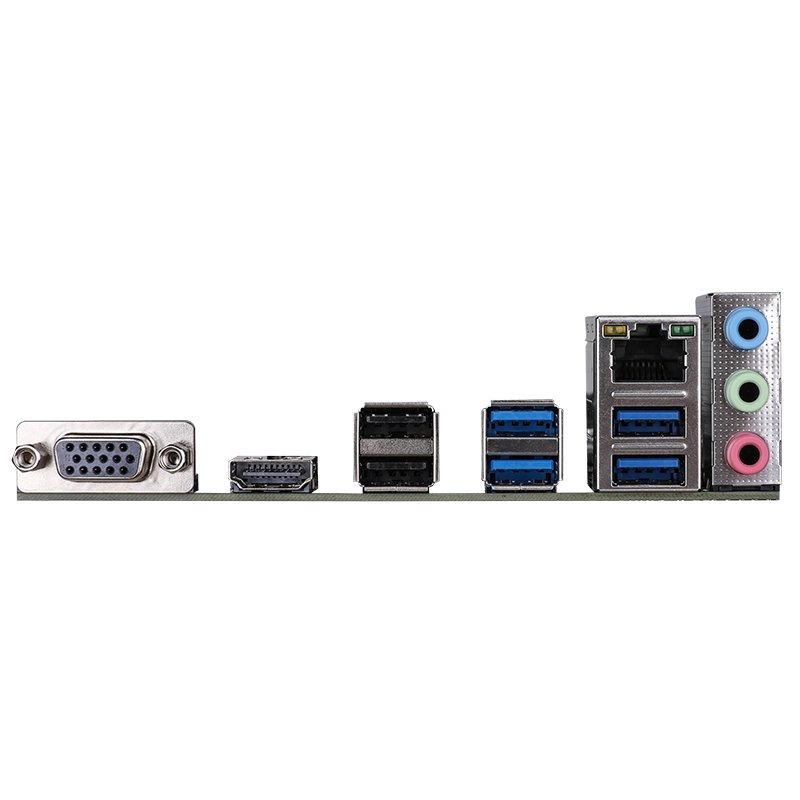

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 1× HDMI 1× 1 Gbps LAN 3× Audio jacks (3.5 mm) |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan |
| RGB Header | 2× ARGB (5V 3-pin) |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: Provides 4 USB 3.2 Gen 1 Type-A high-speed interfaces Provides 2 USB 2.0 interfaces Provides 1 PCIe 4.0 x4 M.2 SSD slot Provides 2 5V 3-pin ARGB pins supports iGame Center lighting control software Provides HDMI+VGA display interface Supports iGame Center lighting control software can synchronously adjust the lighting effects of radiator cooling fan and memory Six major protection technologies more stable product operation 200 process strict testing quality guaranteed PCB atomization process fully upgraded |
