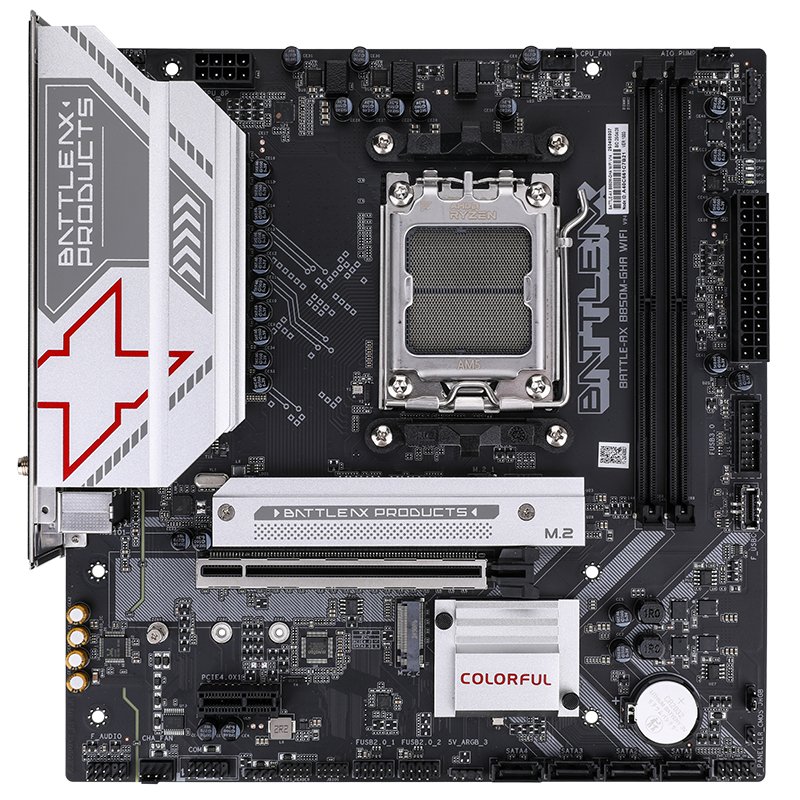

Colorful BATTLE-AX B850M-GHA WIFI V14
B850 · AM5 · Micro-ATX
General
| Chipset | B850 |
|---|---|
| Socket | AM5 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR5 · max 96 GB · 7200 MT/s
M.2 Slots2× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6E · Bluetooth 5.3
Power Stages7+2+1 phases · 60 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7200 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 5.0 x16 slot 1 PCIe 4.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Power Delivery (VRM)
| Phase Layout | 7+2+1 |
|---|---|
| CPU Phases | 7 |
| SoC Phases | 2 |
| Misc Phases | 1 |
| Amps per Phase | 60 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6E · Bluetooth 5.3 |

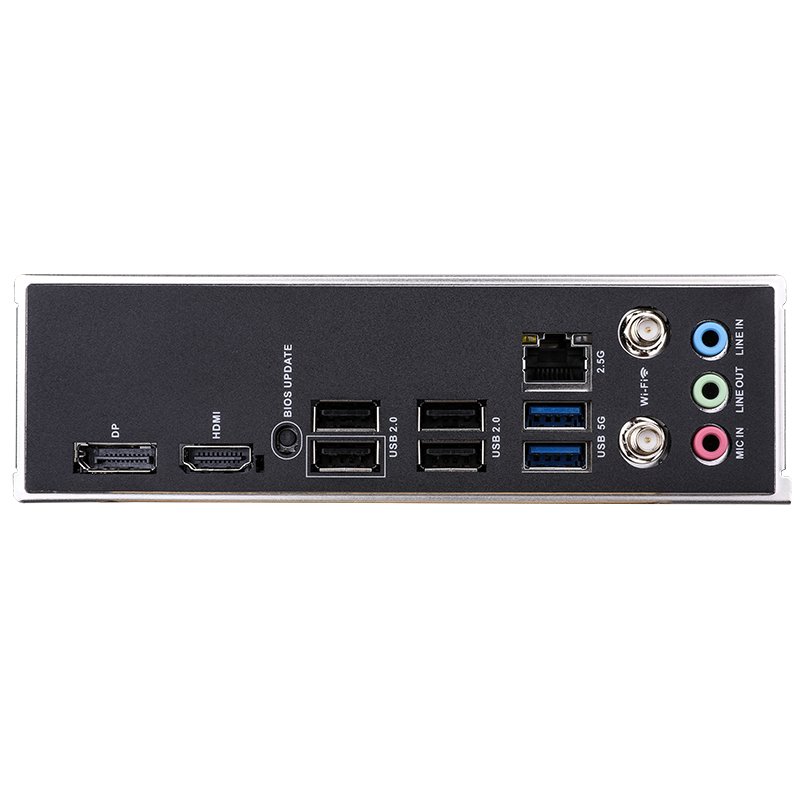

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps 1× USB-C 5Gbps HD Audio (front audio) |
| Case Fan Headers | 2× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: BATTLE-AX series customized heat dissipation armor Adopt 7+2+1 phase enhanced power supply design F.C.C ferrite inductor (Dr MOS 60A) Provides 1 PCIe 5.0 x4 M.2 SSD and 1 PCIe 4.0 x4 M.2 SSD slot Provides 2 USB 3.2 Gen 1 5Gbps Type-A high-speed rear ports Equipped with Realtek 2.5G high-speed wired network card and WIFI 6E wireless network card Bluetooth 5.3 Supports iGame Center lighting control software which can synchronously adjust the lighting effects of the radiator cooling fan and memory I/O backplane supports one-click BIOS upgrade function Six major protection technologies make the product run more stably 200 steps of rigorous testing to ensure quality PCB atomization process is fully upgraded |
