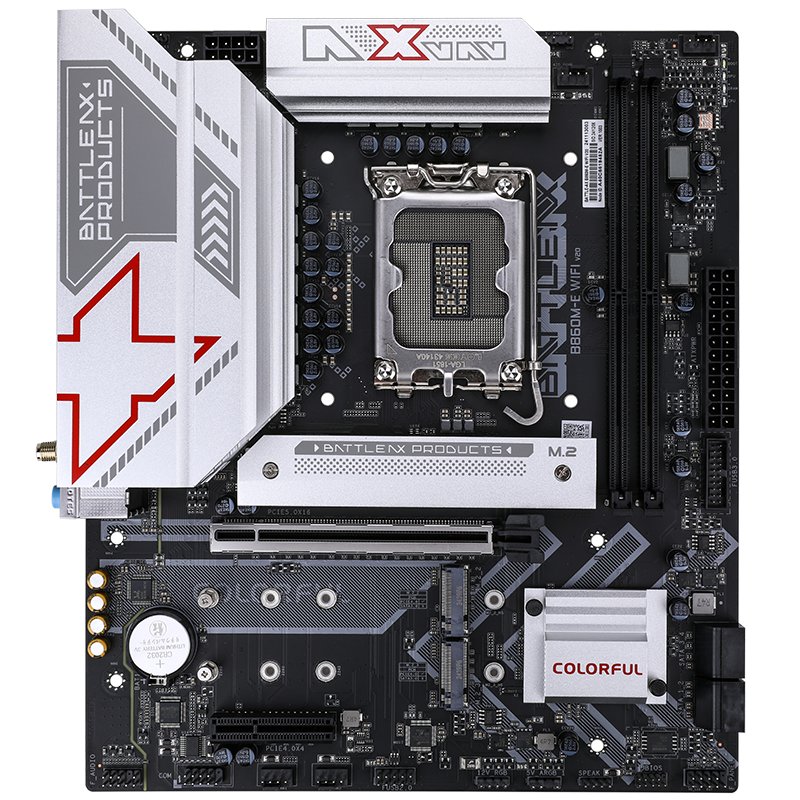

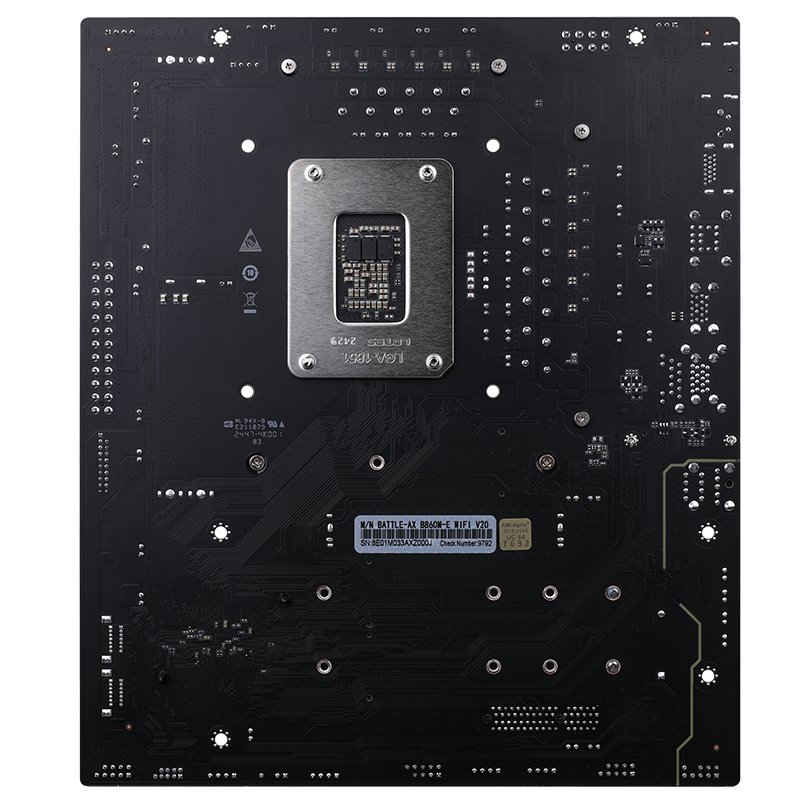

Colorful BATTLE-AX B860M-E WIFI V20
B860 · LGA1851 · Micro-ATX
General
| Chipset | B860 |
|---|---|
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR5 · max 96 GB · 7600 MT/s
M.2 Slots3× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Power Stages8+1+2 phases · 60 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7600 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe 4.0 x4 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Power Delivery (VRM)
| Phase Layout | 8+1+2 |
|---|---|
| CPU Phases | 8 |
| SoC Phases | 1 |
| Misc Phases | 2 |
| Amps per Phase | 60 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

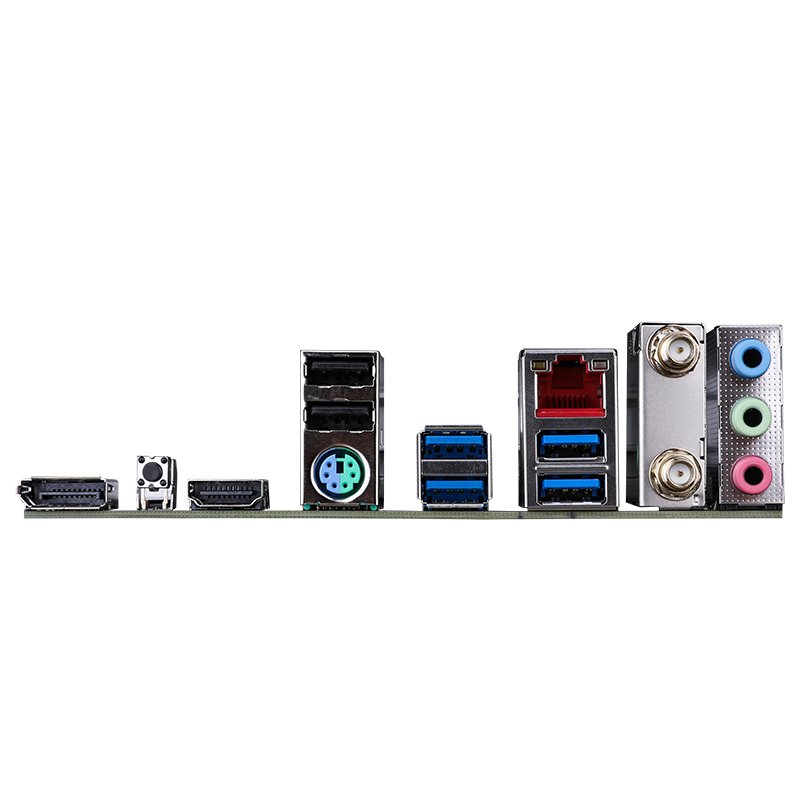

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) 1× PS/2 Clear CMOS button |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: BATTLE-AX series is equipped with customized frost cooling armor with full-cover condenser for enhanced heat dissipation Adopt 8+1+1+1 phase enhanced power supply design (Dr MOS 60A) Provides 1 PCIe 5.0 x4 M.2 SSD slot and 2 PCIe 4.0 x4 M.2 SSD slots Equipped with Realtek 2.5G high-speed wired network card and AX101 WiFi 6 wireless network card supports Bluetooth 5.2 Support iGame Center lighting control software which can adjust the lighting effects of radiator cooling fan and memory synchronously Six major protection technologies more stable product operation 200 processes strictly tested quality guaranteed PCB atomization process fully upgraded |
