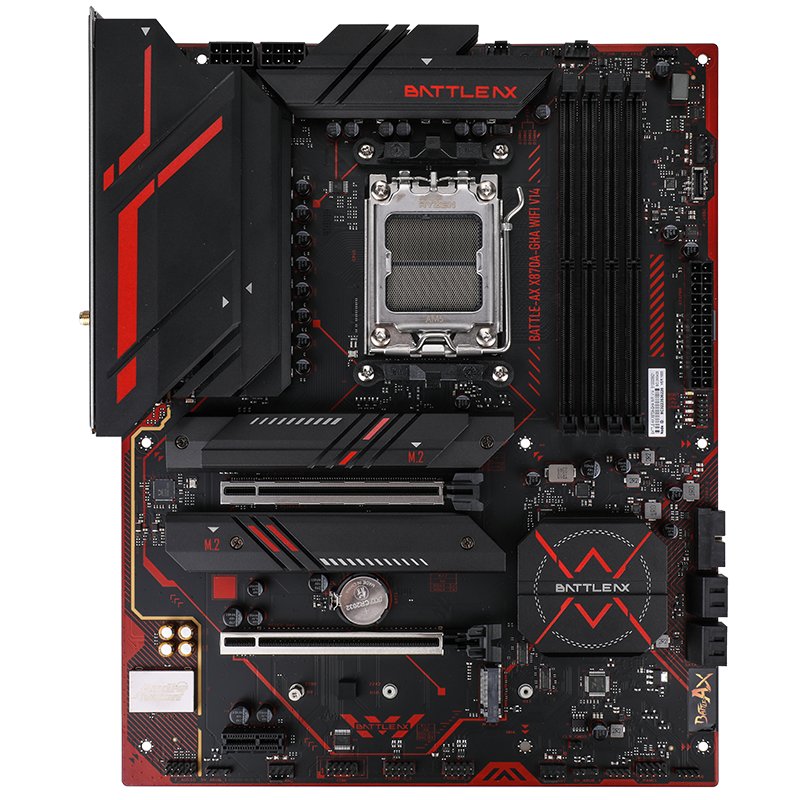

Colorful BATTLE-AX X870A-GHA WIFI V14
X870 · AM5 · ATX
General
| Chipset | X870 |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
Highlights
Memory4× DDR5 · max 192 GB · 7600 MT/s
M.2 Slots3× (1× PCIe 5.0)
GPU Slots2× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 5 Gbps · Wi-Fi 6 · Bluetooth 5.2
Power Stages16+2+1 phases · 55 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 7600 MT/s |
| Max RAM | 192 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot 1×PCIe x16 slot (supports PCIe 4.0 x4 specification) 1×PCIe 3.0 x1 slot *When the M.2_3 slot uses an M.2 hard drive the PCIe 4.0 x4 slot will be blocked |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 M.2_3: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 10 Gbps |
Power Delivery (VRM)
| Phase Layout | 16+2+1 |
|---|---|
| CPU Phases | 16 |
| SoC Phases | 2 |
| Misc Phases | 1 |
| Amps per Phase | 55 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8126-CG |
| Wireless | Wi-Fi 6 · Bluetooth 5.2 |

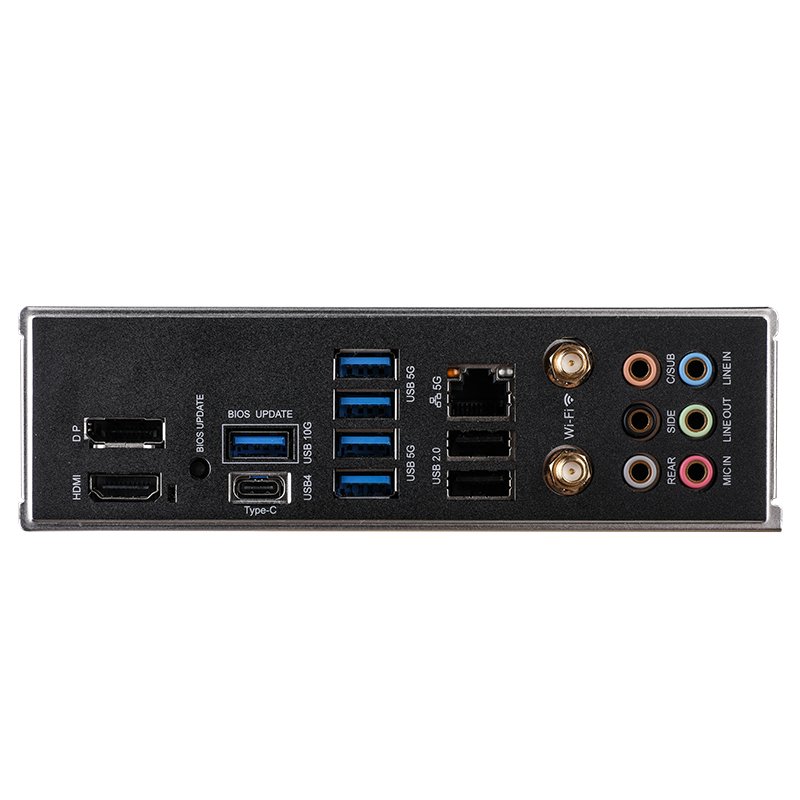

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 1× USB 10Gbps Type-A 1× HDMI 1× DisplayPort 1× 5 Gbps LAN 2× Wi-Fi antenna connector 6× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps 1× USB-C 10Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 3× ARGB (5V 3-pin) 1× RGB (12V 4-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: BATTLE-AX series customized heat dissipation armor Adopts 16+2+1 phase enhanced power supply design F.C.C ferrite inductor (Dr MOS 55A) Provides 1 PCIe 5.0 x4 M.2 SSD slot and 2 PCIe 4.0 x4 M.2 SSD slots Provides 1 USB 3.2 Gen 2 10Gbps Type-A and 1 USB 4 40Gbps Type-C high-speed rear interface Equipped with Realtek 5G high-speed wired network card and AX200 WiFi 6 wireless network card supports Bluetooth 5.2 Supports iGame Center lighting control software which can adjust the lighting effects of radiator cooling fan and memory synchronously I/O backplane supports one-click BIOS upgrade function Six major protection technologies more stable product operation 200 processes are strictly tested quality is guaranteed |
