Colorful CVN B550M GAMING FROZEN V14

B550 · AM4 · 245 X 245 MM MATX

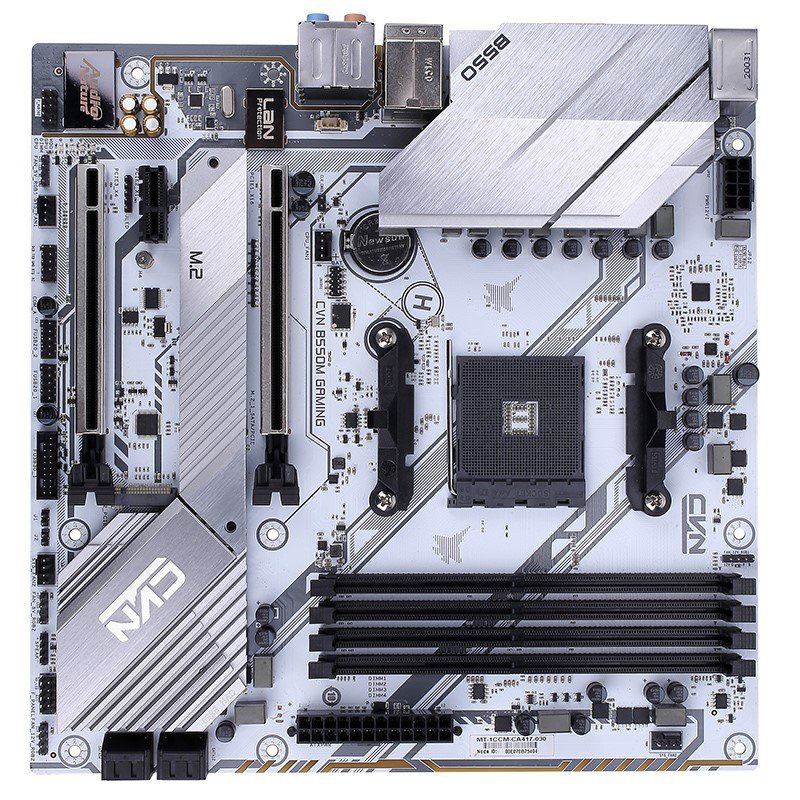

Colorful CVN B550M GAMING FROZEN V14 product image
Colorful CVN B550M GAMING FROZEN V14 product image 1Colorful CVN B550M GAMING FROZEN V14 product image 2

General

ChipsetB550
SocketAM4
Form Factor245 X 245 MM MATX

Highlights

Memory4× DDR4 · max 128 GB · 4000 MT/s
M.2 Slots2×
GPU Slots1× x16 · PCIe 4.0

Manufacturer Links

BIOS downloads ↗CPU support list ↗Driver downloads ↗Memory QVL ↗
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Memory

Memory TypeDDR4
Max RAM Speed4000 MT/s
Max RAM128 GB
DIMM Slots4
RAM Form FactorDIMM

Expansion and Storage

PCIe Version4.0
PCIe x16 Slots1
PCIe x1 Slots1
PCIe Slot Modes
1*PCI Express 3.0x4 slot，1*PCI Express3.0x1
2*M.2 slots
M.2 Slots
M.2_M2_1: PCIe 4.0 x4 · SATA supported
M.2_M2_2: PCIe 3.0 x4
SATA Ports4

Connectivity and Audio

Audio Codec8-Channel High Definition audio CODEC
LAN Chip1000M LAN，Provides 10/100/1000Mb Ethernet
BIOS Chip128 MB
Special Features
Feature Highlights:
Supports AMD Socket AM4 and 3rd Generation AMD Ryzen processors
4*DIMM slots
*Supports Dual Channel DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory
4*SATA3.0 ports
2*M.2 slots
*silk screen as "M.2_1_SATA/PCIE" slot
support PCI-e4.0 x4 and SATA SSD and 2242/2260/2280 size SSD
*silk screen as " M.2_2_PCIE" slot
support PCI-e3.0 x4 SSD and 2280 size SSD.
integrated 1000M LAN chipset
8-Channel High Definition audio CODEC

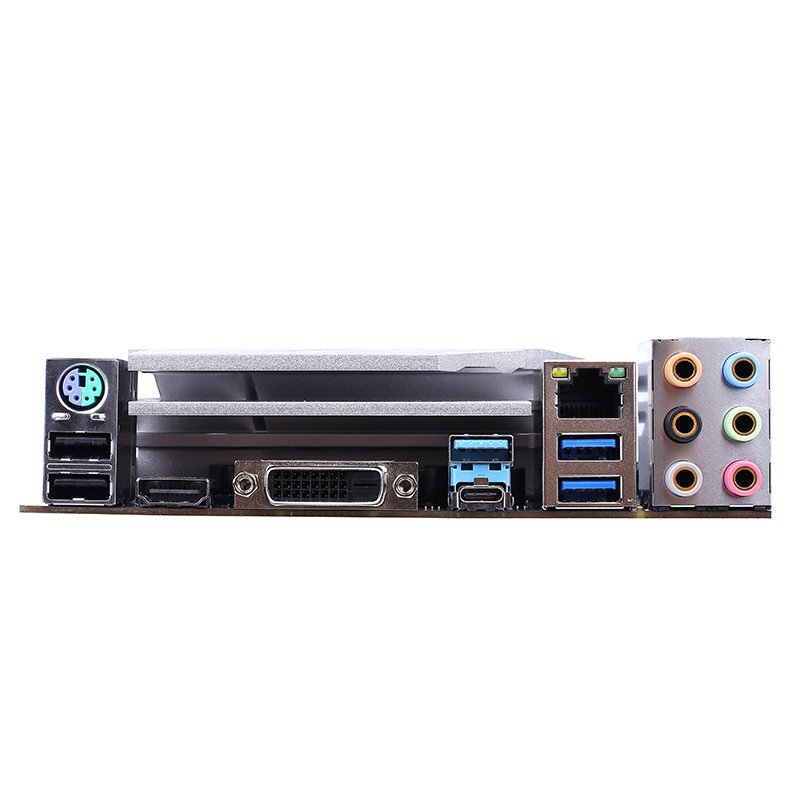

DVI+HDMI ports
6*USB2.0 ports(4 through header)
6*USB3.1 Gen1 ports(3*Type-A,1*Type-C and 2*Type-A through header)
2*4PIN 12V RGB LED and 2*3Pin 5V RGB LED header
misty-white PCB technology
