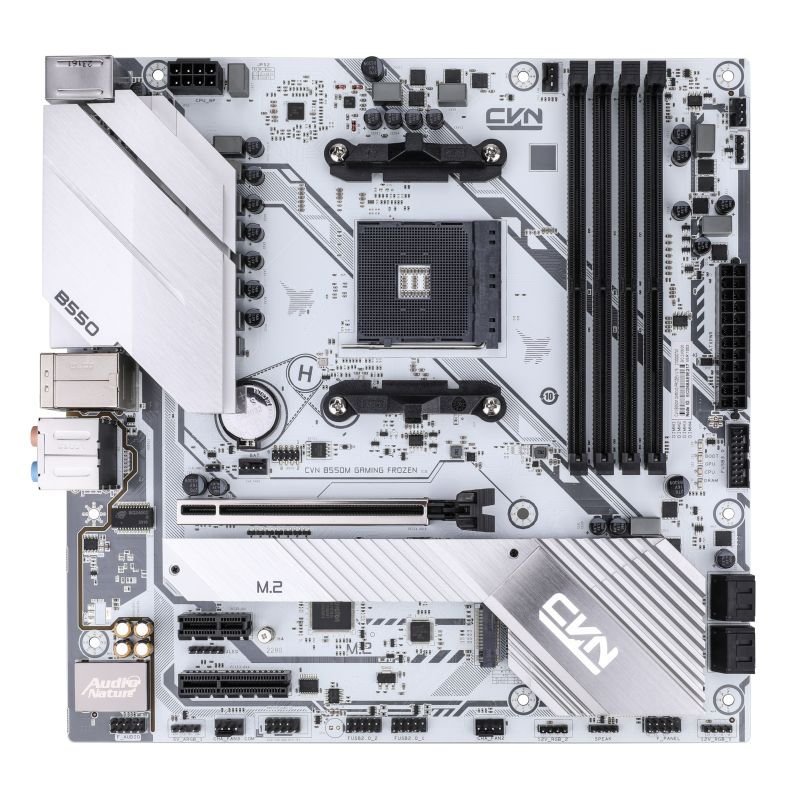

Colorful CVN B550M GAMING FROZEN V15
B550 · AM4 · Micro-ATX
General
| Chipset | B550 |
|---|---|
| Socket | AM4 |
| Form Factor | Micro-ATX |
Highlights
Memory4× DDR4 · max 128 GB · 4000 MT/s
M.2 Slots2×
GPU Slots1× x16 · PCIe 4.0
Fastest USBUSB 5 Gbps
NetworkLAN 2.5 Gbps
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 4000 MT/s |
| Max RAM | 128 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1×PCIe 4.0 x16 slot 1×PCIe 3.0 x4 slot 1×PCIe 3.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 4.0 x4 · SATA supported M.2_2: PCIe 3.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
| RAID | 0 |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125 |
| Rear I/O | 2× USB 2.0 Type-A 3× USB 5Gbps Type-A 1× USB 5Gbps Type-C 1× HDMI 1× 2.5 Gbps LAN 6× Audio jacks (3.5 mm) 1× PS/2 |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) 2× RGB (12V 4-pin) |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: CVN series exclusive customized white motherboard CVN series customized frost cooling armor with full coverage condensing fins to enhance heat dissipation Provide 2 M.2 SSD slots Provide 1 USB 3.2 Gen 1 Type-C and 3 USB 3.2 Gen 1 Type-A high-speed rear interface Equipped with Realtek 2.5G fast wired network card Support iGame Center light efficiency control software which can synchronously adjust the light efficiency of heat sinks cooling fans and memory Six major protective technologies ensure more stable product operation Strict testing of 200 processes with guaranteed quality Comprehensive upgrade of PCB atomization process |
