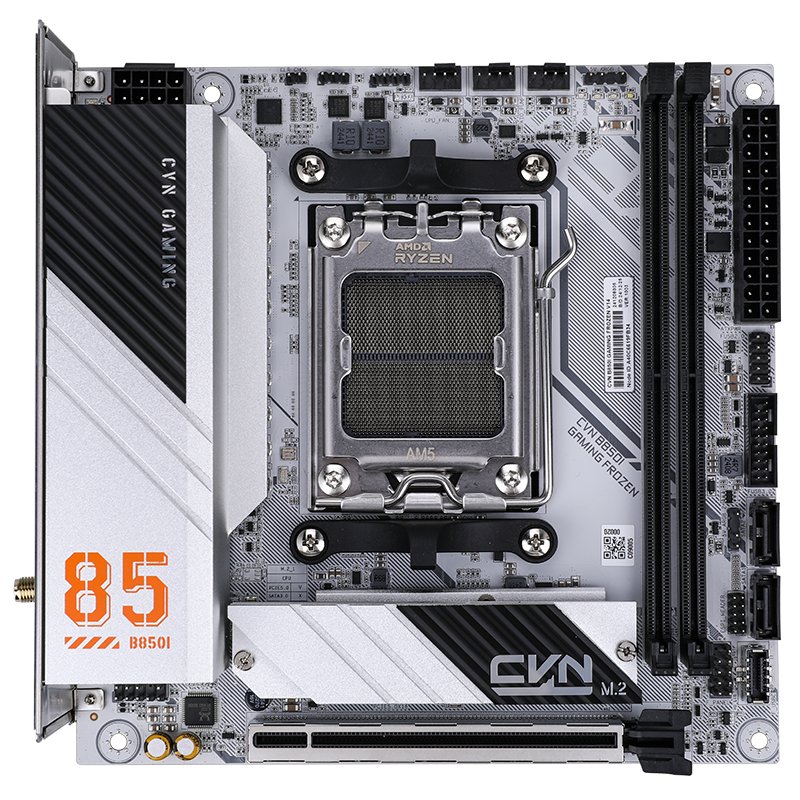

Colorful CVN B850I GAMING FROZEN V14
B850 · AM5 · Mini-ITX
General
| Chipset | B850 |
|---|---|
| Socket | AM5 |
| Form Factor | Mini-ITX |
Highlights
Memory2× DDR5 · max 96 GB · 8000 MT/s
M.2 Slots2× (1× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 6E · Bluetooth 5.3
Power Stages9+2+1 phases · 60 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 8000 MT/s |
| Max RAM | 96 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1×PCIe 5.0 x16 slot |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 4.0 x4 |
| SATA Ports | 2 |
| Highest USB | USB 10 Gbps |
Power Delivery (VRM)
| Phase Layout | 9+2+1 |
|---|---|
| CPU Phases | 9 |
| SoC Phases | 2 |
| Misc Phases | 1 |
| Amps per Phase | 60 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8125BG |
| Wireless | Wi-Fi 6E · Bluetooth 5.3 |

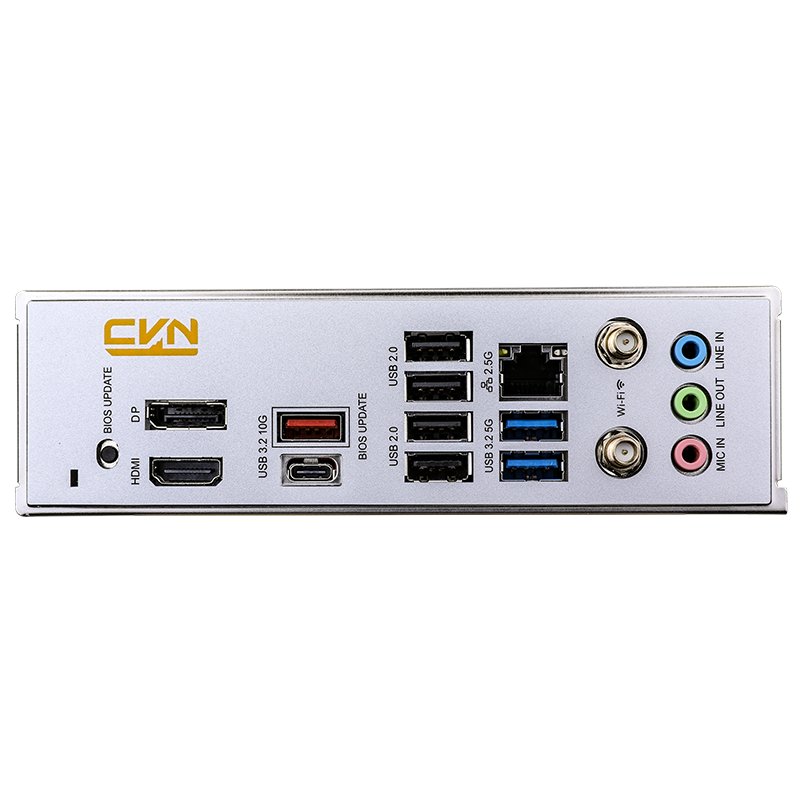

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× USB 10Gbps Type-A 1× USB 10Gbps Type-C 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× Audio jacks (3.5 mm) BIOS Flashback button |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps 1× USB-C 10Gbps HD Audio (front audio) |
| Case Fan Headers | 2× 4-pin PWM fan 1× Pump (liquid cooling) |
| RGB Header | 2× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: CVN series exclusive customized white motherboard CVN series customized frost heat dissipation armor with full-cover condenser to enhance heat dissipation Adopt 9+2+1 phase enhanced power supply design (Dr MOS 60A) Provides 1 PCIe 5.0 x4 M.2 SSD slot and 1 PCIe 4.0 x4 M.2 SSD slots Equipped with Realtek 2.5G high-speed wired network card and AX210 WiFi 6E wireless network card supports Bluetooth 5.3 Support iGame Center lighting control software which can adjust the lighting effects of radiator cooling fan and memory synchronously I/O backplane supports one-click BIOS upgrade function Six major protection technologies more stable product operation 200 processes strictly tested quality guaranteed PCB atomization process fully upgraded |
