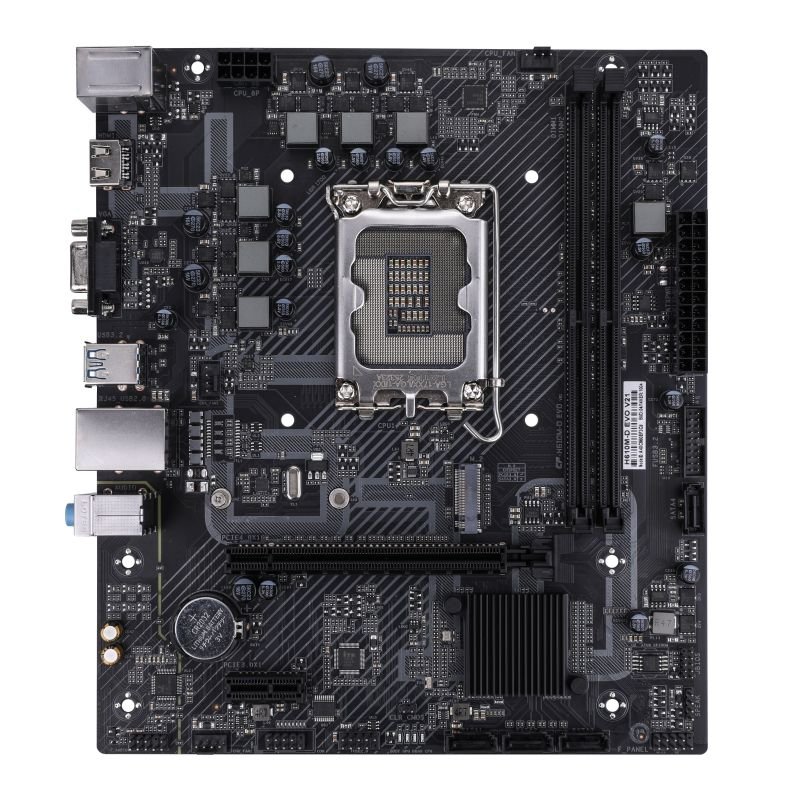

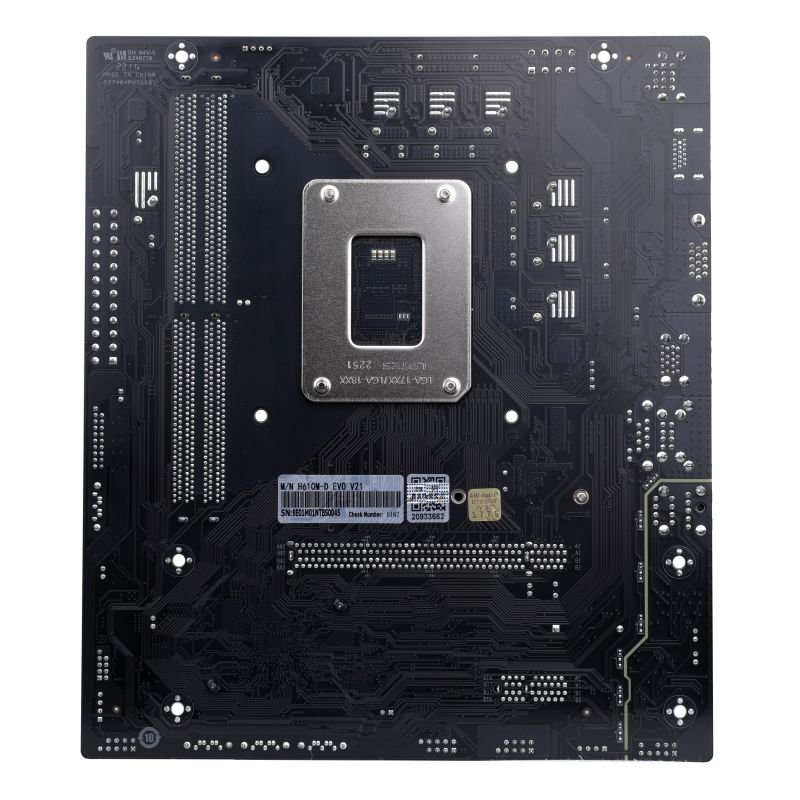

Colorful H610M-D EVO V21
H610 · LGA1700 · Micro-ATX
General
| Chipset | H610 |
|---|---|
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
Highlights
Memory2× DDR4 · max 64 GB · 3200 MT/s
M.2 Slots1×
GPU Slots1× x16 · PCIe 4.0
Fastest USBUSB 5 Gbps
NetworkLAN 1 Gbps
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR4 |
|---|---|
| Max RAM Speed | 3200 MT/s |
| Max RAM | 64 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 4.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| PCIe Slot Modes | 1 PCIe 4.0 x16 slot 1 PCIe 3.0 x1 slot |
| M.2 Slots | M.2_1: PCIe 3.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 5 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC897 |
|---|---|
| LAN Chip | RTL8111H Gigabit Network Card |

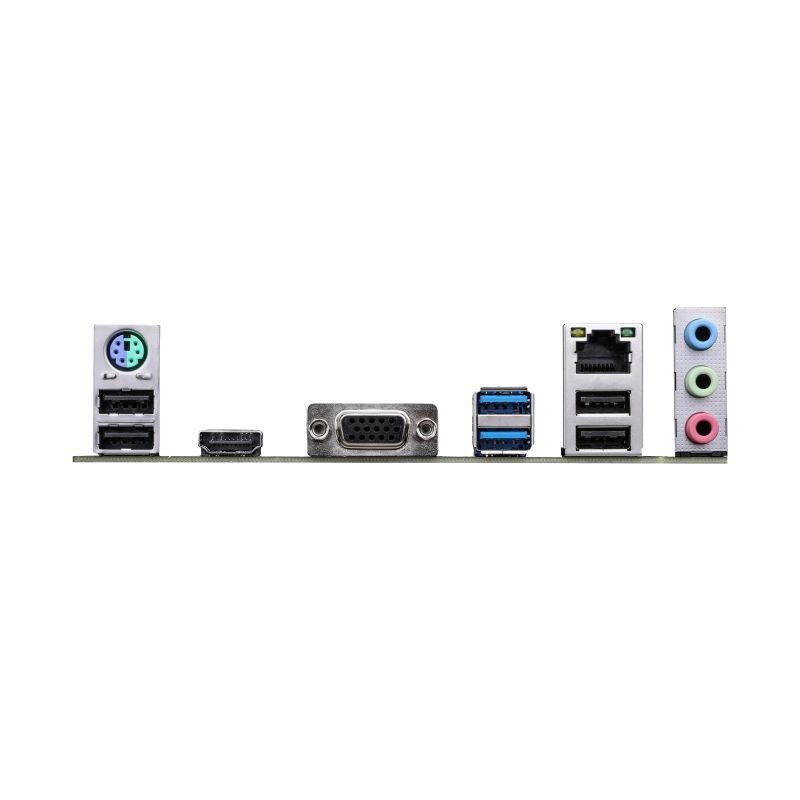

| Rear I/O | 4× USB 2.0 Type-A 2× USB 5Gbps Type-A 1× HDMI 1× 1 Gbps LAN 3× Audio jacks (3.5 mm) 1× PS/2 |
| Front Panel Headers | 2× USB 2.0 2× USB-A 5Gbps HD Audio (front audio) |
| Case Fan Headers | 3× 4-pin PWM fan |
| BIOS Chip | 128 MB |
| Special Features | Feature Highlights: Intel H610 chipset Support dual-channel DDR4-3200MHz memory Provide 1 PCIe 3.0 x4 M.2 SSD slot Equipped with HDMI+VGA display interface Equipped with Realtek 8111H Gigabit wired network card Six protection technologies more stable product operation 200 processes are strictly tested with guaranteed quality PCB atomization process comprehensively upgraded |
