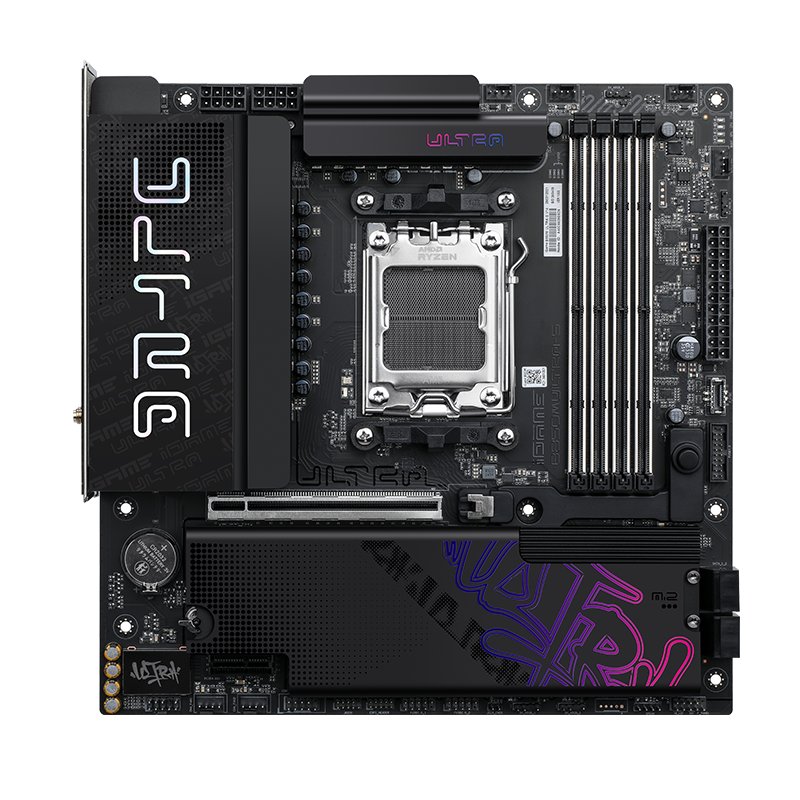

Colorful iGame B850M ULTRA-S V14
B850 · AM5 · mATX
General
| Chipset | B850 |
|---|---|
| Socket | AM5 |
| Form Factor | mATX |
Highlights
Memory4× DDR5 · max 256 GB · 8400 MT/s
M.2 Slots3× (2× PCIe 5.0)
GPU Slots1× x16 · PCIe 5.0
Fastest USBUSB 10 Gbps
NetworkLAN 2.5 Gbps · Wi-Fi 7 · Bluetooth 5.4
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 8400 MT/s |
| Max RAM | 256 GB |
| DIMM Slots | 4 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 1 |
| PCIe x1 Slots | 1 |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 M.2_3: PCIe 4.0 x4 |
| SATA Ports | 4 |
| Highest USB | USB 10 Gbps |
Connectivity and Audio
| Audio Codec | Realtek ALC1220 high-fidelity decoding chip, supporting 7.1 channels |
|---|---|
| LAN Chip | Realtek RTL8125BG 2.5GbE |
| Wireless | Wi-Fi 7 · Bluetooth 5.4 |
| Rear I/O | 4× USB 2.0 Type-A 4× USB 5Gbps Type-A 3× USB 10Gbps Type-A 1× HDMI 1× DisplayPort 1× 2.5 Gbps LAN 2× Wi-Fi antenna connector 3× S/PDIF optical out BIOS Flashback button Clear CMOS button |
| Front Panel Headers | 4× USB 2.0 2× USB-A 5Gbps 1× USB-C 10Gbps HD Audio (front audio) |
| Case Fan Headers | 4× 4-pin PWM fan 2× Pump (liquid cooling) |
| RGB Header | 4× ARGB (5V 3-pin) |
| BIOS Chip | 256 MB |
| Special Features | Feature Highlights: iGame Series Exclusive Custom Black ULTRA Motherboard iGame Series Custom Frost Armor with Full-Coverage Cooling Plate for Enhanced Heat Dissipation Deep Black Main Theme Infused with a Cool Hip-Hop Spirit Adopts a 14+2+1 enhanced power phase design (core power supply Dr MOS 80A). Provides two PCIe 5.0 x4 M.2 SSD slots and one PCIe 4.0 x4 M.2 SSD slot. Provides one front-panel USB 3.2 Gen 2 10Gbps Type-C high-speed port with PD support up to 30W. Equipped with a Realtek 2.5G high-speed wired network card and WiFi 7 wireless network card and supports Bluetooth 5.4. Supports iGame Center lighting control software for simultaneous adjustment of radiator cooling fan and memory lighting. I/O backplane supports one-click BIOS upgrade. Six major protection technologies ensure more stable operation. 200-step rigorous testing process ensures quality. Fully upgraded PCB atomization process. |
