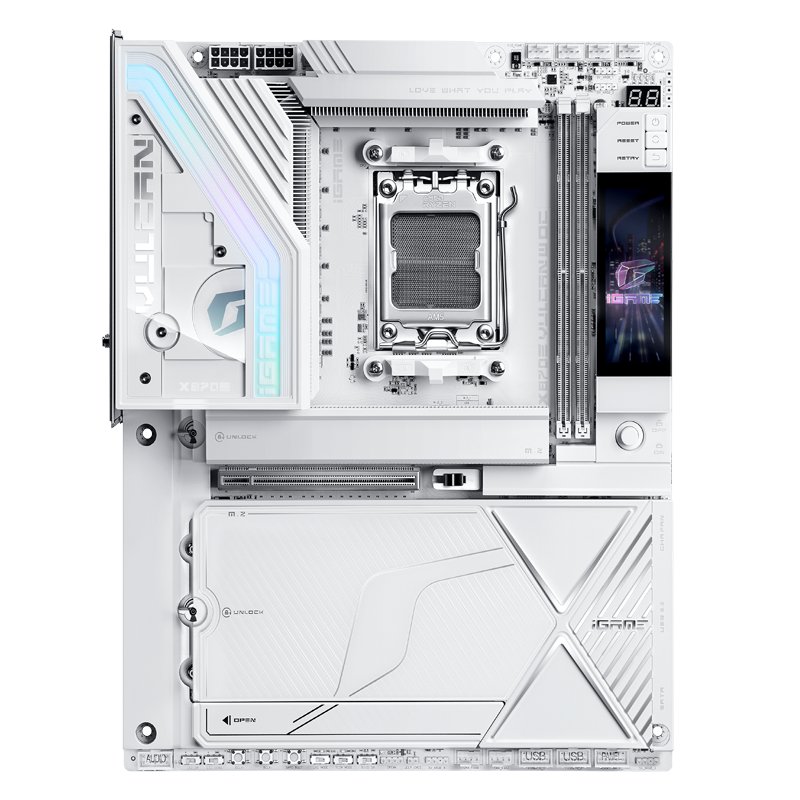

Colorful iGame X870E VULCAN W OC V14
X870E · AM5 · ATX
General
| Chipset | X870E |
|---|---|
| Socket | AM5 |
| Form Factor | ATX |
| Supported CPU Families | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard |
Highlights
Memory2× DDR5 · max 128 GB · 10600 MT/s
M.2 Slots5× (2× PCIe 5.0)
GPU Slots2× x16 · PCIe 5.0
Fastest USBUSB4 (40 Gbps)
NetworkLAN 5 Gbps · Wi-Fi 7 · Bluetooth 5.4
Power Stages18+2+2 phases · 110 A
Manufacturer Links
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Memory
| Memory Type | DDR5 |
|---|---|
| Max RAM Speed | 10600 MT/s |
| Max RAM | 128 GB |
| DIMM Slots | 2 |
| RAM Form Factor | DIMM |
Expansion and Storage
| PCIe Version | 5.0 |
|---|---|
| PCIe x16 Slots | 2 |
| PCIe x1 Slots | 0 |
| PCIe Slot Modes | 1 PCIe 5.0 x16 slot 1 PCIe3.0 x16 slot (supports PCIe 3.0 x4 specification) |
| M.2 Slots | M.2_1: PCIe 5.0 x4 M.2_2: PCIe 5.0 x4 M.2_3: PCIe 4.0 x4 M.2_4: PCIe 4.0 x4 M.2_5: PCIe 4.0 x4 |
| SATA Ports | 2 |
| Highest USB | USB4 (40 Gbps) |
Power Delivery (VRM)
| Phase Layout | 18+2+2 |
|---|---|
| CPU Phases | 18 |
| SoC Phases | 2 |
| Misc Phases | 2 |
| Amps per Phase | 110 A |
| MOSFET | Dr MOS |
Connectivity and Audio
| Audio Codec | Realtek ALC1220 |
|---|---|
| LAN Chip | RTL8126-CG |
| Wireless | Wi-Fi 7 · Bluetooth 5.4 |

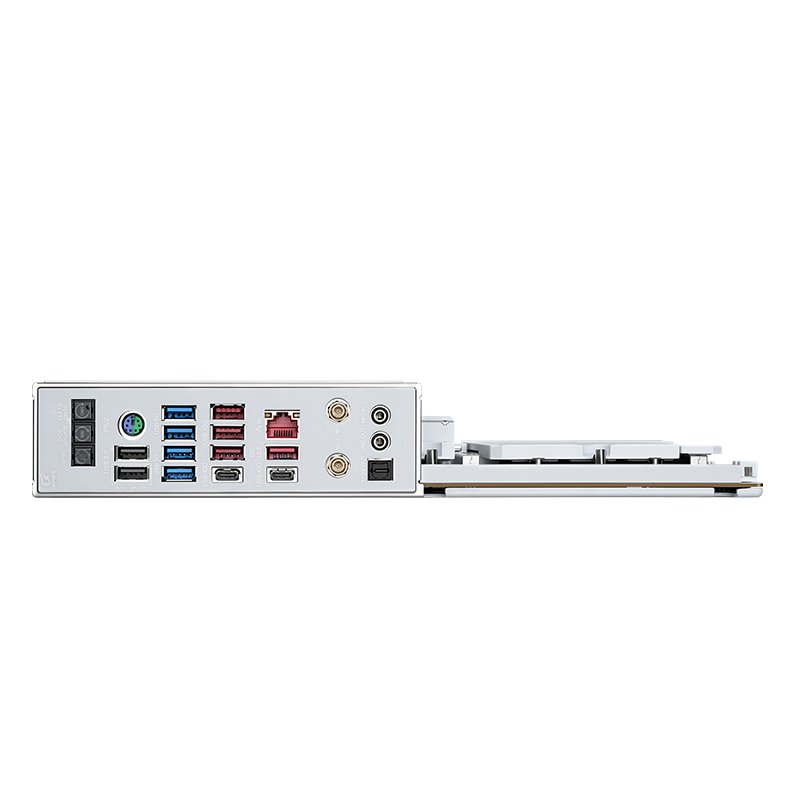

| Rear I/O | 2× USB 2.0 Type-A 4× USB 5Gbps Type-A 4× USB 10Gbps Type-A 2× USB4 40Gbps Type-C 1× 5 Gbps LAN 2× Audio jacks (3.5 mm) 1× S/PDIF optical out 1× PS/2 |
| Front Panel Headers | 4× USB 2.0 4× USB-A 5Gbps 1× USB-C 10Gbps HD Audio (front audio) |
| Case Fan Headers | 6× 4-pin PWM fan 2× Pump (liquid cooling) |
| RGB Header | 4× ARGB (5V 3-pin) |
| RGB Zones | RGB LED |
| TPM Header | Yes |
| BIOS Chip | 256 MB |
| Dual BIOS | No |
| Special Features | TPM header AMD Expo front plate Q-Code (LED) |
