ASRock PRO Series Full Modular Gold PRO-M1000G

1000 W · 80 PLUS Gold · ATX 3.1

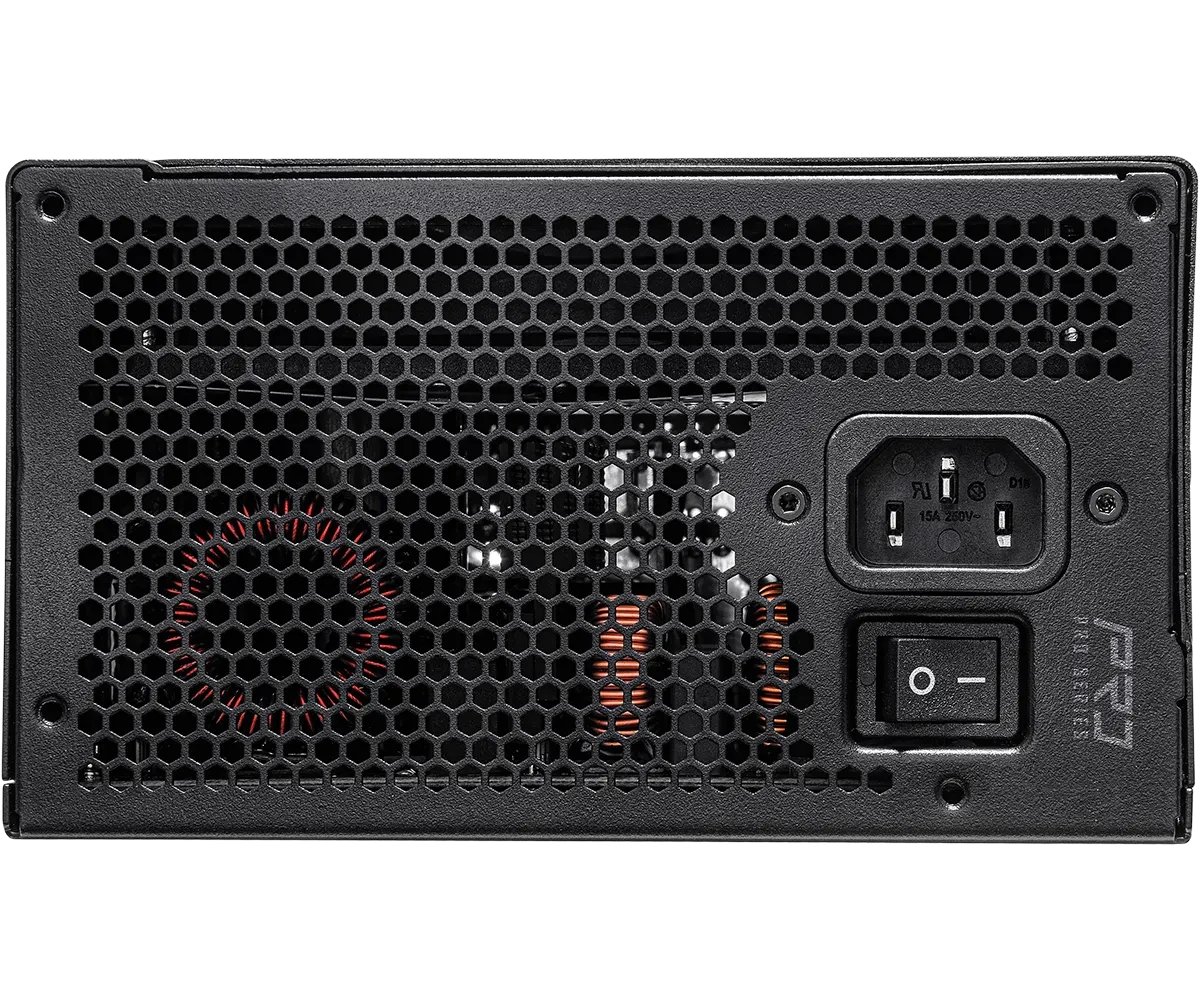

ASRock PRO Series Full Modular Gold PRO-M1000G product image
ASRock PRO Series Full Modular Gold PRO-M1000G product image 1ASRock PRO Series Full Modular Gold PRO-M1000G product image 2ASRock PRO Series Full Modular Gold PRO-M1000G product image 3

Specifications

Wattage1000 W
80 PLUS Certification80 PLUS Gold
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 150 × 86 mm
PFCActive
Warranty10 years
Graphics card connector1× 12V-2x6 (native)
Features5V Boost Mode
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

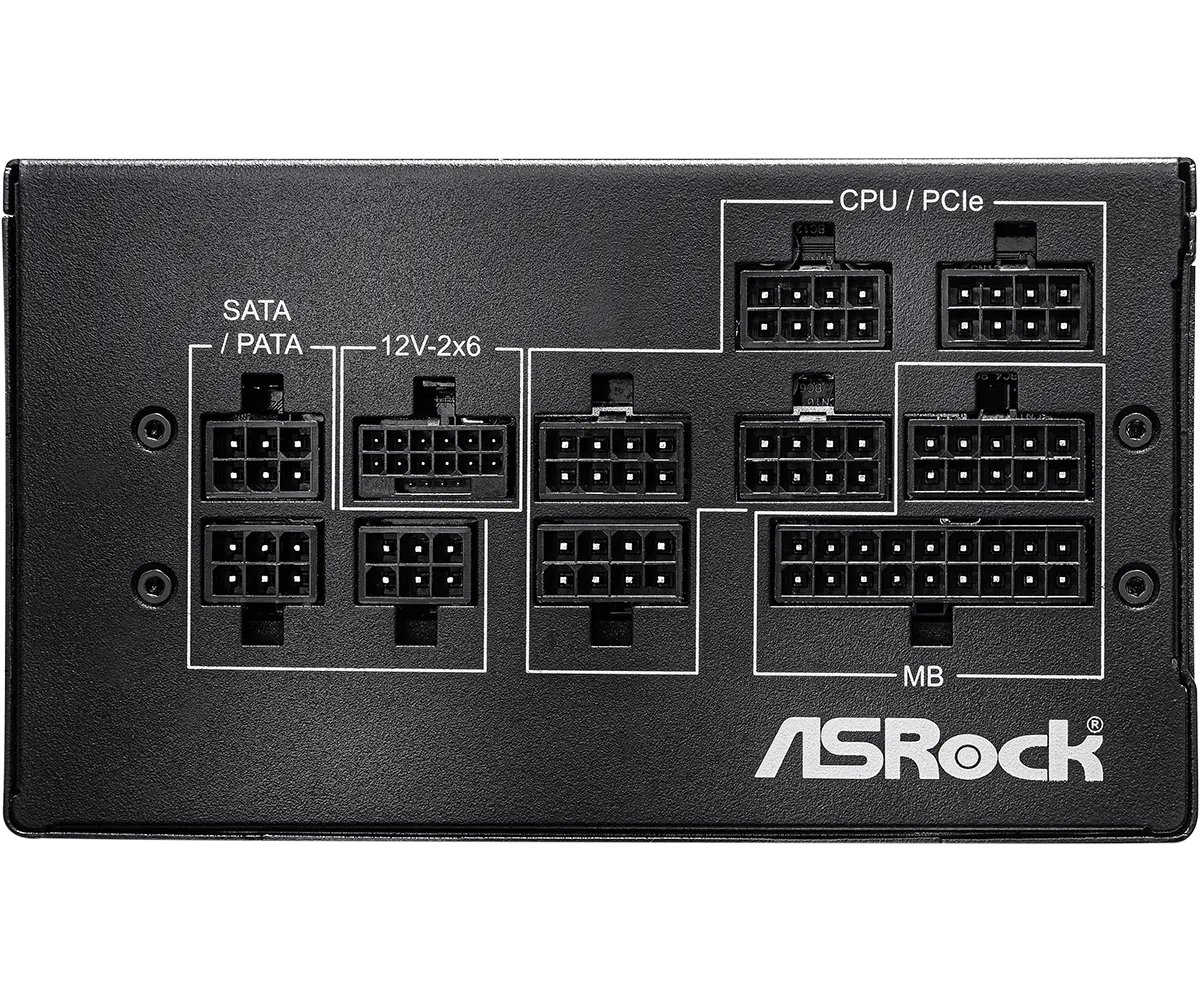

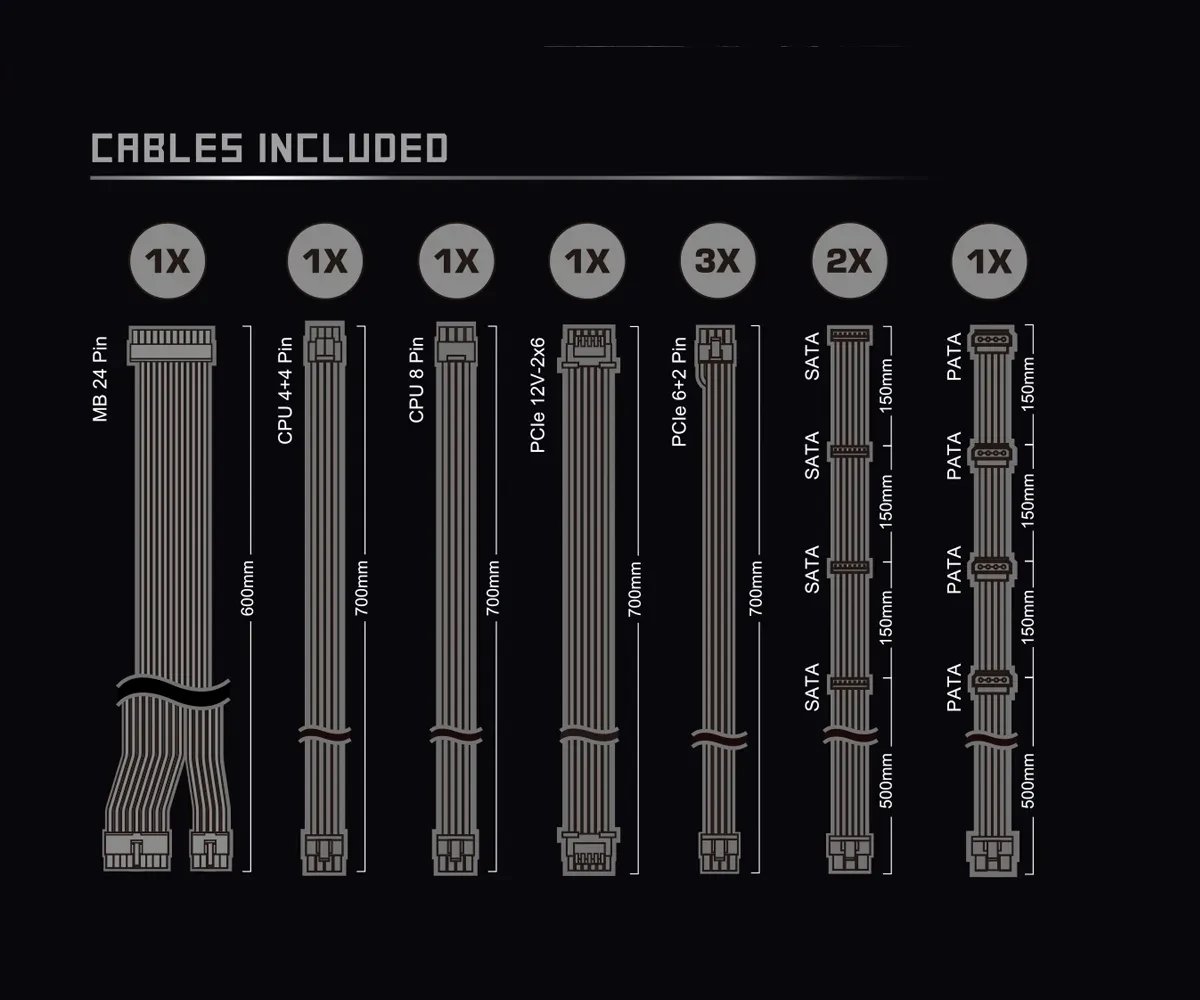

Cables and Connectors

IDE / Molex4×
SATA8×
EPS12V 8-pin1×
PCIe 6+2-pin3×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

· manufacturer90%
115V · 80plus_official83.66%

Fan

Fan size135 mm
Operating modeAlways on
