Asus ROG STRIX 1000P Platinum Edition

1000 W · 80 PLUS Platinum · ATX 3.1

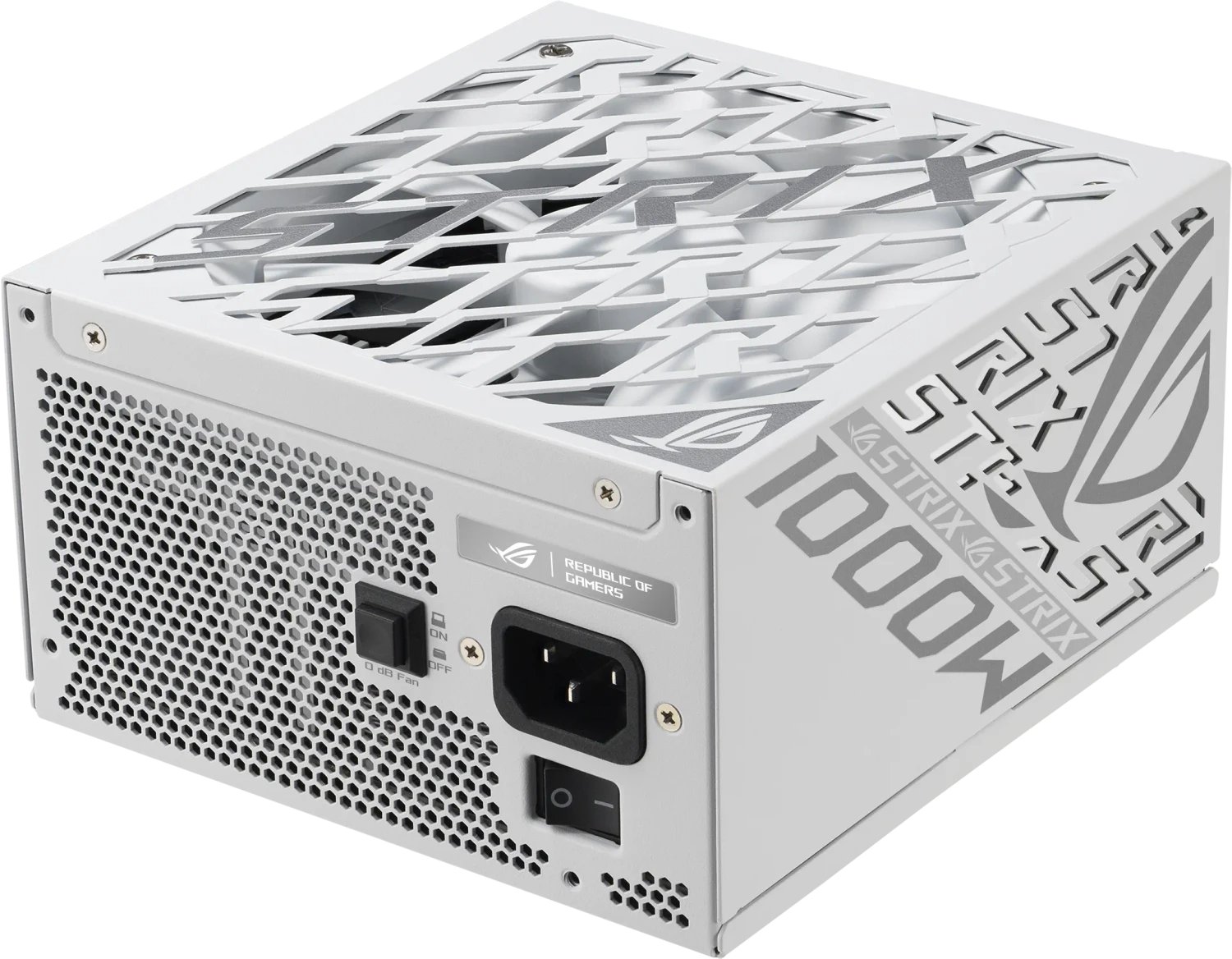

Asus ROG STRIX 1000P Platinum Edition product image
Asus ROG STRIX 1000P Platinum Edition product image 1Asus ROG STRIX 1000P Platinum Edition product image 2Asus ROG STRIX 1000P Platinum Edition product image 3

Specifications

Wattage1000 W
80 PLUS Certification80 PLUS Platinum
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorWhite
Dimensions (W×D×H)150 × 160 × 86 mm
Weight2.91 kg
PFCActive
Warranty10 years
Graphics card connector1× 12V-2x6 (native) · 600 W
FeaturesIncludes ROG Equalizer 12V-2x6 PCIe power cable, White Build compatible, Semi-passive mode switchable
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

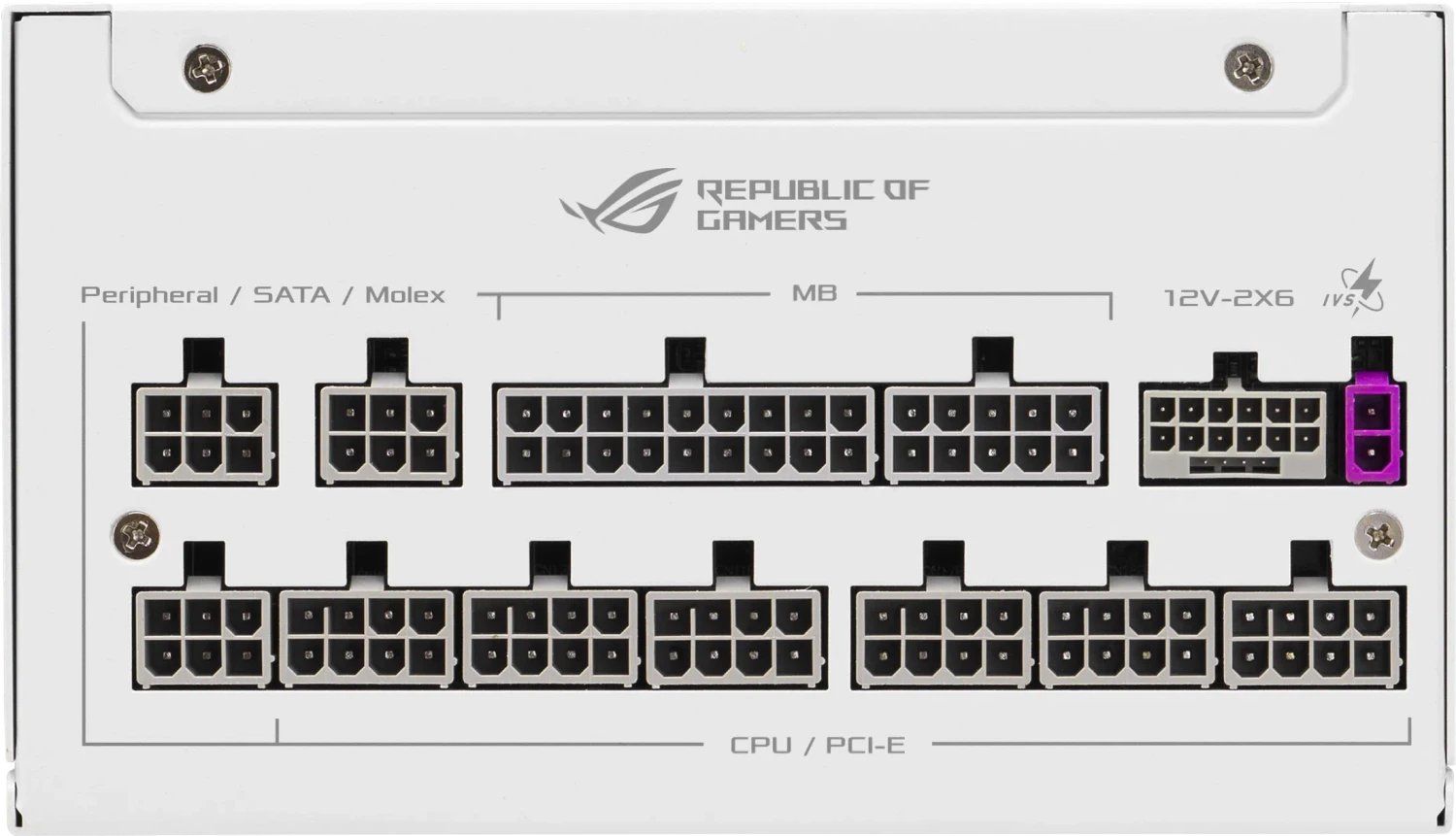

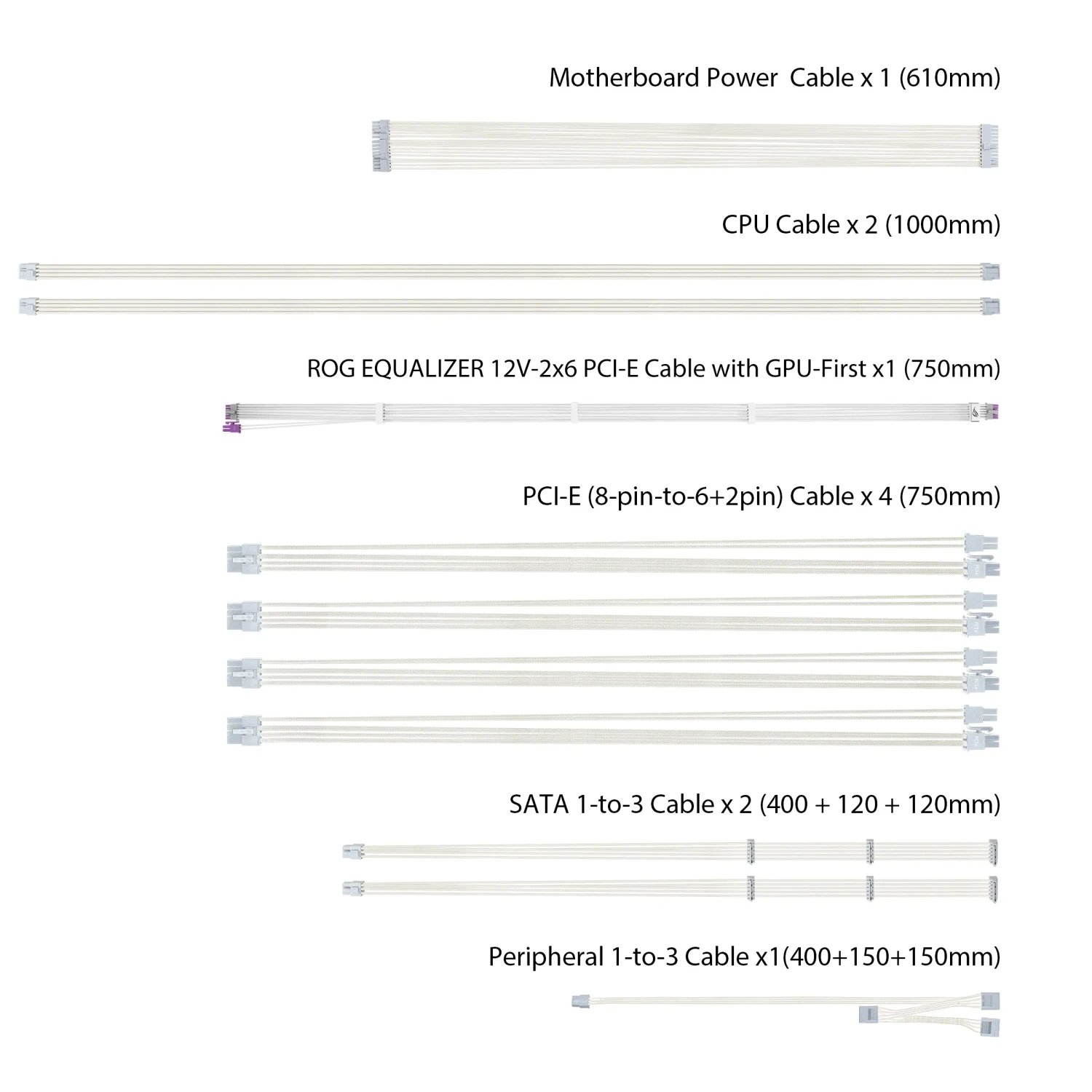

Cables and Connectors

IDE / Molex3×
SATA6×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)2×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official90.33%
115V · cybenetics90.36%
230V · cybenetics92.16%

Noise

115V · cybenetics18.09 dB(A)
230V · cybenetics18.04 dB(A)

Fan

Fan size135 mm
Operating modeSemi-passive (stops at low load)
