Asus ROG STRIX 750G Gold Aura Edition
750 W · 80 PLUS Gold · ATX 3.0
Specifications
| Wattage | 750 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Gold |
| ATX Standard | ATX 3.0 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Color | Black |
| Dimensions (W×D×H) | 150 × 180 × 86 mm |
| Weight | 2.69 kg |
| PFC | Active |
| Warranty | 10 years |
| Graphics card connector | 1× 12VHPWR (via adapter) |
| Features | ErP Lot 6, 3-pin RGB interface (+5V/DATA/GND), RGB-illuminated housing, Supports Haswell C6/C7 low-power states, Semi-passive mode switchable |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder

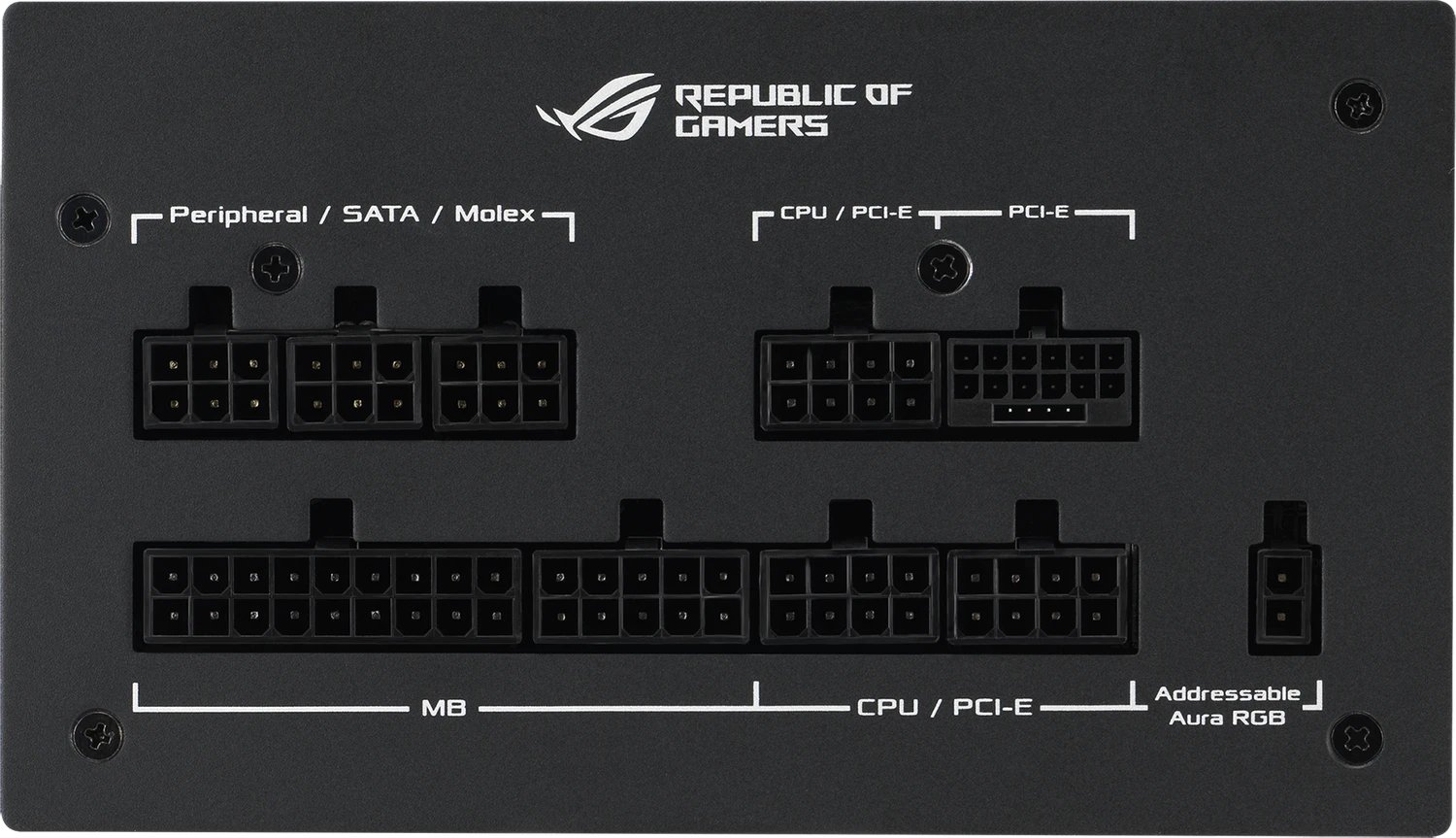

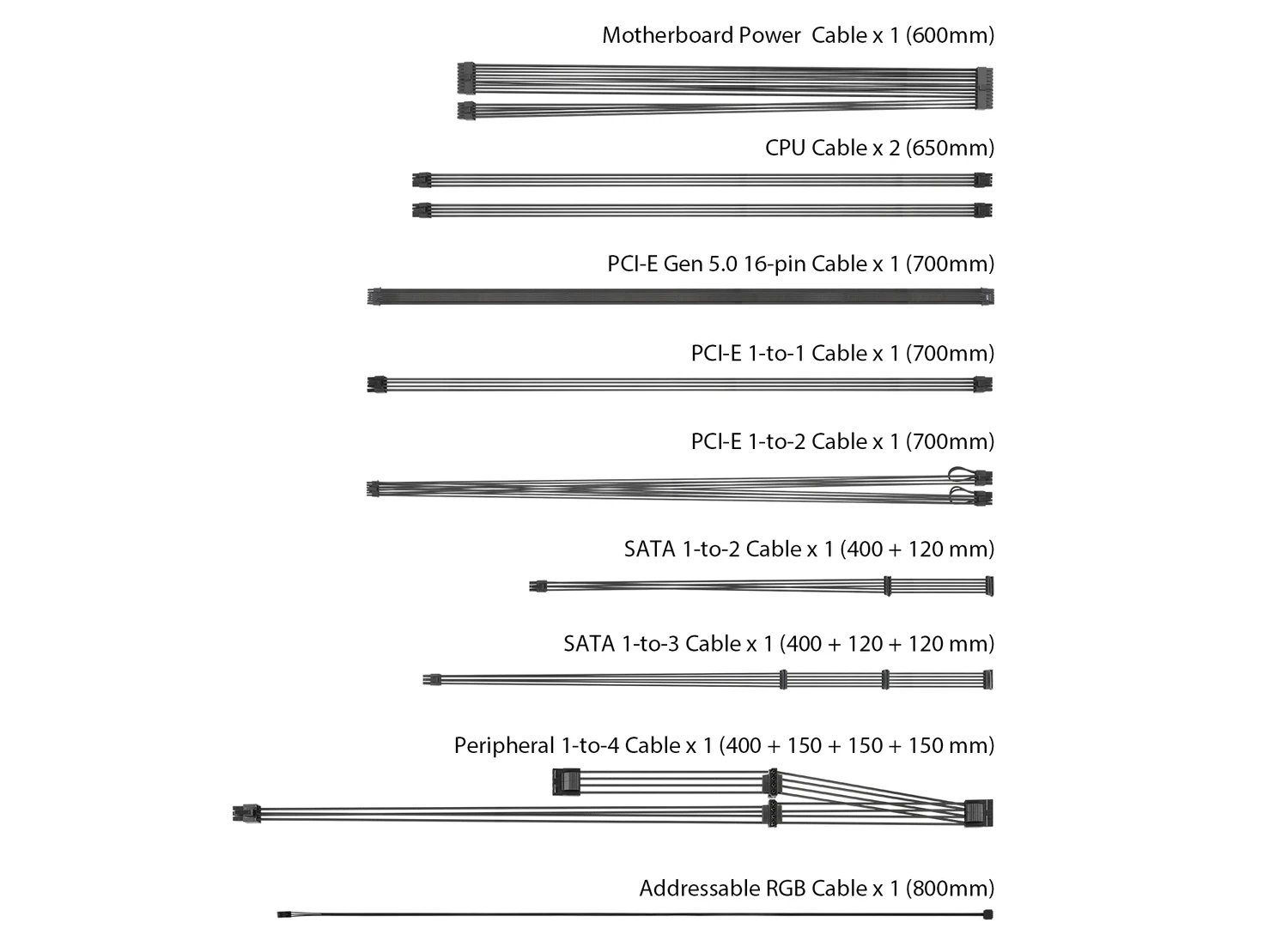

Cables and Connectors
| IDE / Molex | 4× |
|---|---|
| SATA | 5× |
| PCIe 6+2-pin | 3× |
| CPU 4+4-pin (ATX12V) | 2× |
| RGB header (3-pin) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 88.2% |
|---|---|
| 115V · cybenetics | 88.28% |
| 230V · cybenetics | 89.67% |
Noise
| 115V · cybenetics | 12.34 dB(A) |
|---|---|
| 230V · cybenetics | 12.28 dB(A) |
Fan
| Fan size | 135 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
