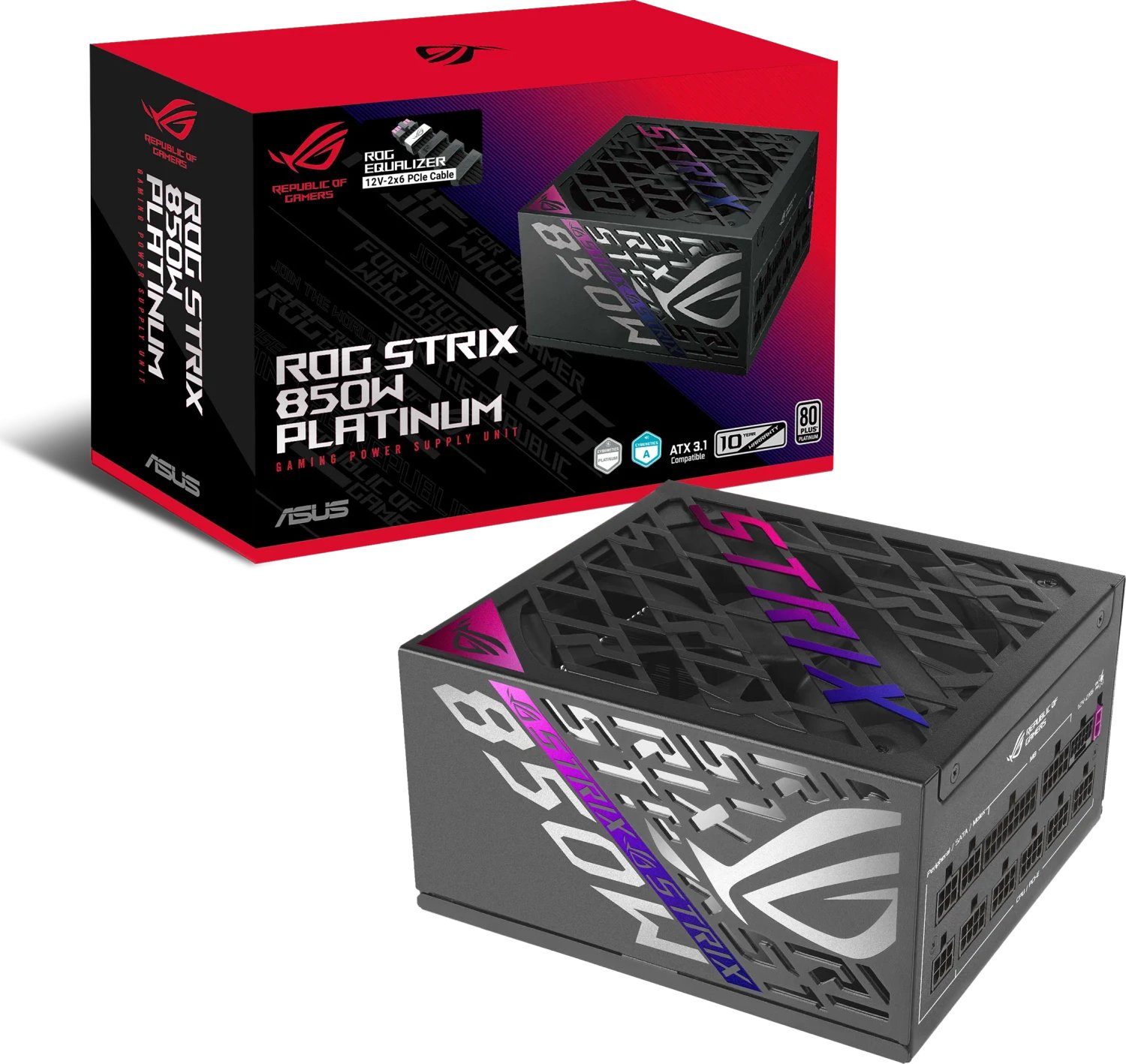

Asus ROG STRIX 850P Platinum ROG Equalizer
850 W · 80 PLUS Platinum · ATX 3.1
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | ATX 3.1 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 10 years |
| Graphics card connector | 1× 12V-2x6 (native) · 600 W |
| Other Features | Includes ROG Equalizer 12V-2x6 PCIe power cable Semi-passive mode switchable |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.78 kg |
| Color | Black |

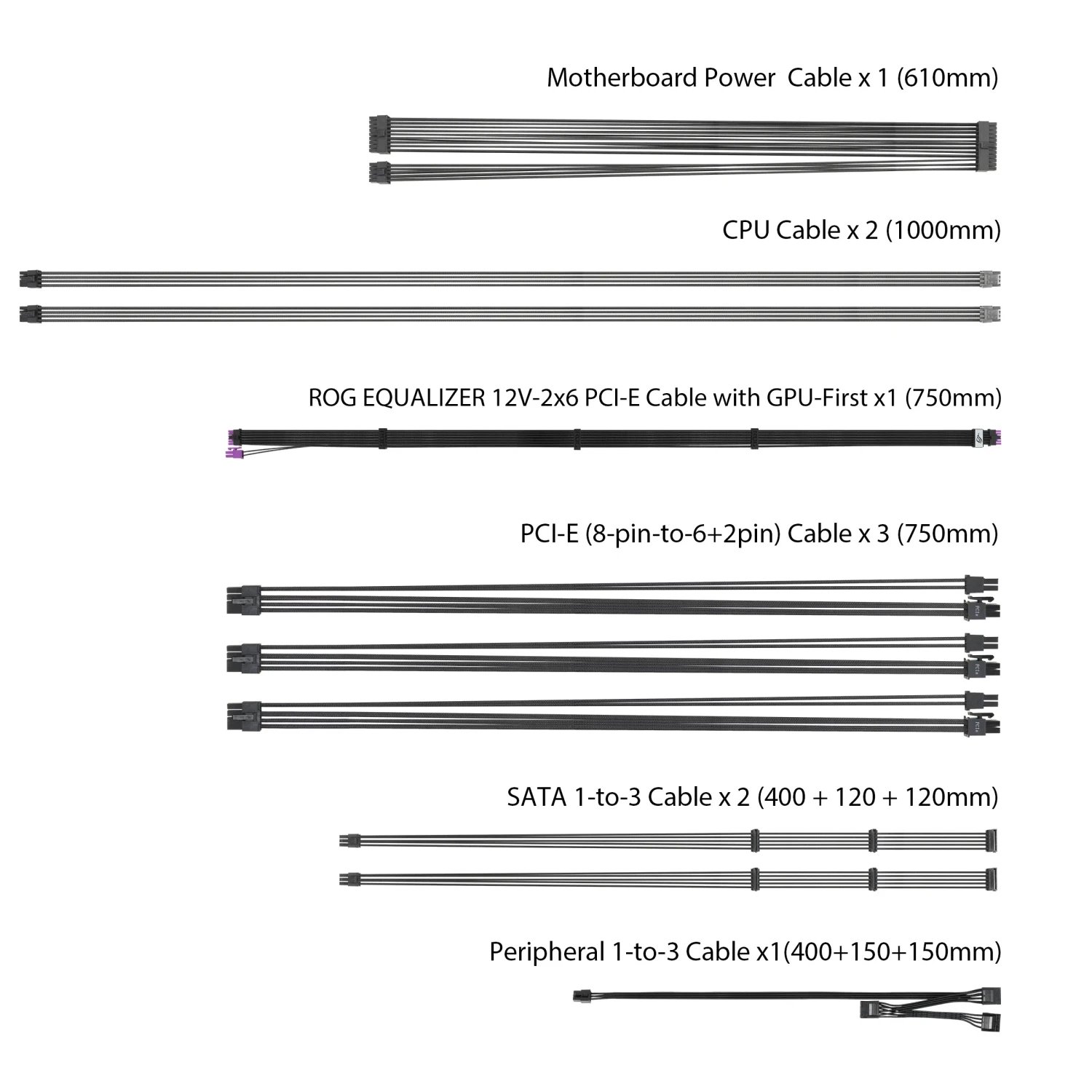

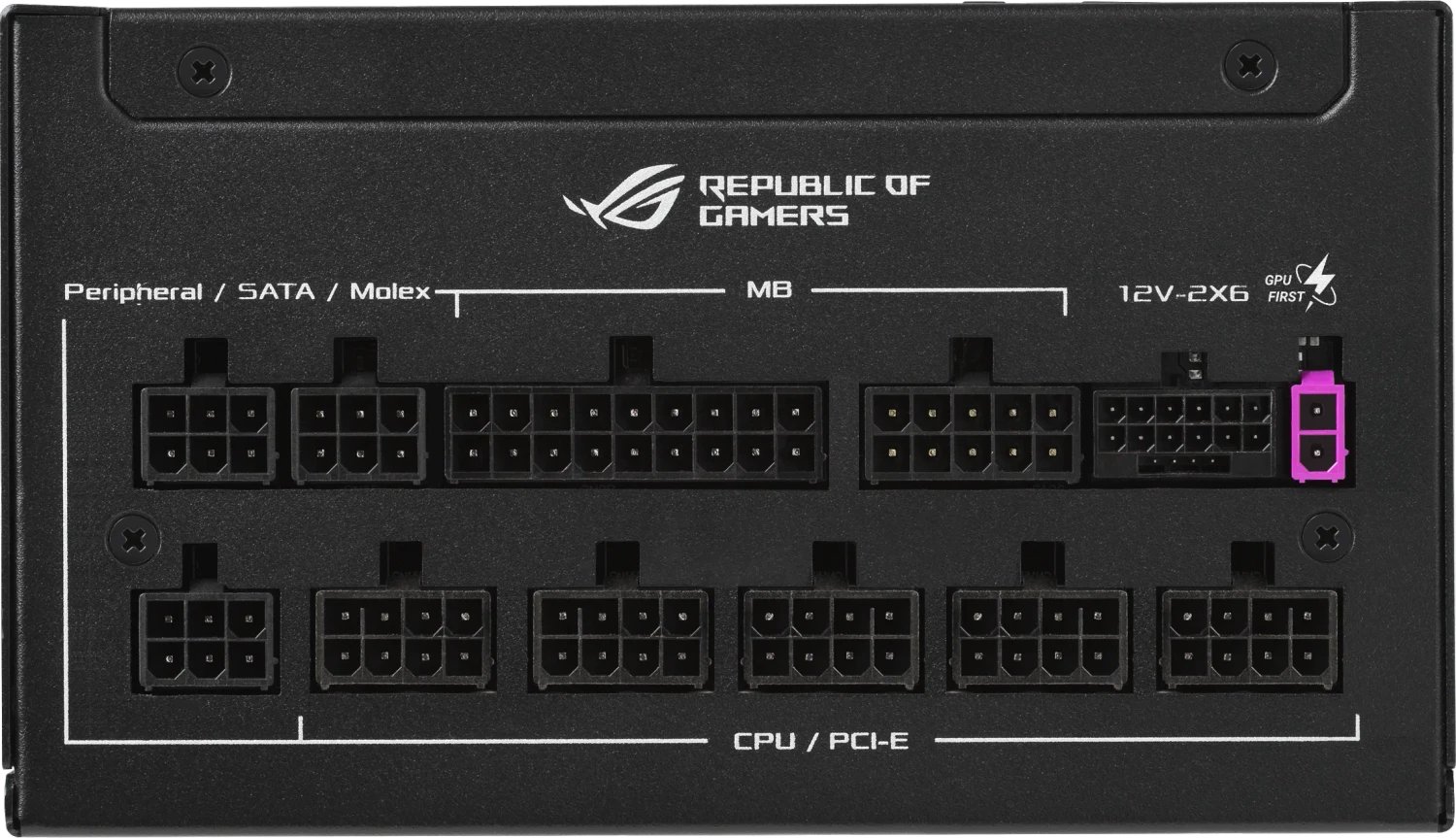

Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 6× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 2× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 89.73% |
|---|---|
| 115V · cybenetics | 90.13% |
| 230V · cybenetics | 91.56% |
Noise
| 115V · cybenetics | 23.35 dB(A) |
|---|---|
| 230V · cybenetics | 23.29 dB(A) |
Fan
| Fan size | 135 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
