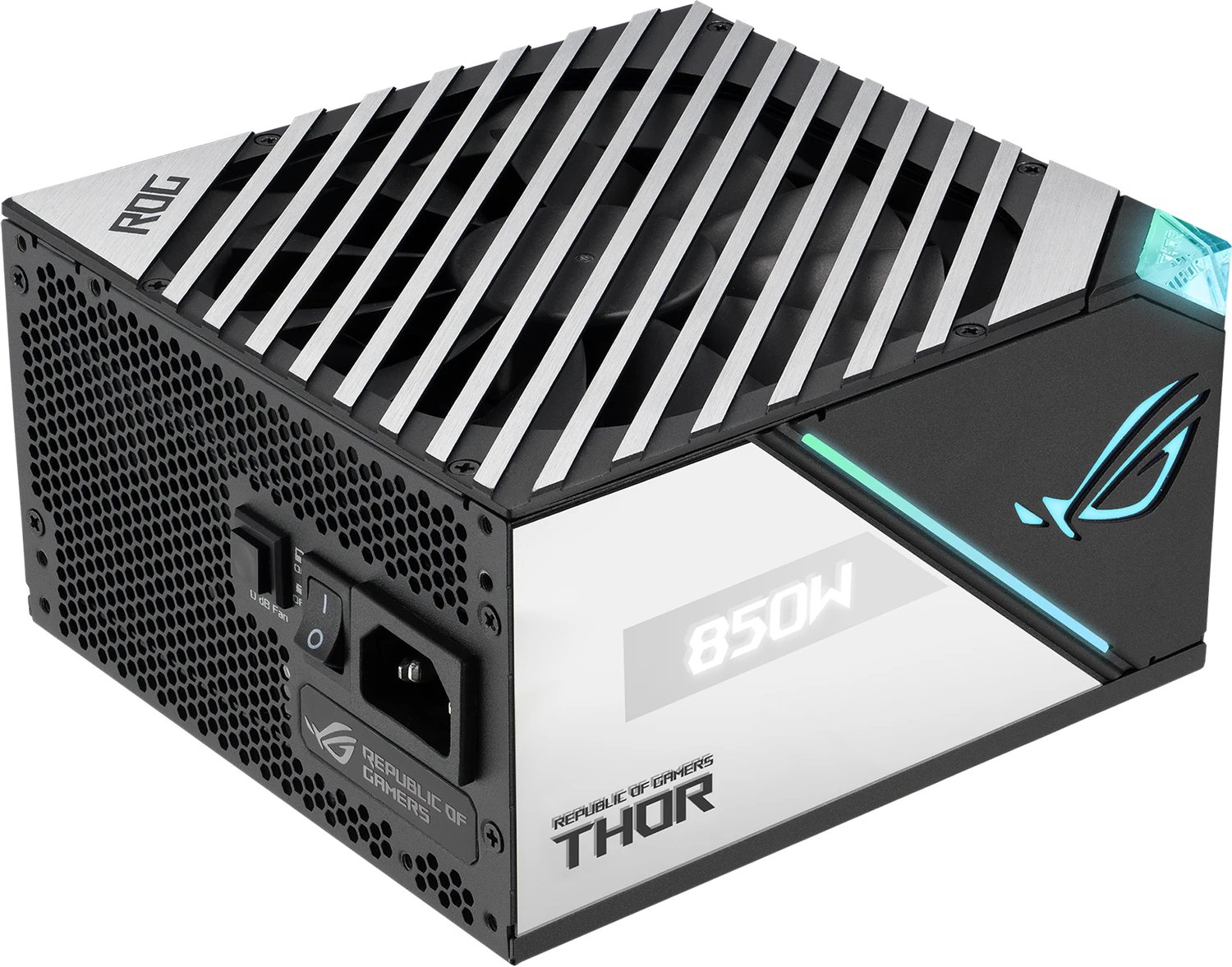

Asus ROG Thor Platinum II 850P2
850 W · 80 PLUS Platinum · ATX 2.4
Specifications
| Wattage | 850 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Platinum |
| ATX Standard | ATX 2.4 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 10 years |
| Graphics card connector | 1× 12VHPWR (via adapter) |
| Other Features | ErP Lot 6 3-pin RGB interface (+5V/DATA/GND) Display (OLED) Supports Haswell C6/C7 low-power states Semi-passive mode switchable |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 190 mm |
| Height | 86 mm |
| Weight | 1.87 kg |
| Color | Stainless steel/Black |

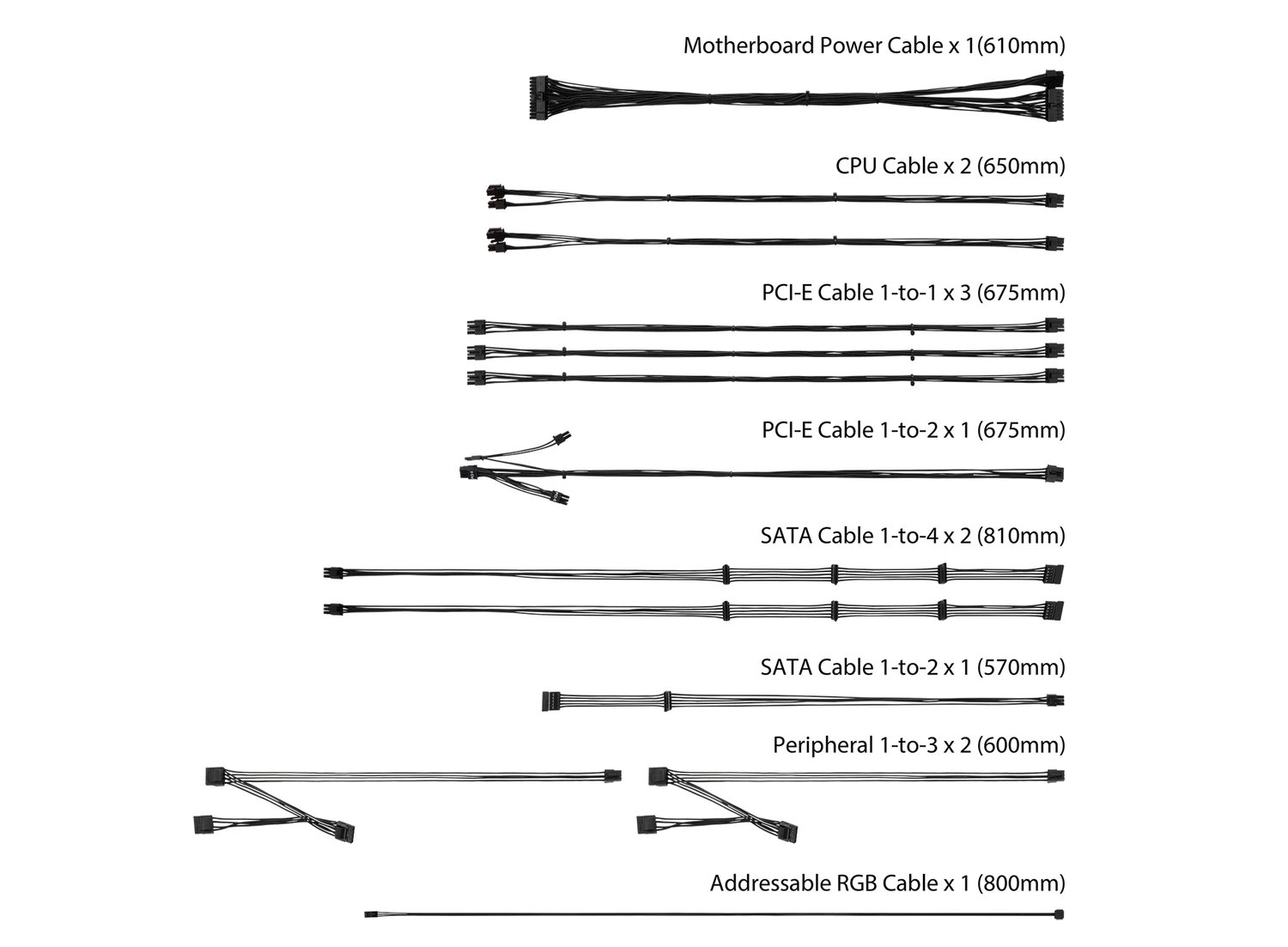

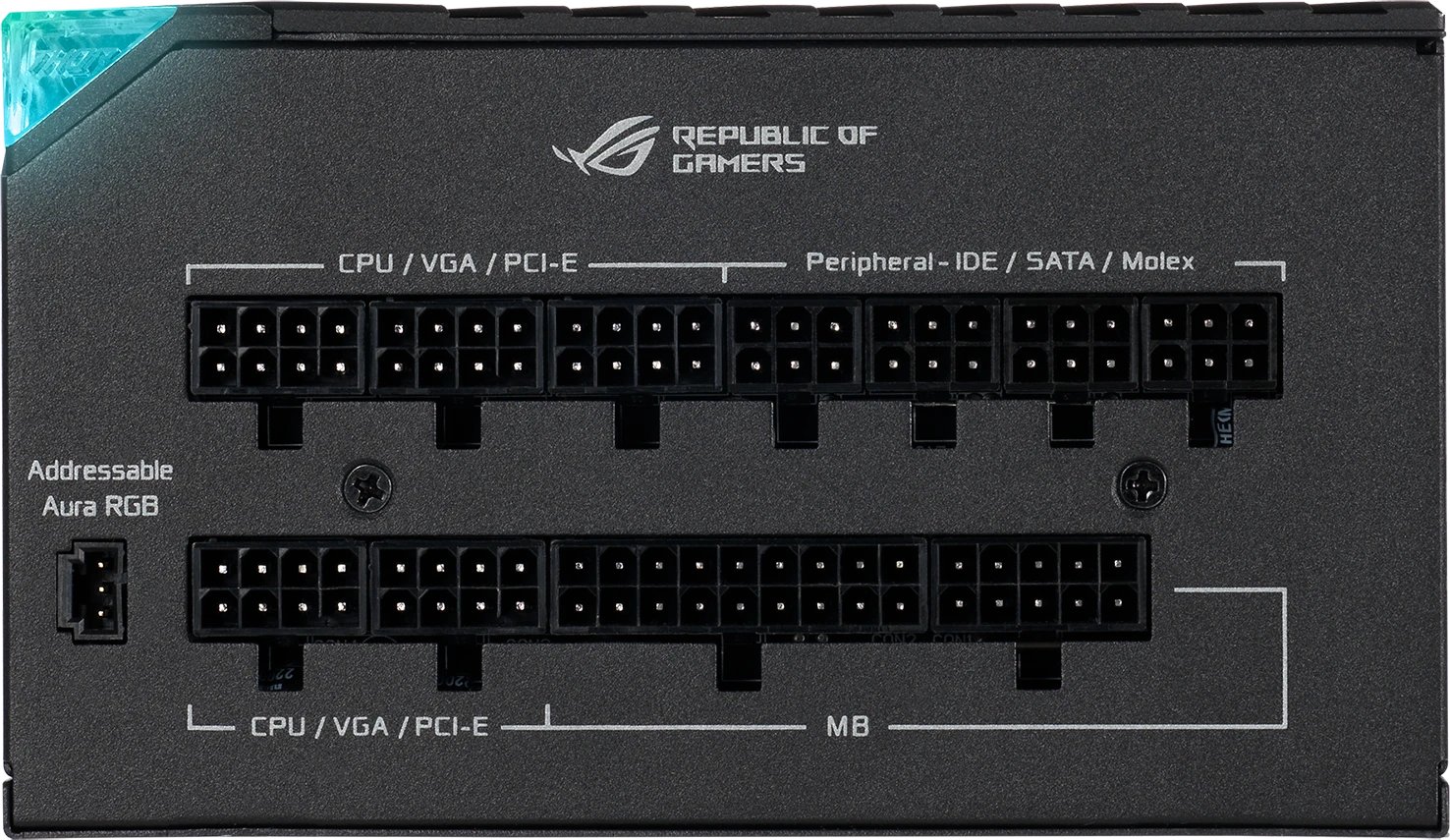

Cables and Connectors
| IDE / Molex | 6× |
|---|---|
| SATA | 10× |
| PCIe 6+2-pin | 3× |
| CPU 4+4-pin (ATX12V) | 2× |
| RGB header (3-pin) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 91.09% |
|---|
Fan
| Fan size | 135 mm |
|---|---|
| Operating mode | Semi-passive (stops at low load) |
