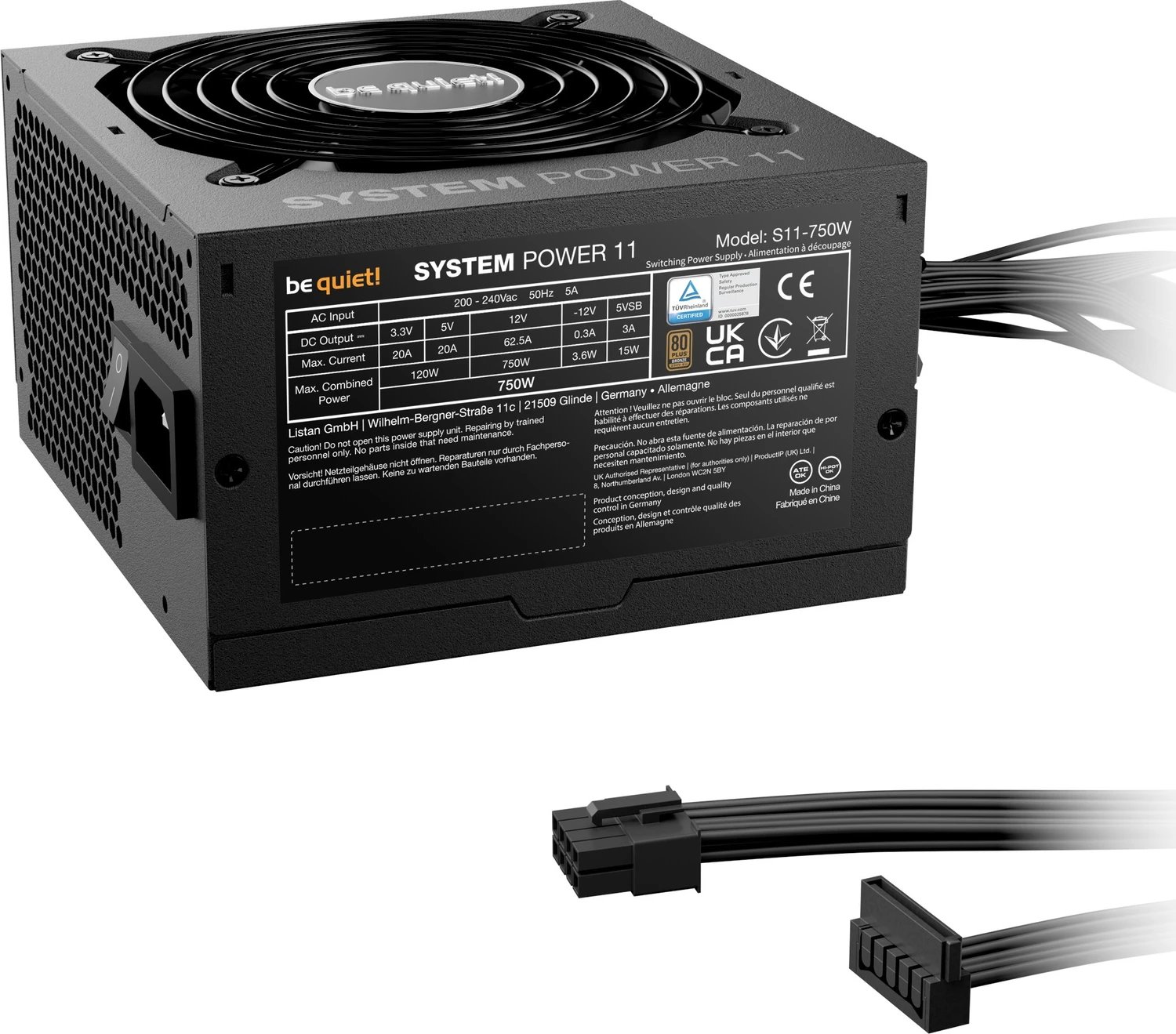

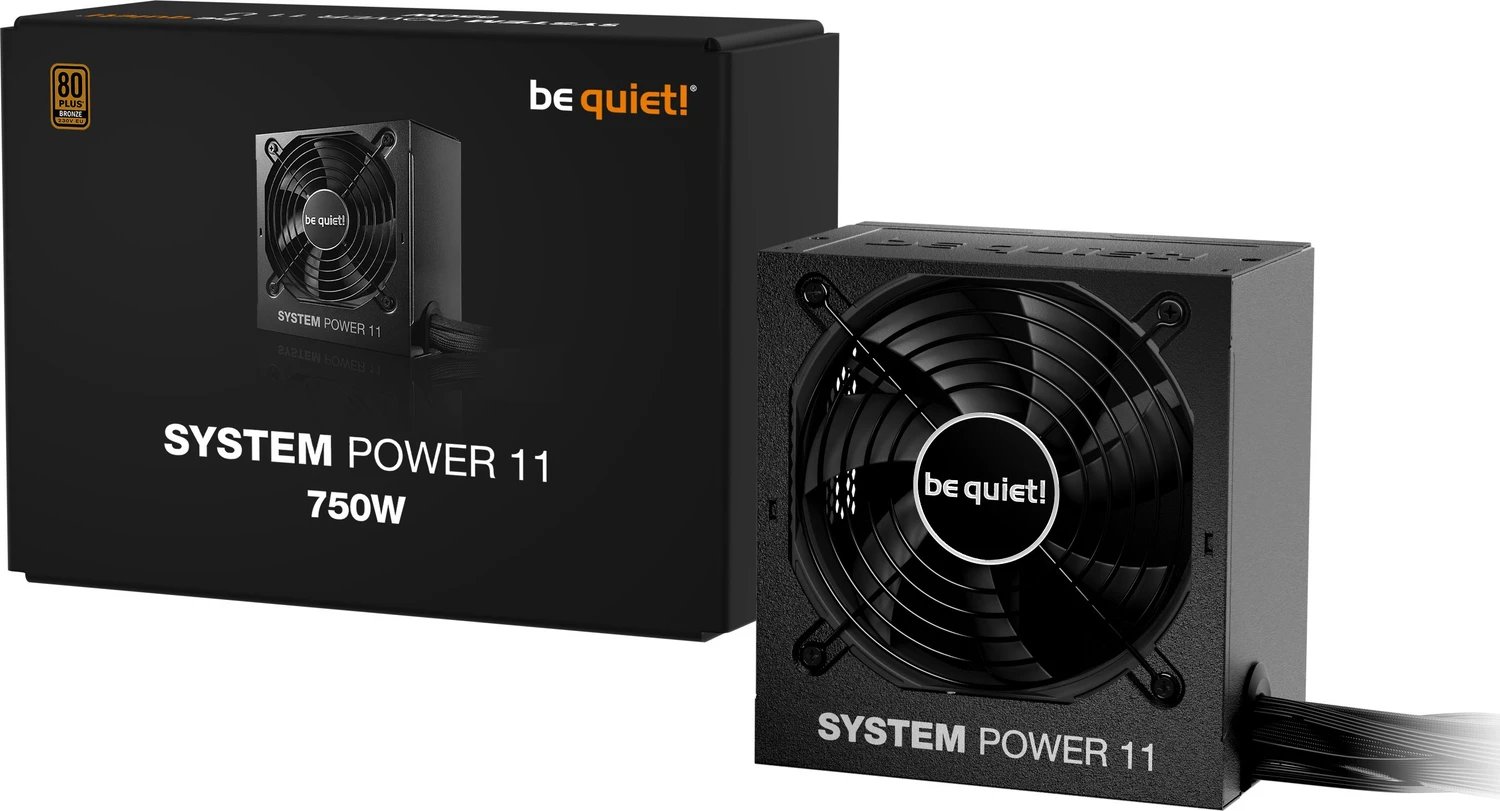

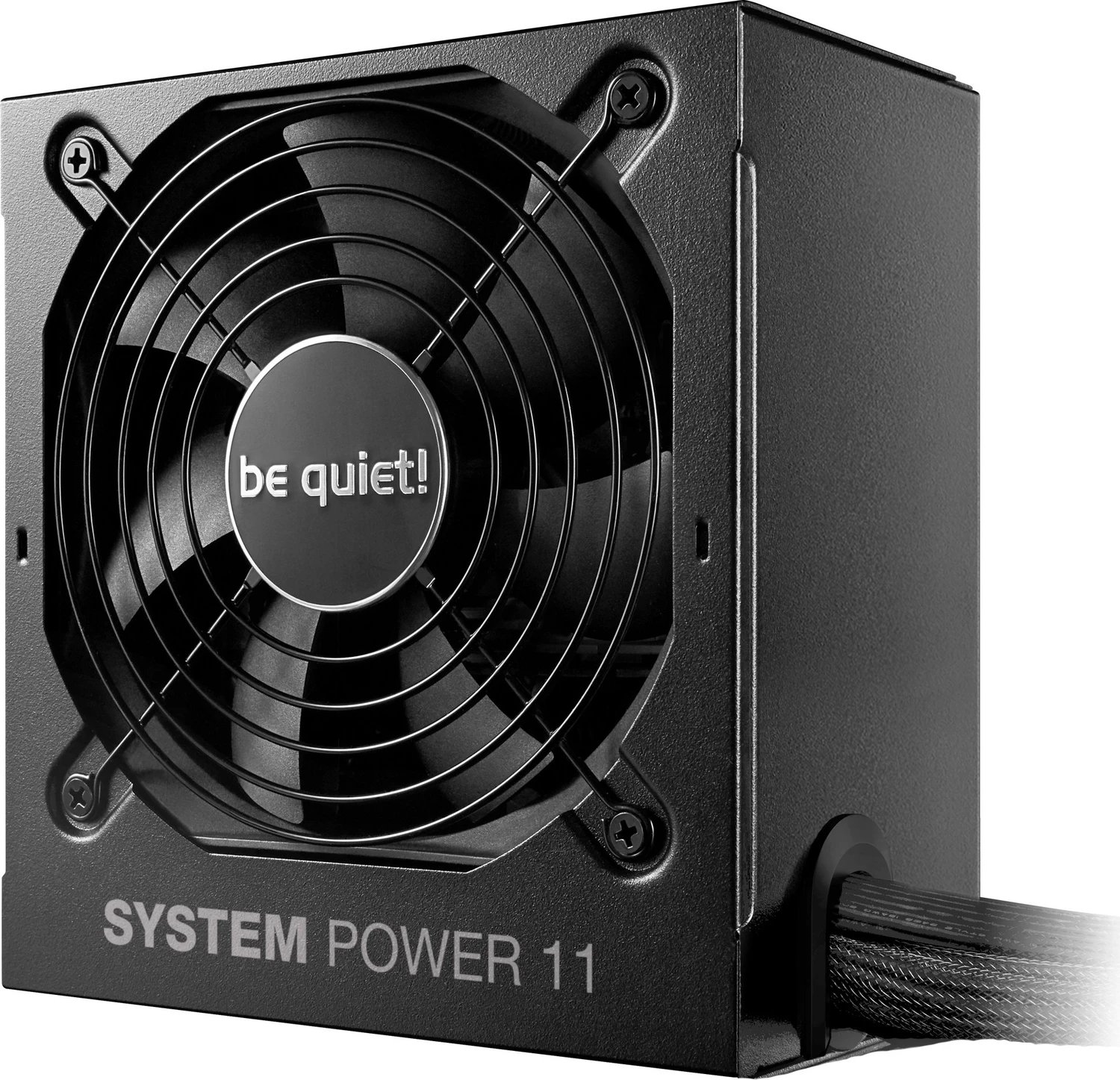

be quiet! System Power 11
750 W · 80 PLUS Bronze · ATX 3.1
Specifications
| Wattage | 750 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Bronze |
| ATX Standard | ATX 3.1 |
| Cable design | Non-modular |
| Form Factor | ATX PS/2 |
| Warranty | 5 years |
| Graphics card connector | 1× 12V-2x6 (native) |
| Other Features | ErP Lot 6 Supports Haswell C6/C7 low-power states |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.04 kg |
| Color | Black |
Cables and Connectors
| IDE / Molex | 1× |
|---|---|
| SATA | 6× |
| EPS12V 8-pin | 1× |
| PCIe 6+2-pin | 3× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| · 80plus_official | 82.3% |
|---|
Fan
| Fan size | 120 mm |
|---|---|
| Operating mode | Always on |
