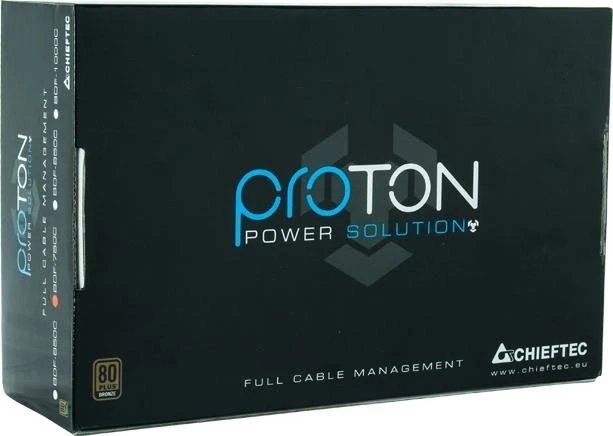

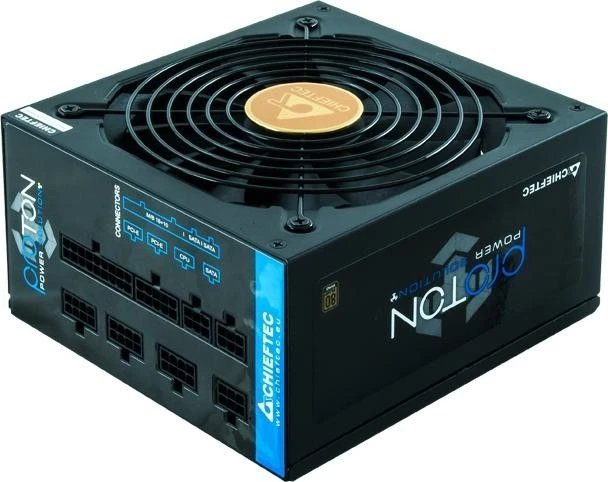

Chieftec Proton BDF-650C
650 W · 80 PLUS Bronze · ATX 2.3
Specifications
| Wattage | 650 W |
|---|---|
| 80 PLUS Certification | 80 PLUS Bronze |
| ATX Standard | ATX 2.3 |
| Cable design | Fully modular |
| Form Factor | ATX PS/2 |
| Warranty | 2 years |
| Other Features | ErP Lot 6 |
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder
Analyze in PC Builder
Features
| PFC | ✓ Yes (Active) |
|---|
Design
| Width | 150 mm |
|---|---|
| Depth | 160 mm |
| Height | 86 mm |
| Color | Black |
Cables and Connectors
| IDE / Molex | 3× |
|---|---|
| SATA | 6× |
| Floppy | 1× |
| PCIe 6+2-pin | 4× |
| CPU 4+4-pin (ATX12V) | 1× |
| Motherboard 24-pin | 1× |
Efficiency
| 115V · 80plus_official | 85% |
|---|
Fan
| Fan size | 140 mm |
|---|---|
| Operating mode | Always on |
