Chieftec VEGA M Series PPG-1000-C

1000 W · 80 PLUS Gold · ATX 3.1

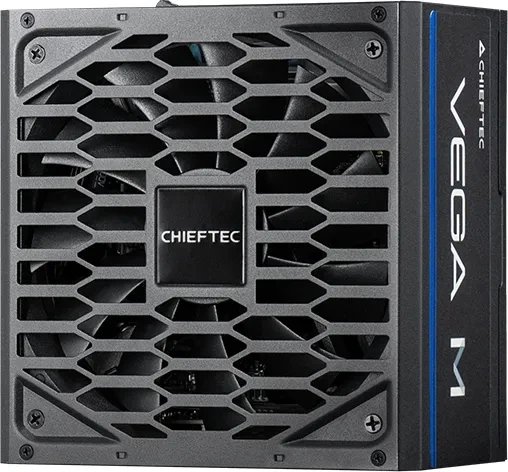

Chieftec VEGA M Series PPG-1000-C product image

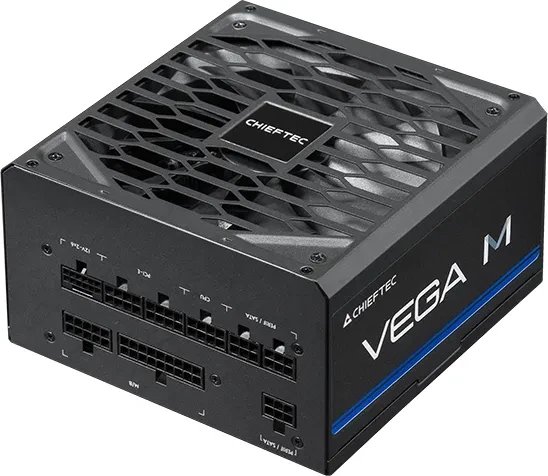

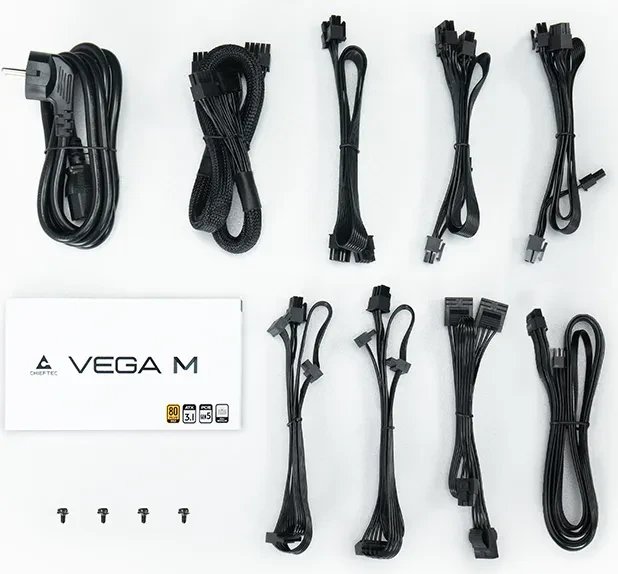

Chieftec VEGA M Series PPG-1000-C product image 1Chieftec VEGA M Series PPG-1000-C product image 2Chieftec VEGA M Series PPG-1000-C product image 3

Specifications

Wattage1000 W
80 PLUS Certification80 PLUS Gold
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
ColorBlack
Dimensions (W×D×H)150 × 150 × 85 mm
PFCActive
Warranty5 years
Graphics card connector1× 12V-2x6 (native)
FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Cables and Connectors

IDE / Molex3×
SATA6×
EPS12V 8-pin1×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

115V · 80plus_official87.38%

Fan

Fan size135 mm
Operating modeAlways on
