Chieftec VEGA M Series PPG-850-C

850 W · 80 PLUS Gold · ATX 3.1

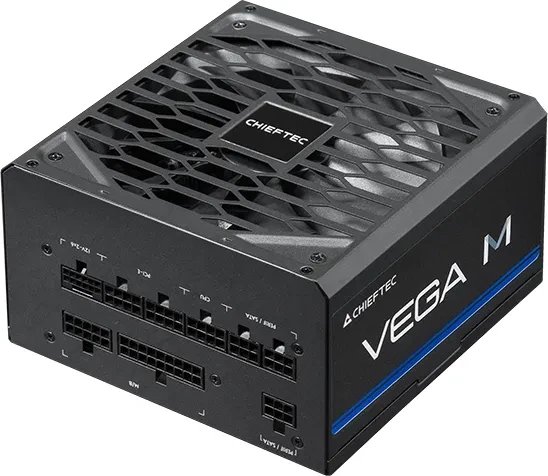

Chieftec VEGA M Series PPG-850-C product image

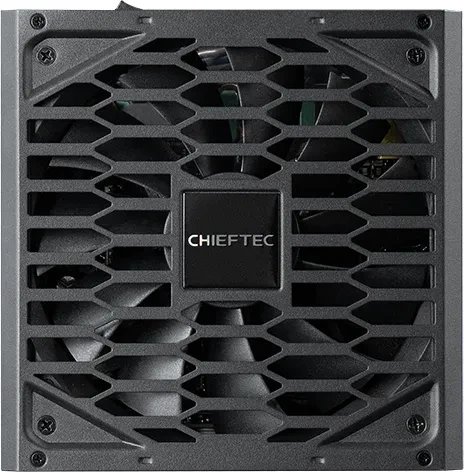

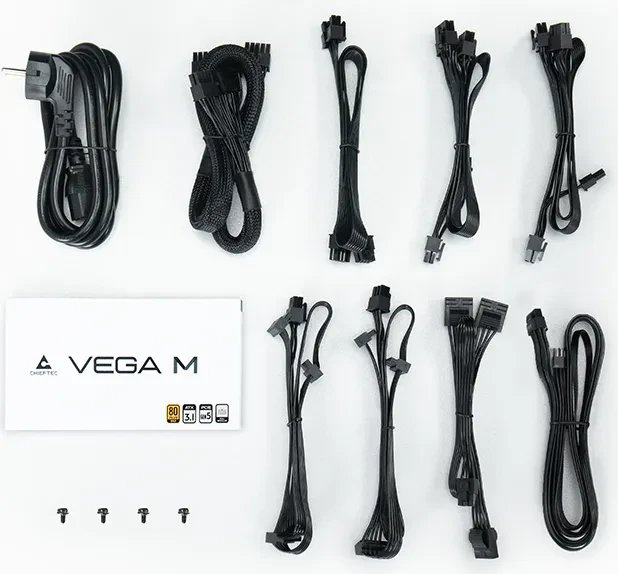

Chieftec VEGA M Series PPG-850-C product image 1Chieftec VEGA M Series PPG-850-C product image 2Chieftec VEGA M Series PPG-850-C product image 3

Specifications

Wattage850 W
80 PLUS Certification80 PLUS Gold
ATX StandardATX 3.1
Cable designFully modular
Form FactorATX PS/2
Warranty5 years
Graphics card connector1× 12V-2x6 (native)
Other FeaturesErP Lot 6
Is this part compatible with your build?Analyze part compatibility together with PC Analysis.
Analyze in PC Builder

Features

PFC✓ Yes (Active)

Design

Width150 mm
Depth150 mm
Height85 mm
Weight2.07 kg
ColorBlack

Cables and Connectors

IDE / Molex3×
SATA6×
EPS12V 8-pin1×
PCIe 6+2-pin4×
CPU 4+4-pin (ATX12V)1×
Motherboard 24-pin1×

Efficiency

115V · cybenetics88.82%
230V · cybenetics90.6%

Noise

115V · cybenetics24.96 dB(A)
230V · cybenetics25.44 dB(A)

Fan

Fan size135 mm
Operating modeAlways on
